FUEL TANK

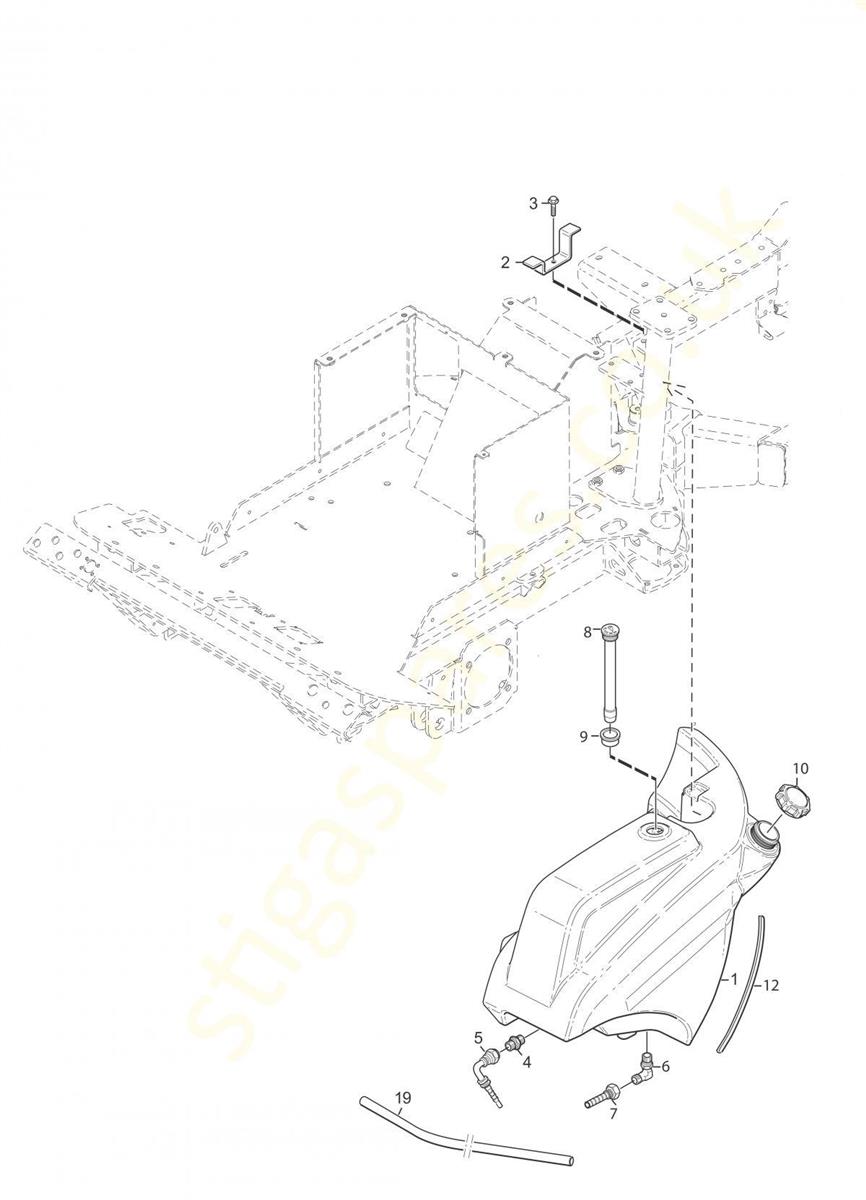

FUEL TANK assembly details for Stiga Stiga TITAN 540D 13-7454-11 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0656-01	FUEL TANK	£688.44	Add to
002	1135-2522-01	FUEL TANK CLAMP	£30.26	Add to
003	1134-4242-01	SPACER WASHER	£4.78	Add to
004	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
005	1135-2796-01	TUBE COUPLING	£15.16	Add to
006	112000402/0	90° UNF JIC M/M TUBE CONNECTION	£13.37	Add to
007	1135-3670-01	TUBE COUPLING (OBSOLETE)	N/A
008	1135-2526-01	FUEL LEVEL INDICATOR	£156.99	Add to
009	1135-2528-01	RUBBER SLEEVE	£9.23	Add to
010	1135-3381-01	FUEL TANK CAP	£68.42	Add to
012	1135-3768-02	SEALING STRIP (OBSOLETE)	N/A
019	9505-0002-01	FUEL HOSE (PER METER)	£10.78	Add to
019	9505-0002-02	SP (OBSOLETE)	N/A
019	9505-0002-03	Fuel line Quantity per meter	N/A	POA
020	9578-0023-02	HOSE CLAMP	£5.73	Add to
