Foot Controls

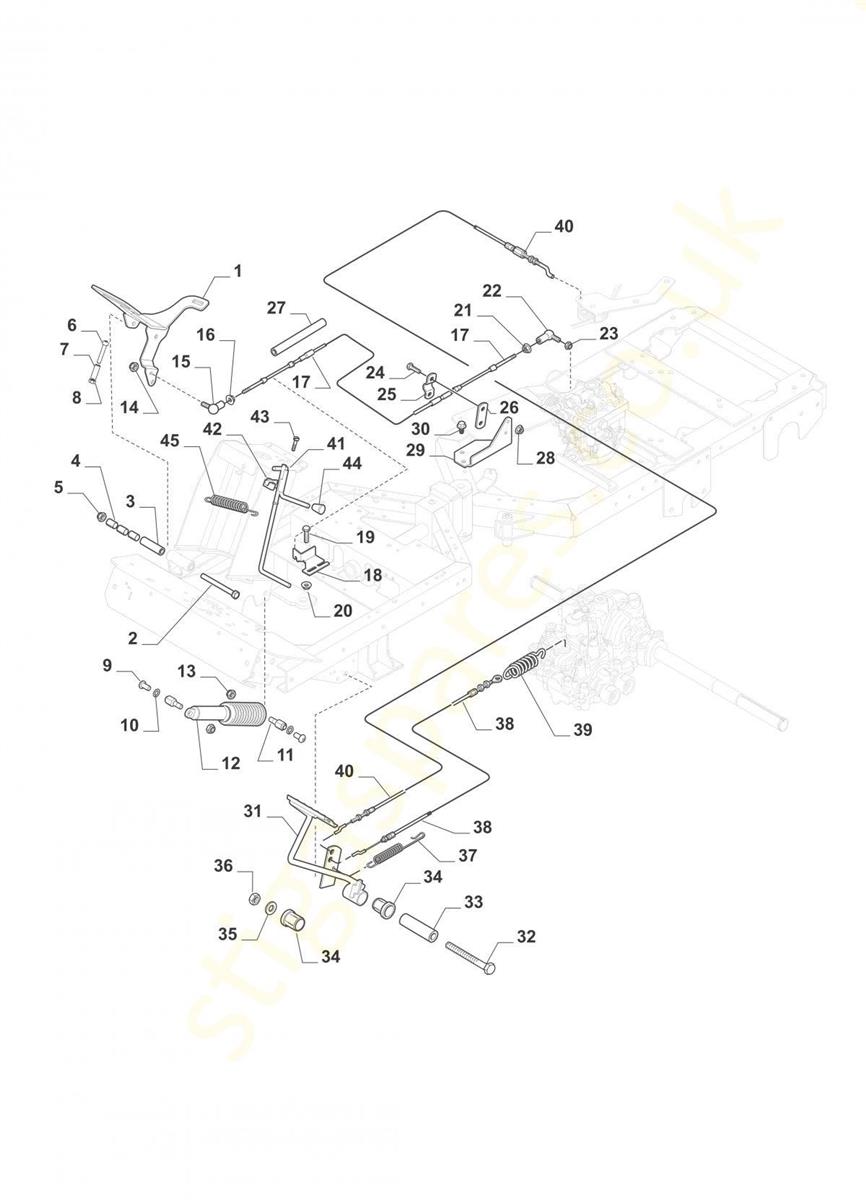

Foot Controls assembly details for Stiga Stiga Park Pro 340 IX 13-6451-11 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387500001/1FWR/RWD DRIVE PEDAL£87.50 Add to
002112692050/0HEX-HEAD SCREW£1.91 Add to
003137160000/0SPACER£22.08 Add to
004137040600/0BUSH£3.83 Add to
005112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
006112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
0071134-1565-14SPACER£2.18 Add to
008112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
009112760600/0SCREW M8 x 16£1.19 Add to
010112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
011137510302/0PIN£5.73 Add to
0121134-4187-01DAMPER£168.19 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0159570-0001-00ELBOW LINK£18.90 Add to
0169739-0531-22NUT M5£2.47 Add to
017187000210/0FORWARD/REVERSE CABLE£88.85 Add to
018337546551/0CABLE PLATE£10.91 Add to
019112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
020112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0219739-0531-22NUT M5£2.47 Add to
0229570-0001-00ELBOW LINK£18.90 Add to
023112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
024112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
0251134-0266-00ATTACHING CLAMP£7.36 Add to
0261134-0267-00CLAMP PLATE£7.11 Add to
027137869111/0SPACER TUBE£8.32 Add to
0289739-0531-22NUT M5£2.47 Add to
029387773507/0REAR CABLE FIX BRACKET£32.29 Add to
0301134-4242-01SPACER WASHER£4.78 Add to
031387500003/0BRAKE PEDAL£68.42 Add to
0329997-1070-12SCREW M6S (M10 X 70)£3.81 Add to
0331134-5677-02SPACER£11.04 Add to
0341134-0068-00BUSH£4.78 Add to
0359699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
0369739-1031-22NUT M10£2.32 Add to
0374231-0013-00SPRING£8.87 Add to
038137065319/0BRAKE CABLE£37.76 Add to
0391134-5989-01SPRING£10.65 Add to
0401134-5815-02DRIVE CABLE£39.61 Add to
041387000301/0PARKING BRAKE ROD£34.35 Add to
0421134-4002-01BRAKE ROD ATTACHMENT£12.27 Add to
043112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0441134-2786-01PLASTIC KNOB£6.42 Add to
0451131-1497-01BRAKE SPRING£10.50 Add to
