Foot controls

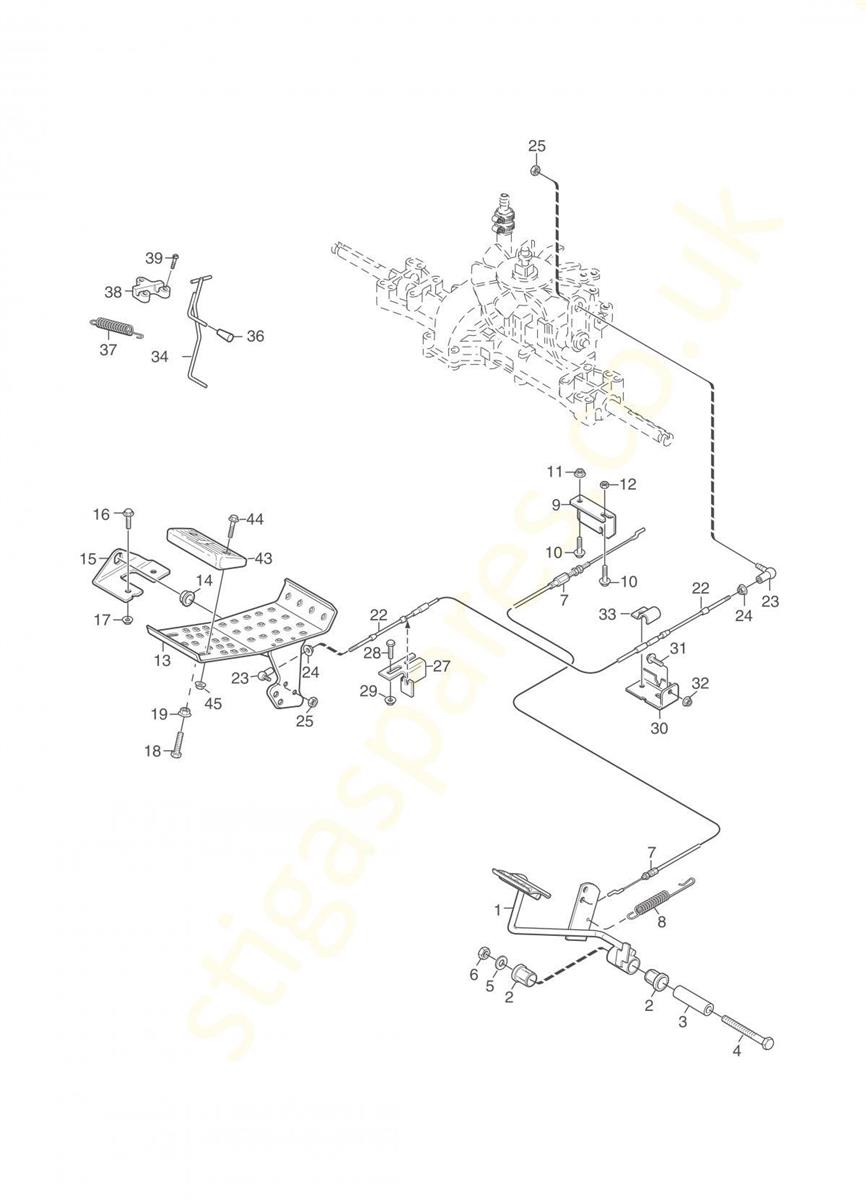

Foot controls assembly details for Stiga Stiga Park 540 X 2F6230625 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-5655-01BRAKE/CLUTCH PEDAL£55.44 Add to
0021134-9024-01PLASTIC BUSH (4 PCS)£18.70 Add to
0031134-5677-02SPACER£11.20 Add to
0049997-1070-12SCREW M6S (M10 X 70)£4.52 Add to
0059699-0030-02WASHER (10 X 26 X 2)£2.98 Add to
0069739-1031-22NUT M10£3.15 Add to
007187000211/1BRAKE CABLE£34.02 Add to
0084231-0013-00SPRING£9.20 Add to
0091134-6467-01CABLE HOLDER£7.06 Add to
0109959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0111137-0155-01SPACER£5.17 Add to
012112154220/0SELF-LOCK NUT M8£2.90 Add to
0131134-6353-01IMPLEMENT PEDAL£41.33 Add to
0141134-6313-01BEARING£7.81 Add to
0151134-2700-01BRACKET£17.14 Add to
0169959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0171137-0155-01SPACER£5.17 Add to
0189997-0835-16SCREW M6S 8 x 35£3.15 Add to
0191137-0155-01SPACER£5.17 Add to
0221134-2766-05SPEED CONTROL CABLE£71.82 Add to
0239570-0001-00ELBOW LINK£18.48 Add to
0249739-0531-22NUT M5£3.28 Add to
025112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.90 Add to
0271134-6317-01WIRE BRACKET£9.07 Add to
028112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
029112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0301134-3395-01ATTACHMENT BRACKET£28.98 Add to
0319959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0321137-0155-01SPACER£5.17 Add to
0331134-2021-01CLAMP£7.81 Add to
0341134-5353-01BRAKE ROD£28.38 Add to
0361134-2786-01PLASTIC KNOB£6.93 Add to
0371131-1497-01BRAKE SPRING£10.71 Add to
0381134-4002-01BRAKE ROD ATTACHMENT£12.35 Add to
039112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.90 Add to
0431134-6340-02FOOT REST£8.32 Add to
044112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
045112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
