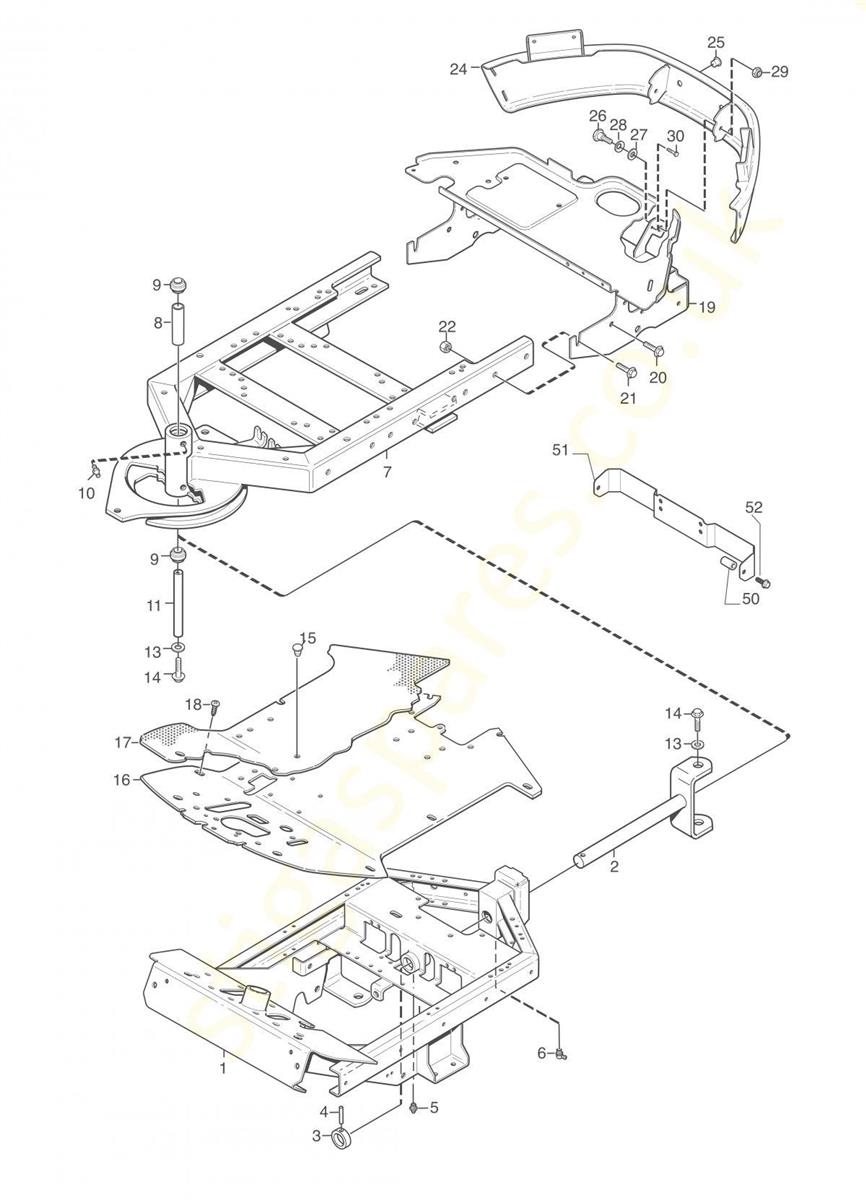

Frame assembly details for Stiga Stiga Park 540 PX 2F6230611 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001387800013/0FRONT FRAME ASSEMBLY [4WD]£1,012.89 Add to
0021137-1119-02CLEVIS FORK£158.76 Add to
0031134-0031-00PIVOT SHAFT STOP£24.07 Add to
0049595-0262-00LOCATING PIN£2.90 Add to
005112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0069501-0504-01GREASE NIPPLE M6£4.41 Add to
0071134-6466-02REAR FRAME ASSEMBLY£454.86 Add to
0081134-5705-01SPACER£18.90 Add to
0099547-0001-00BEARING£24.07 Add to
010112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.90 Add to
0111134-5988-01CENTRE SHAFT£22.05 Add to
013112521360/0WASHER M10 10.5 x 20 x 2£2.90 Add to
0149959-1025-16SCREW M6SF M10 x 25 TL£3.78 Add to
0159403-0048-70COVER PLUG£9.95 Add to
0161134-6586-01FLOOR PLATE£158.76 Add to
017114369182/0Dekal LabelN/A POA
0189893-0616-16SCREW M6 x 16£3.28 Add to
0191134-5944-01TANK SHELF ASSEMBLY£259.56 Add to
0201134-4242-01SPACER WASHER£5.42 Add to
0219959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0221137-0155-01SPACER£5.17 Add to
024387457003/0REAR BUMPER£215.46 Add to
0251134-4100-01PLUG£5.42 Add to
0261134-0240-00SCREW£9.45 Add to
0271134-4242-01SPACER WASHER£5.42 Add to
0289665-0002-00BOWL WASHER£3.42 Add to
029112154220/0SELF-LOCK NUT M8£2.90 Add to
030112735654/0SELF-TAPPING SCREW M5 x 16£3.53 Add to
0501134-1565-01SPACER£14.49 Add to
051387602503/0HEAT PROTECTION GUARD£51.66 Add to
0529945-0825-16SCREW M6SF M8 x 25£3.15 Add to
