Transmission (3)

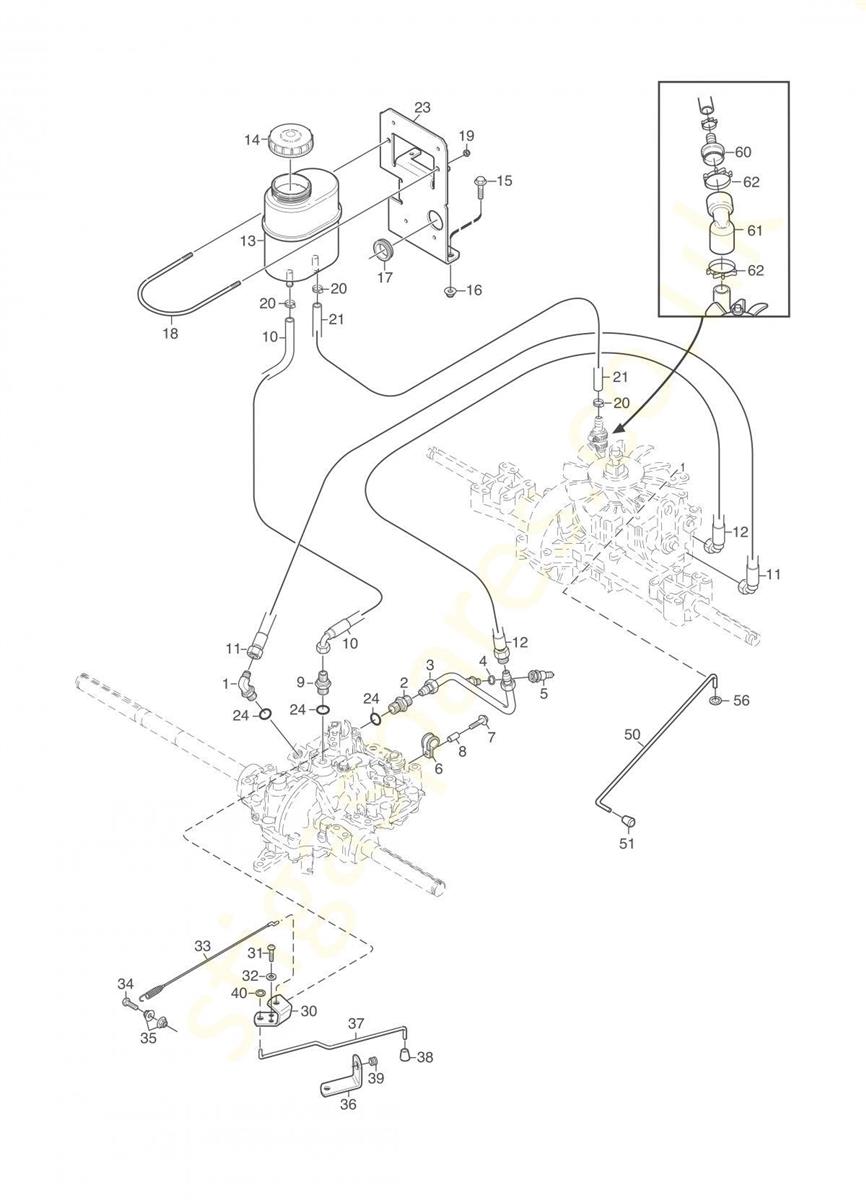

Transmission (3) assembly details for Stiga Stiga Park 540 DPX 2F6236281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6044-01HYDRAULIC ANGLE COUPLING (3/4 X 9/16MM)£45.52 Add to
0021134-5875-01HYDRAULIC COUPLING£71.14 Add to
0031134-6039-01HYDRAULIC PIPE ASSEMBLY£197.87 Add to
0041134-4948-01SEAL WASHER 1/4"£2.59 Add to
0051134-6042-01QUICK COUPLING-MALE 1/4"£32.08 Add to
0069578-0028-01TUBE CLAMP£9.31 Add to
0079959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
0081134-1565-01SPACER£14.58 Add to
0091134-5809-01HYDRAULIC COUPLING£17.86 Add to
0101137-0215-04HYDRAULIC HOSE L=1400MM£82.81 Add to
0111137-0195-01HYDRAULIC HOSE L=1275mm£66.59 Add to
0121137-0212-01HYDRAULIC HOSE L=1210mm£86.13 Add to
0131134-6011-01HYDRAULIC OIL TANK£142.40 Add to
0141137-0272-01TANK CAP£34.35 Add to
0159959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
0161137-0155-01SPACER£4.52 Add to
0171134-3203-01GROMMET£5.60 Add to
0181134-5943-01TANK LOOP£7.78 Add to
019112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0209578-0036-01HOSE CLAMP£3.41 Add to
0211134-2779-02Slang Tube L = mmN/A POA
0229578-0023-04HOSE CLAMP£5.32 Add to
0231134-5941-01TANK BRACKET£45.90 Add to
0249404-0029-01O RING 16.36 x 2.21£5.46 Add to
0301134-6162-01BRACKET£12.22 Add to
0319939-0612-16SCREW M6 x 12£2.32 Add to
032112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
0331134-6163-01CABLE£22.52 Add to
034119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
0351137-0155-01SPACER£4.52 Add to
0361134-6084-01CONTROL BRACKET£10.09 Add to
0371134-6083-01CONTROL ROD£7.27 Add to
0381134-4014-01KNOB£5.19 Add to
0391134-2790-01RUBBER GROMMET£6.95 Add to
040112604896/0STARLOCK WASHER D=6£2.06 Add to
0501134-4015-01PULL ROD£11.59 Add to
0511134-4014-01KNOB£5.19 Add to
056112604896/0STARLOCK WASHER D=6£2.06 Add to
0601134-6051-01HOSE NIPPLE£18.95 Add to
0611134-6050-01ELBOW£21.66 Add to
0629578-0023-06HOSE CLAMP£5.45 Add to
