Steering

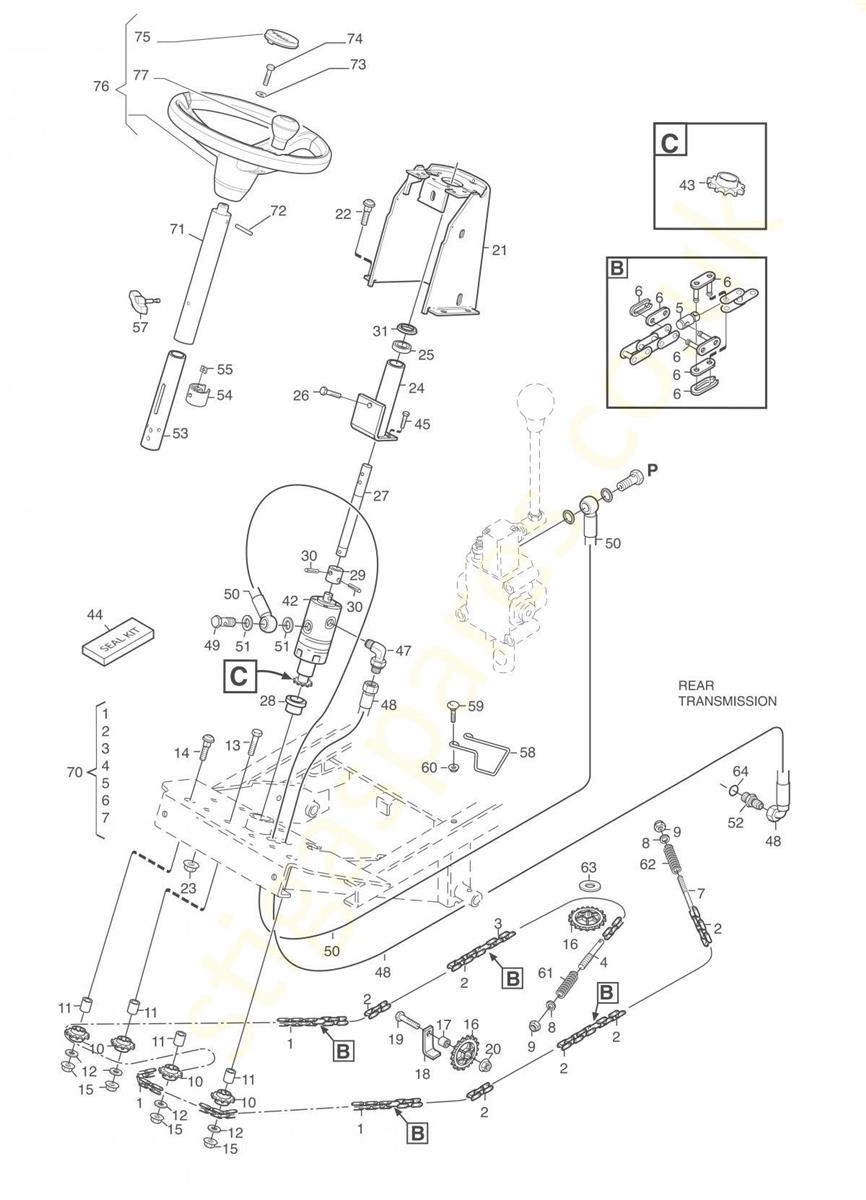

Steering assembly details for Stiga Stiga Park 540 DPX 2F6236281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187000351/0	STEERING CHAIN 83M ELITE PC-PCH W/SERVO	£35.71	Add to
002	187000352/0	STEERING CHAIN 41M ELITE FM W/SERVO	£28.90	Add to
003	1134-6374-04	CHAIN (45 LINKS)	£16.10	Add to
004	1134-3550-01	END NIPPLE [L=110]	£18.53	Add to
005	1134-3565-01	CONNECTION NIPPLE	£16.17	Add to
006	187060100/0	STEERING CHAIN LINK	£6.01	Add to
007	1134-3550-02	END NIPPLE [L=90]	£18.27	Add to
008	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
009	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
010	1134-2816-01	SPROCKET	£10.77	Add to
011	1134-0041-02	BUSH	£10.09	Add to
012	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
013	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
014	9897-1040-12	SCREW M10 x 40	£3.49	Add to
015	9739-1031-22	NUT M10	£2.32	Add to
016	1134-3547-01	SPROCKET	£12.96	Add to
017	1134-0041-01	BUSH	£9.41	Add to
018	1134-3022-01	BRACKET	£62.97	Add to
019	112794300/0	SCREW TE M10 x 30	£1.91	Add to
020	9739-1031-22	NUT M10	£2.32	Add to
021	387785243/0	STEERING COLUMN COVER	£102.06	Add to
022	9897-0820-16	SCREW M8 x 20	£2.32	Add to
023	1137-0155-01	SPACER	£4.52	Add to
024	1137-0044-01	STEERING COLUMN ASSEMBLY	£77.55	Add to
025	9549-0017-00	BALL BEARING	£12.14	Add to
026	1134-4242-01	SPACER WASHER	£4.78	Add to
027	1137-0045-01	STEERING ROD	£54.04	Add to
028	1134-4114-01	BUSH	£19.93	Add to
029	1134-4118-01	COUPLING	£22.49	Add to
030	9595-0256-01	LOCATING PIN	£2.47	Add to
031	9695-0011-00	WASHER 16 x 22 x 1	£2.47	Add to
042	1137-0446-01	Momentförstarkare Booster Incl pos 43	£729.67	Add to
043	1139-2106-01	PINION (STEERING BOOSTER)	£148.89	Add to
044	1139-2074-01	SEAL KIT (STEERING BOOSTER) (OBSOLETE)	N/A
045	9939-0612-16	SCREW M6 x 12	£2.32	Add to
047	1134-7073-01	HYDRAULIC COUPLING 90°	£34.35	Add to
048	1137-0195-02	HYDRAULIC HOSE L=1740mm	£97.03	Add to
049	1134-6323-01	BANJO BOLT 3/8"	£10.50	Add to
050	1137-0216-01	HYDRAULIC HOSE L=2050mm	£105.21	Add to
051	1134-4948-02	SEAL WASHER 3/8"	£2.06	Add to
052	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
053	387520119/0	LOWER STEERING COLUMN	£74.87	Add to
054	1134-5177-01	SLIDE COLLAR	£13.64	Add to
055	9710-0631-12	SQUARE NUT	£3.55	Add to
057	337394201/0	WING NUT	£13.64	Add to
058	137295200/0	CENTRAL HOSE FIXING GUIDE	£20.58	Add to
059	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
060	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
061	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
062	1134-3817-02	COMPRESSION SPRING	£12.68	Add to
063	337670201/0	WASHER	£3.64	Add to
064	9404-0028-01	O RING 11.89 x 1.98	£4.78	Add to
070	1134-6379-02	Fz K/K, L/K Smst Chain Assy Incl pos - 6	£102.93	Add to
071	387520101/1	UPPER STEERING COLUMN	£95.67	Add to
072	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
073	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
074	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
075	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
076	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
077	187593701/0	STEERING WHEEL KNOB	£48.11	Add to
