Seat

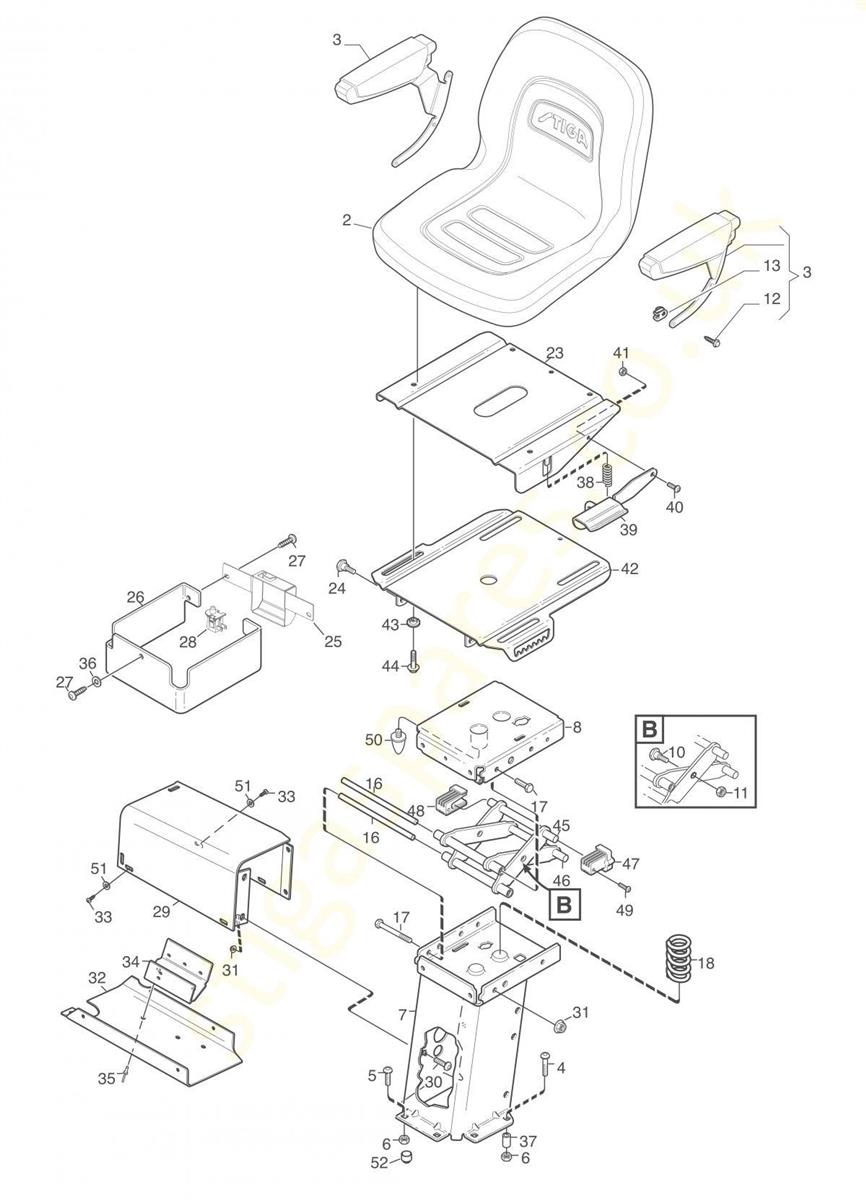

Seat assembly details for Stiga Stiga Park 540 DPX 2F6236281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	137722602/0	SEAT [PARK]	£298.27	Add to
003	387185100/0	ARM RESTS KIT	£216.66	Add to
004	9897-0880-12	SCREW MVBF 8 x 80	£2.32	Add to
005	9897-0820-16	SCREW M8 x 20	£2.32	Add to
006	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
007	1137-0057-01	SEAT BRACKET ASSEMBLY [YELLOW]	£122.18	Add to
008	387773509/1	UPPER PLATE	£103.58	Add to
010	1134-0240-00	SCREW	£9.14	Add to
011	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
012	1139-0010-01	SCREW-ARM RESTS	£3.81	Add to
013	1139-0011-01	SPEED NUT PLATE-ARM RESTS	£3.55	Add to
016	1137-0263-01	TUBE	£9.68	Add to
017	9997-0818-02	SCREW M6S M8 x 180 (OBSOLETE)	N/A
018	1134-4160-01	SEAT SPRING	£24.95	Add to
023	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
024	1134-0240-00	SCREW	£9.14	Add to
025	387602511/0	OPC MICRO PROTECION COVER	£35.71	Add to
026	1137-0038-01	COVER	£41.10	Add to
027	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
028	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
029	1134-3990-01	ATTACHMENT-SIDE PANEL	£164.18	Add to
030	9897-0820-16	SCREW M8 x 20	£2.32	Add to
031	1137-0155-01	SPACER	£4.52	Add to
032	1134-4130-01	LOWER COVER YELLOW STIGA	£41.16	Add to
033	9840-8013-16	SCREW 4.8 x 13	£2.06	Add to
034	1134-4135-01	RELAY HOLDER	£17.04	Add to
035	9632-0522-00	POP RIVET	£2.47	Add to
036	9699-0087-02	WASHER 5.3 x 16 x 2	£2.47	Add to
037	1134-1565-08	SPACER	£9.94	Add to
038	1134-3262-01	SPRING	£8.73	Add to
039	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
040	9893-0616-16	SCREW M6 x 16	£2.47	Add to
041	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
042	1137-0055-01	LOWER SLIDE PLATE	£98.40	Add to
043	1134-6078-01	FLANGE WASHER	£5.87	Add to
044	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
045	1137-0260-01	LINK ASSEMBLY A	£65.69	Add to
046	1137-0261-01	LINK ASSEMBLY B	£67.05	Add to
047	1137-0033-01	BLOCK	£3.41	Add to
048	1137-0033-02	BLOCK	£3.41	Add to
049	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
050	1137-0064-01	RUBBER CONE	£42.53	Add to
051	9699-0099-02	WASHER 5.2 x 14 x 1.0	£2.18	Add to
052	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
