Transmission (2)

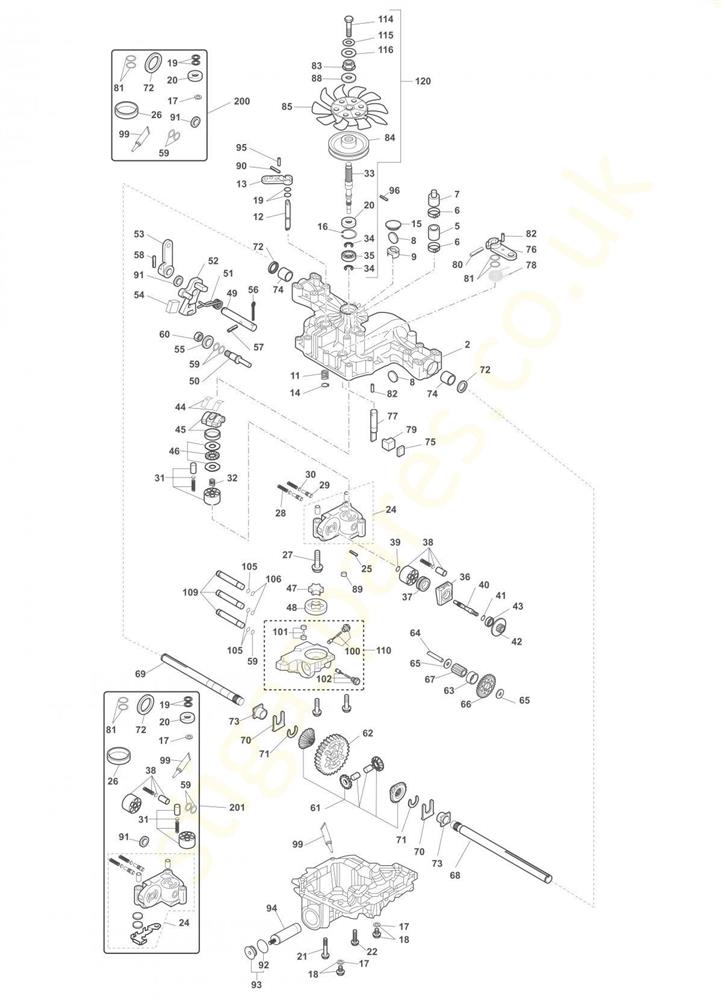

Transmission (2) assembly details for Stiga Stiga Park 520 DP 2F6226281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0126-01TRANSAXLE K57V£991.20 Add to
0021139-1470-01UPPER HOUSING£607.20 Add to
0031139-1728-01LOWER HOUSING£176.40 Add to
0051139-1301-01TUBE£8.16 Add to
0061139-1336-01COBRA CLIP£4.92 Add to
0071139-1306-01ADAPTOR£4.62 Add to
0081139-1150-01MAGNET£3.84 Add to
0091139-1341-01MAGNET HOLDER£4.26 Add to
0111139-1347-01SPRING£2.34 Add to
0121139-1251-01BY-PASS SHAFT£24.18 Add to
0131139-1189-01BY-PASS LEVER£7.08 Add to
0141139-1161-01RING£2.22 Add to
0151139-1735-01SEALING CAP£7.38 Add to
0161139-1104-01CIRCLIP£2.40 Add to
0171139-1103-01SEAL WASHER£3.24 Add to
0181139-1500-01DRAIN BOLT KIT£3.36 Add to
0191139-1117-01O RING£2.16 Add to
0201139-1119-01SEAL 15.35.7£4.86 Add to
0211139-1455-01TAPPING SCREW£5.61 Add to
0221139-0244-01TAPPING SCREW£3.24 Add to
0241139-1731-01CENTER CASE£349.20 Add to
0251139-1158-01PIN£2.22 Add to
0271139-1718-01BOLT (1139-1294-01)£3.89 Add to
0281139-1468-01IDS VALVE£10.14 Add to
0291139-1243-01SPRING£2.34 Add to
0301139-1307-01FILTER£5.76 Add to
0311139-1601-01CYLINDER BLOCK KIT (PUMP)£106.20 Add to
0321139-1245-01PUMP SPRING£2.70 Add to
0341139-1750-01E-RING£2.46 Add to
0351139-1110-01BEARING£9.30 Add to
0361139-1458-01HOUSING£15.78 Add to
0371139-1438-01BEARING£76.20 Add to
0381139-1509-01CYLINDER BLOCK KIT£189.60 Add to
0391139-1160-01WASHER£2.22 Add to
0401139-1353-01MOTOR SHAFT£26.52 Add to
0411139-1021-01CIRCLIP£2.46 Add to
0421139-1272-01MOTOR GEAR£16.08 Add to
0431139-1453-01BEARING£9.18 Add to
0441139-1066-01METAL THRUST (OBSOLETE)N/A
0451139-1597-01SWASH PLATE£29.94 Add to
0461139-1508-01THRUST BEARING KIT£45.12 Add to
0471139-1729-01INNER ROTOR£58.68 Add to
0481139-1151-01OUTER ROTOR£124.80 Add to
0491139-1354-01CONTROL SHAFT£24.57 Add to
0501139-1410-01FULCRUM£24.12 Add to
0511139-1407-01TORSION SPRING£16.96 Add to
0521139-1409-01CONTROL ARM£38.16 Add to
0531139-1325-01CONTROL LEVER£18.60 Add to
0541139-1596-01JERKY PLATE£5.76 Add to
0551139-1102-01WASHER£3.12 Add to
0561139-1329-01PIN£2.34 Add to
0571139-1329-01PIN£2.34 Add to
0581139-1285-01PIN£2.16 Add to
0591139-1115-01O RING£3.42 Add to
0601139-1127-01NUT£3.24 Add to
0611139-1404-01DIFFERENTIAL GEAR KIT£47.76 Add to
0621139-1258-01FINAL GEAR£72.60 Add to
0631139-1255-01COLLAR£5.04 Add to
0641139-1256-01REDUCTION SHAFT£10.62 Add to
0651139-1398-01WASHER£2.82 Add to
0661139-1267-01REDUCTION GEAR£18.84 Add to
0671139-1361-01FINAL PINION GEAR£17.40 Add to
0681139-1344-01AXLE SHAFT LH L=285mm£53.28 Add to
0691139-1345-01AXLE SHAFT RH L=424mm£57.36 Add to
0701139-1078-01THRUST WASHER£8.94 Add to
0711139-1163-01RING£2.34 Add to
0721139-1080-01SEAL 19*32*8£9.72 Add to
0731139-1164-01BUSH£3.36 Add to
0741139-1414-01BUSH (19.05)£4.14 Add to
0751139-1260-01BRAKE SHOE£2.52 Add to
0761139-1261-01BRAKE ARM£7.62 Add to
0771139-1320-01BRAKE SHAFT£32.76 Add to
0781139-1411-01RETURN SPRING£6.24 Add to
0791139-1264-01BRAKE ACTUATOR£4.26 Add to
0801139-1282-01PIN£2.22 Add to
0811139-1114-01O RING£2.70 Add to
0821139-1281-01PIN£3.60 Add to
0831139-1248-01SPLINE COLLAR£3.90 Add to
0841139-1469-01PULLEY£24.66 Add to
0851134-4190-01FAN£14.76 Add to
0881139-1276-01WASHER£5.04 Add to
0891139-1166-01PIN£3.06 Add to
0901139-1280-01PIN (KTM10M)£3.60 Add to
0911139-1303-01SEAL RING£4.44 Add to
0921139-1534-01O RING£2.22 Add to
0931139-1510-01CAP KIT£6.48 Add to
0941139-1186-01FILTER£61.08 Add to
0951139-1279-01PIN£2.22 Add to
0961139-1148-01PIN£2.04 Add to
0991139-1443-01SEALANT (TUBE)£25.14 Add to
1001139-1462-01VALVE£93.44 Add to
1011139-1234-01CHECK CMP£10.98 Add to
1021139-1463-01VALVE£93.44 Add to
1051139-0239-01O RING£2.70 Add to
1061139-1168-01O RING£3.12 Add to
1081139-1460-01PIPING£35.34 Add to
1091139-1464-01CONNECTOR£38.04 Add to
1101139-1730-01PUMP CASE£316.09 Add to
1121139-1473-01BOLT£5.22 Add to
1131139-1471-01BOLT£3.60 Add to
1141139-1719-01BOLT£5.76 Add to
1151139-1720-01LOCK WASHER£2.46 Add to
1161139-1721-01WASHER£2.82 Add to
1201139-1725-01PUMP SHAFT KIT£89.40 Add to
