Power Take-Off

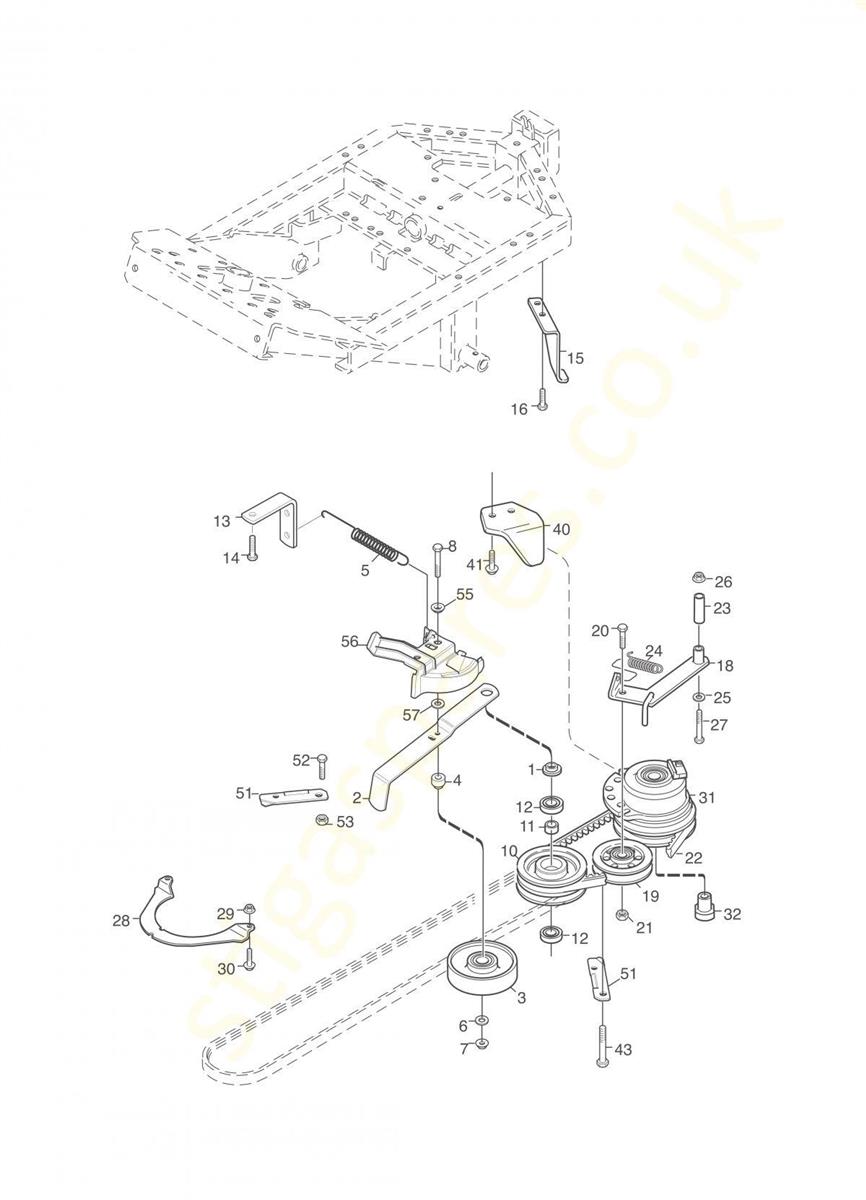

Power Take-Off assembly details for Stiga Stiga Park 520 DP 2F6226281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-5548-01SPACER£14.32 Add to
0021137-1124-01TENSION WHEEL ARM£83.40 Add to
0031137-0128-01TENSION PULLEY£48.34 Add to
0041134-1888-04SPACER£9.41 Add to
0051134-5111-01SPRING£18.53 Add to
006112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0071137-0155-01SPACER£4.52 Add to
008112691900/0HEX-HEAD SCREW£1.91 Add to
010387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
0111134-0051-09SPACER£14.05 Add to
012120001215/0BEARING 6203 2RS C3£32.57 Add to
0131134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
0141134-4242-01SPACER WASHER£4.78 Add to
0151134-5110-02HOOK PLATE£40.30 Add to
0169893-0616-16SCREW M6 x 16£2.47 Add to
0181134-3658-02TENSIONING ARM£91.58 Add to
0191134-3663-01TENSION PULLEY£56.36 Add to
0209997-1040-16SCREW M6S 10 x 40£7.23 Add to
0219739-1031-22NUT M10£2.32 Add to
0221134-9047-01PTO DRIVE BELT£47.97 Add to
0231134-1565-10SPACER£8.73 Add to
0241134-3379-01SPRING£18.27 Add to
025112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0261137-0155-01SPACER£4.52 Add to
027112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
0281134-3654-01GUARD£35.71 Add to
029112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0309959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
0311134-7526-01MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )£287.40 Add to
0321134-5016-01BUSH (FOR ELECTRIC PTO-CLUTCH)£31.63 Add to
0401134-4924-01STRUT£47.97 Add to
0419959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0439959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
051337546547/0PLATE£5.64 Add to
052112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054325160039/0SPACER£2.06 Add to
055122041980/0SPACER ROLLER BUSH£2.06 Add to
056337600000/1PULLEY PROTECTION GUARD£7.73 Add to
057112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
