Hand controls

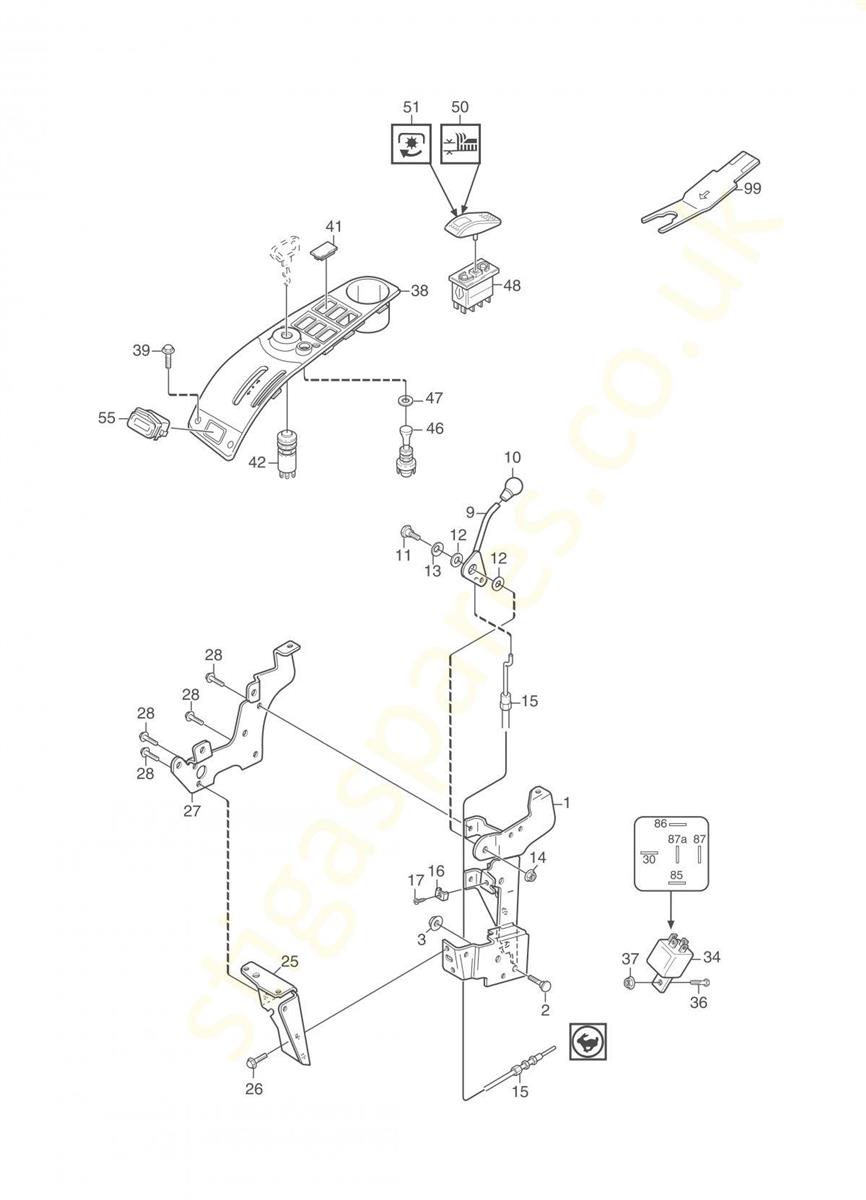

Hand controls assembly details for Stiga Stiga Park 520 DP 2F6226281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6324-01PANEL BRACKET£49.56 Add to
0029897-0820-16SCREW M8 x 20£2.82 Add to
0031137-0155-01SPACER£4.62 Add to
0091134-4077-02THROTTLE CONTROL LEVER£25.26 Add to
0101134-4078-01KNOB£5.76 Add to
0111134-0240-00SCREW£8.46 Add to
0121134-4242-01SPACER WASHER£4.86 Add to
0139665-0002-00BOWL WASHER£2.82 Add to
014112155000/0LOW SELF-LOCKING NUT M8£2.46 Add to
015187000203/0THROTTLE CABLE [DIESEL]£18.60 Add to
0161137-0115-01WIRE CLAMP£2.70 Add to
017112735654/0SELF-TAPPING SCREW M5 x 16£3.06 Add to
0251134-6328-01SPACER£16.02 Add to
0269893-0616-16SCREW M6 x 16£2.94 Add to
0271134-6327-01FRONT PLATE£19.02 Add to
0289893-0616-16SCREW M6 x 16£2.94 Add to
0341134-2871-03STARTER RELAY [5 SPADE]£36.78 Add to
036112789000/0SCREW TE M5 x 12£2.46 Add to
0379739-0531-22NUT M5£2.82 Add to
0381134-6096-09DASHBOARD£24.72 Add to
0399946-0525-16SCREW M5 x 25£2.94 Add to
0411134-4129-01COVER£5.94 Add to
042118450079/0IGNITION SWITCH [DIESEL]£107.40 Add to
0469400-0296-01SWITCH£17.04 Add to
0479699-0090-02WASHER 8.4 x 18 x 1.5£2.82 Add to
0489400-0282-01SWITCH C/W DIODE£64.20 Add to
0509400-0280-03SWITCH COVER-HEIGHT ADJUST£16.02 Add to
0519400-0343-01SWITCH COVER-PTO£8.52 Add to
0551134-6097-02HOUR METER£63.50 Add to
0999400-0290-01TOOL£11.82 Add to
