Body works (2)

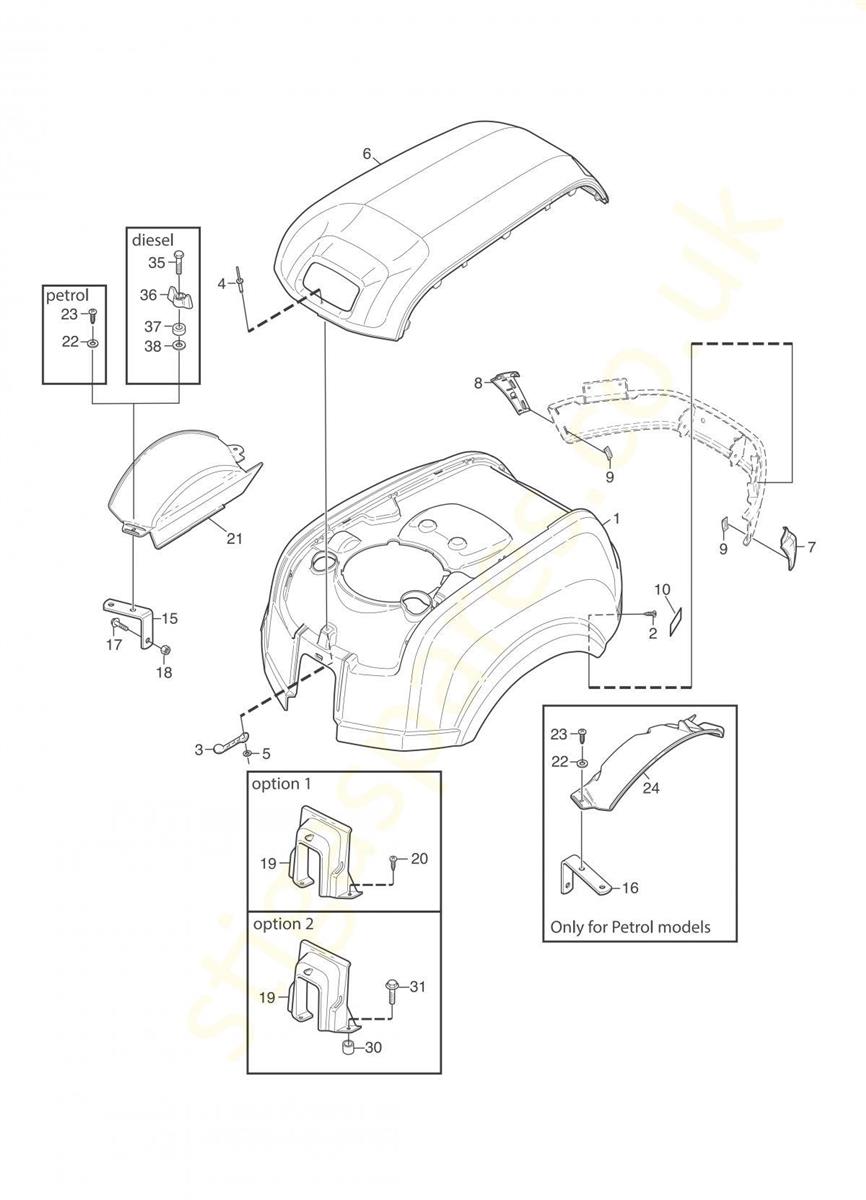

Body works (2) assembly details for Stiga Stiga Park 520 DP 2F6226281 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6025-01ENGINE HOOD [YELLOW]£330.25 Add to
0029893-0616-16SCREW M6 x 16£2.35 Add to
0031134-9028-01RUBBER STRAP (3 PCS)£25.20 Add to
0049632-0513-00POP RIVET 3.2 x 20£1.96 Add to
0059699-0120-02WASHER 3.2 x 14 x 1.5£2.21 Add to
006337110334/0TOP ENGINE COVER [GREY]£74.24 Add to
007337110336/0LEFT BUMPER END£14.29 Add to
008337110335/0RIGHT BUMPER END£13.64 Add to
0091134-6310-01CLIP£2.21 Add to
010337580302/0PLATE [YELLOW]£7.27 Add to
0151134-4012-03RIGHT BRACKET£17.92 Add to
0179959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
0181137-0155-01SPACER£4.30 Add to
0191137-0155-01SPACER£4.30 Add to
0209893-0616-16SCREW M6 x 16£2.35 Add to
0211134-4800-01INNER MUDGUARD-RH (PARK)£114.39 Add to
035112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£1.96 Add to
0361134-4481-02WING NUT£5.85 Add to
037125160012/0SPACER£1.96 Add to
038112523040/0WASHER M6 6.6 x 18 x 1.6£1.96 Add to
