Assembly parts

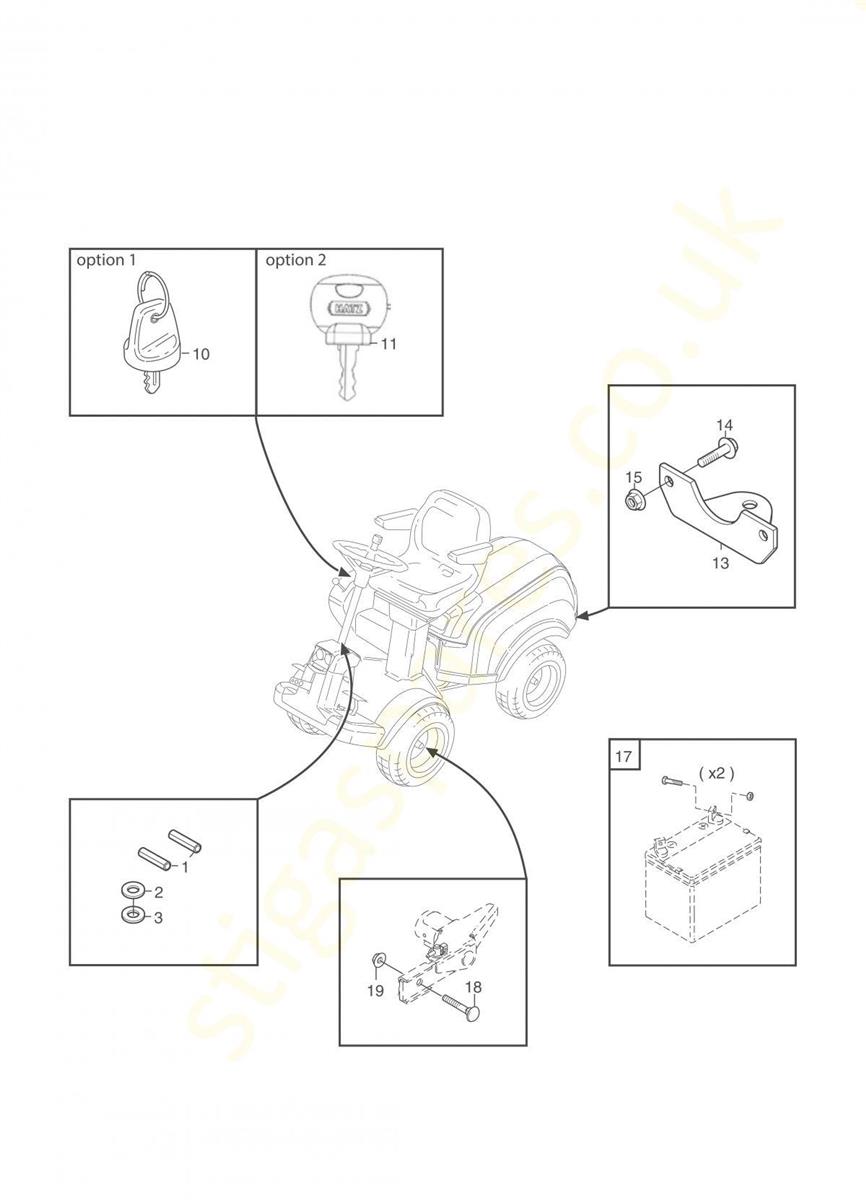

Assembly parts assembly details for Stiga Stiga Park 520 DP 2F6226281 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9595-0262-00	LOCATING PIN	£2.06	Add to
002	9699-0103-02	WASHER	£2.47	Add to
003	9699-0114-02	WASHER 16 x 38 x 1	£2.32	Add to
010	1134-4734-01	IGNITION KEY	£17.72	Add to
011	118210027/0	IGNITION KEY [DIESEL]	£8.45	Add to
013	1134-5512-01	TOWING PLATE	£20.72	Add to
014	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
015	1137-0155-01	SPACER	£4.52	Add to
017	1134-6113-02	BATTERY SCREWS PACK	£13.37	Add to
018	9898-1035-16	SCREW 10 x 35	£3.15	Add to
019	9739-1031-22	NUT M10	£2.32	Add to
