Engine

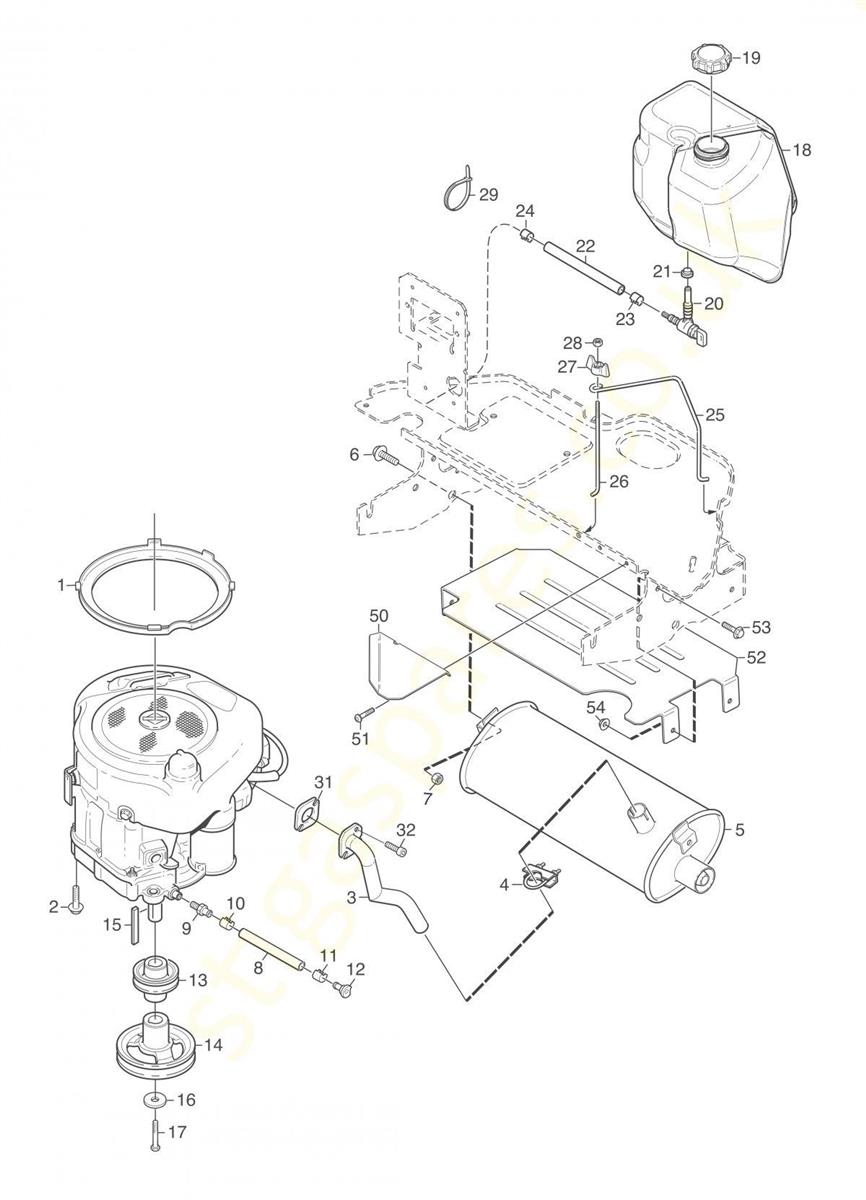

Engine assembly details for Stiga Stiga Park 420 2F6020421 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6116-02	AIR DUCT	£28.90	Add to
002	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
003	118738265/0	EXHAUST PIPE B&S 3130	£60.28	Add to
004	9578-0011-01	TUBE CLAMP	£14.58	Add to
005	1134-6024-01	MUFFLER	£425.45	Add to
006	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
007	1137-0155-01	SPACER	£4.52	Add to
008	1134-5827-01	OIL DRAIN ASSEMBLY	£41.16	Add to
009	1134-5825-01	NIPPLE	£58.87	Add to
010	9578-0023-04	HOSE CLAMP	£5.32	Add to
011	9578-0023-00	HOSE CLAMP	£24.95	Add to
012	1134-5826-01	PLUG	£24.95	Add to
013	1137-0206-01	ENGINE PULLEY	£34.35	Add to
014	1137-0208-01	ENGINE PULLEY	£45.26	Add to
015	9600-0251-01	KEY L=2.5"	£6.95	Add to
016	1134-5017-02	WASHER 40 x 11.5 x 4	£3.15	Add to
017	9987-5332-16	SCREW U6S 7/16" UNF x 32	£2.47	Add to
018	1134-5938-01	FUEL TANK	£135.19	Add to
019	125795001/1	FUEL TANK CAP	£8.32	Add to
020	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
021	1134-3225-01	GROMMET	£7.57	Add to
022	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
023	9578-0023-02	HOSE CLAMP	£5.73	Add to
024	9578-0023-02	HOSE CLAMP	£5.73	Add to
025	1134-5942-01	TANK LOOP	£9.54	Add to
026	1134-5996-01	TANK LOOP	£7.10	Add to
027	1134-4481-02	WING NUT	£6.14	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	133320027/0	FASTPOINT BAND ART. 0387.AA01 L=290	£2.06	Add to
030	9852-8013-16	SCREW	£2.47	Add to
031	1134-0433-00	MUFFLER GASKET	£5.87	Add to
032	1134-4930-01	SCREW	£2.32	Add to
050	1134-6234-01	HEAT DEFLECTOR	£17.86	Add to
051	9943-0516-16	SCREW	£2.40	Add to
052	1134-6251-01	HEAT DEFLECTOR	£39.80	Add to
053	9959-0612-16	SCREW M6SF M6 x 12 TL	£1.79	Add to
054	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
