Wheels

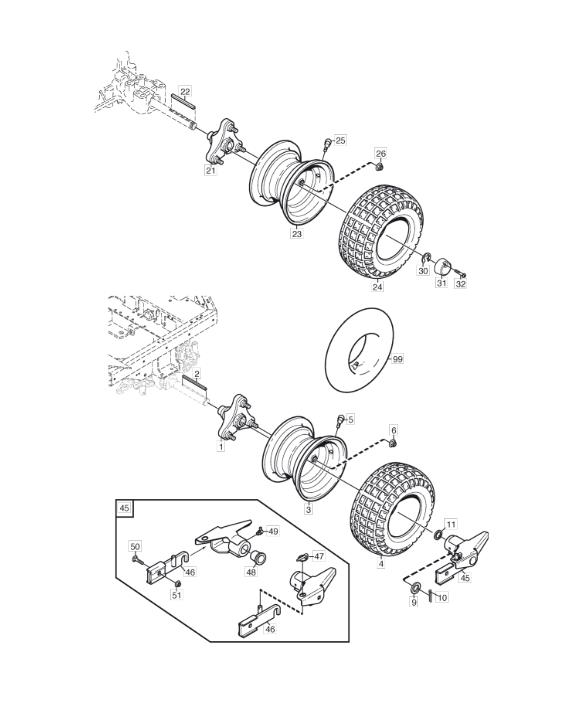

Wheels assembly details for Stiga Stiga Park 340 X 2F6130511 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-4844-03	WHEEL HUB ASSEMBLY	£58.87	Add to
002	1134-3383-02	KEY (L=51 MM)	£9.41	Add to
003	187000454/0	WHEEL RIM 5.5" x 8"	£84.77	Add to
004	9545-0116-00	TYRE 16 x 7.50-8	£86.13	Add to
005	125950000/0	PNEUMATIC VALVE	£5.73	Add to
006	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
009	1134-0341-01	WASHER	£7.10	Add to
010	9599-0080-02	COTTER PIN	£2.47	Add to
011	1134-0341-01	WASHER	£7.10	Add to
021	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
022	1134-2471-01	KEY	£9.41	Add to
023	187000454/0	WHEEL RIM 5.5" x 8"	£84.77	Add to
024	9545-0116-00	TYRE 16 x 7.50-8	£86.13	Add to
025	125950000/0	PNEUMATIC VALVE	£5.73	Add to
026	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
030	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
031	1134-4796-01	HUB CAP	£5.46	Add to
032	9947-0540-19	SCREW	£2.06	Add to
045	13-0993-61	RAC QUICK CONNECTION 4WD PARK	£145.95	Add to
046	1134-7465-01	ATTACHMENT HOOK PLATES [LH & RH]	£53.42	Add to
047	1137-0077-01	LOCKING PIN	£3.81	Add to
048	1134-5686-01	BEARING BUSH D= 25.4mm	£14.58	Add to
049	9501-0502-00	GREASE JOINT	£8.87	Add to
050	9898-1035-16	SCREW 10 x 35	£3.15	Add to
051	9739-1031-22	NUT M10	£2.32	Add to
099	9545-0203-00	INNER TUBE 16 x 6.50	£26.18	Add to
