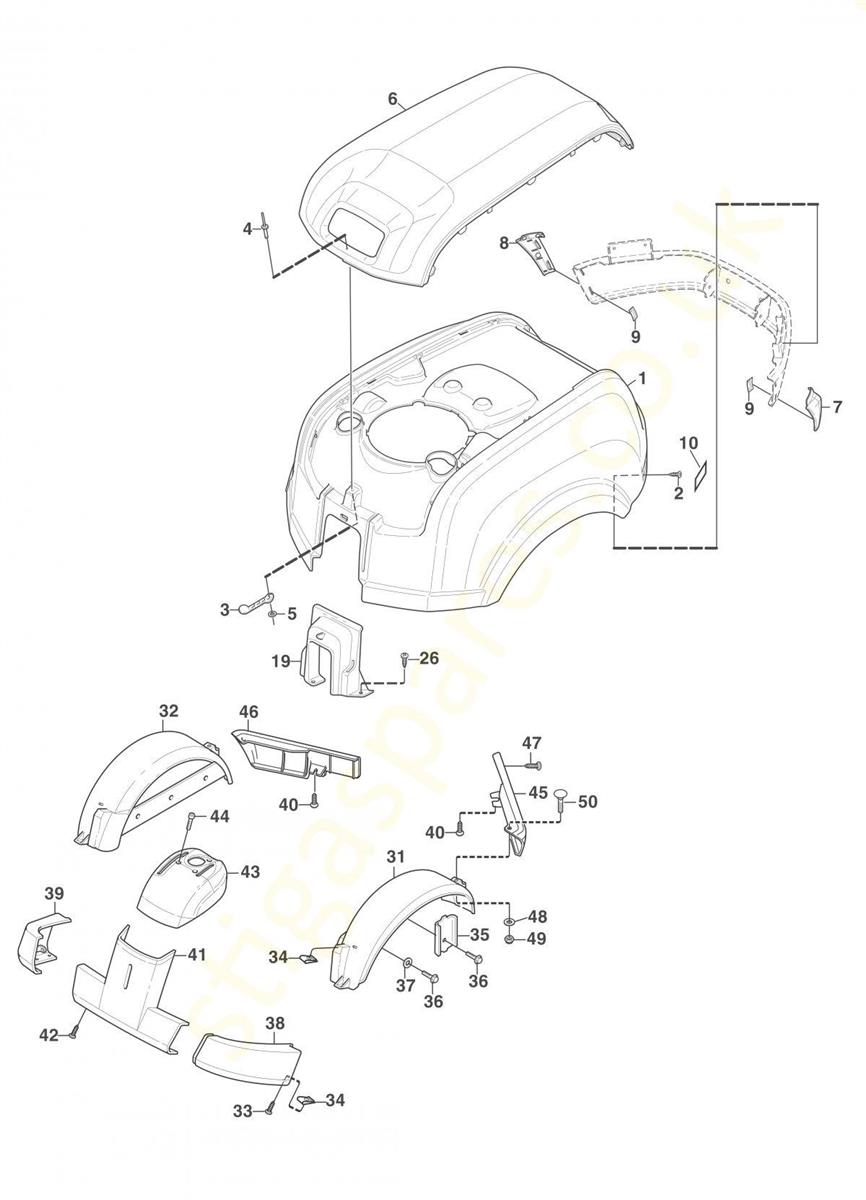

Body assembly details for Stiga Stiga Park 340 X 2F6130511 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-6025-01ENGINE HOOD [YELLOW]£265.20 Add to
0029893-0616-16SCREW (M6 X 16)£2.94 Add to
0031134-9028-01RUBBER STRAP (3 PCS)£20.64 Add to
0049632-0513-00POP RIVET 3.2 x 20£2.46 Add to
0059699-0120-02WASHER 3.2 x 14 x 1.5£2.88 Add to
006337110334/0TOP ENGINE COVER [GREY]£64.80 Add to
007337110336/0LEFT BUMPER END£13.32 Add to
008337110335/0RIGHT BUMPER END£13.32 Add to
0091134-6310-01CLIP£2.82 Add to
010337580302/0PLATE [YELLOW]£7.14 Add to
0191134-6241-01HOOD SUPPORT£35.10 Add to
026112735594/0HEX-HEAD SCREW M6 x 30 (MODELS WITH VANGUARD 18)£2.46 Add to
031337491255/0LEFT MUDGUARD [GREY]£95.40 Add to
032337491254/0RIGHT MUDGUARD [GREY]£72.02 Add to
0339893-0616-16SCREW (M6 X 16)£2.94 Add to
0341134-4176-01CLIP£5.10 Add to
0351137-0088-01SUPPORT PLATE£3.06 Add to
0361134-4242-01SPACER WASHER£4.98 Add to
037112523060/0WASHER M8 8.4 x 24 x 2£2.46 Add to
038337502509/0LEFT FRONT BUMPER [GREY]£46.68 Add to
039337502508/0RIGHT FRONT BUMPER [GREY]£39.66 Add to
0409893-0616-16SCREW (M6 X 16)£2.94 Add to
0411134-5305-01FRONT BUMPER [YELLOW]£70.80 Add to
0429893-0616-16SCREW (M6 X 16)£2.94 Add to
0431134-5320-05FRONT UPPER COVER [YELLOW]£32.16 Add to
043337110321/0UPPER FRONT COVER [YELLOW]£45.48 Add to
0449946-0525-16SCREW M5 x 25£2.94 Add to
045337110331/0LEFT MOULDING [GREY]£44.40 Add to
046337110332/0RIGHT MOULDING [GREY]£44.40 Add to
0479893-0616-16SCREW (M6 X 16)£2.94 Add to
048112523040/0WASHER M6 6.6 x 18 x 1.6£2.46 Add to
049112154510/0LOW SELF-LOCKING NUT (M6)£2.46 Add to
050112815200/0SCREW TTDQ M6 x 16£2.46 Add to
