Assembly parts

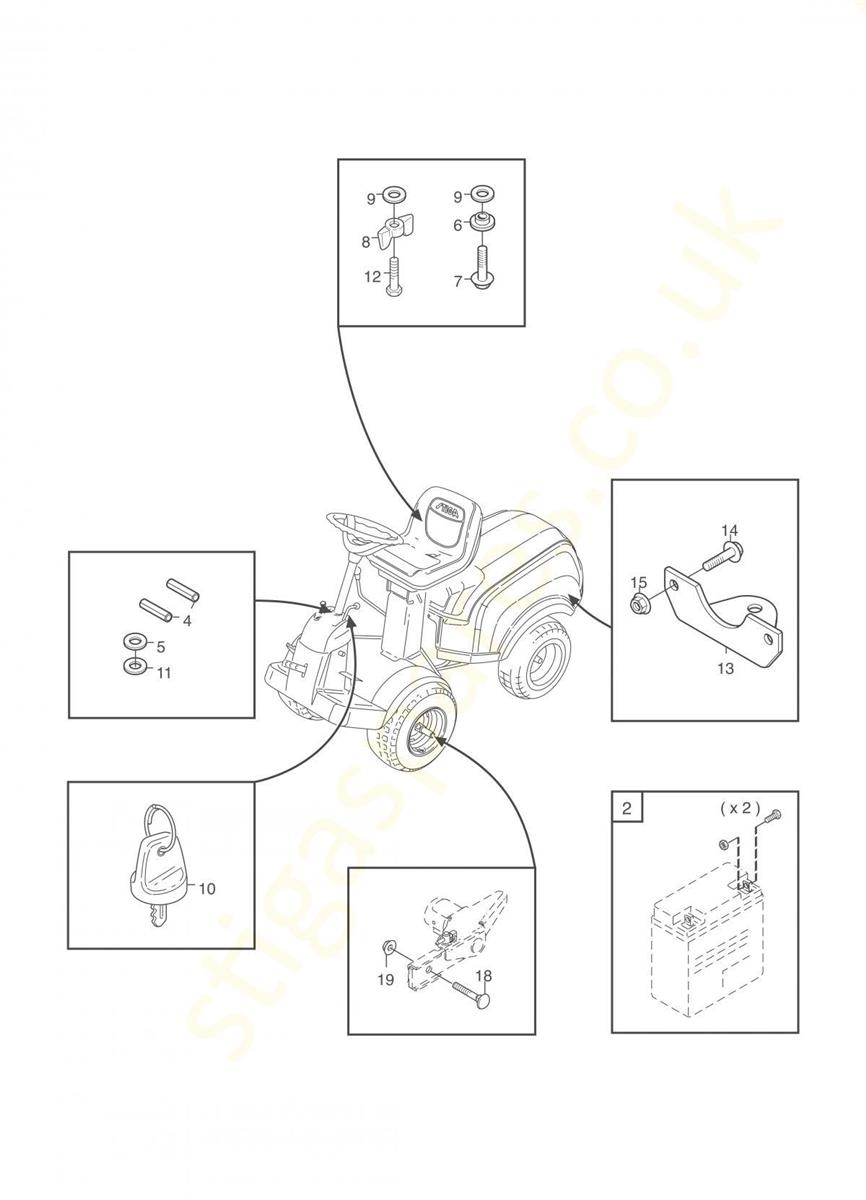

Assembly parts assembly details for Stiga Stiga Park 340 X 2F6130511 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0021134-6113-01BATTERY SCREW PACK£11.52 Add to
0049595-0262-00LOCATING PIN£2.70 Add to
0059699-0103-02WASHER£2.94 Add to
0061134-4185-01FLANGE WASHER£5.94 Add to
0079959-0820-16SCREW M6SF M8 X 20 TL£2.46 Add to
0081134-4481-01WING NUT (M8)£2.46 Add to
009112523060/0WASHER M8 8.4 x 24 x 2£1.43 Add to
0101134-4734-01IGNITION KEY£15.60 Add to
0119699-0114-02WASHER 16 x 38 x 1£2.82 Add to
012112793102/0HEX-HEAD SCREW TE M8 x 20£1.43 Add to
0131134-5512-01TOWING PLATE£16.02 Add to
0149959-0820-16SCREW M6SF M8 X 20 TL£2.46 Add to
0151137-0155-01SPACER£4.62 Add to
0189898-1035-16SCREW 10 x 35£3.48 Add to
0199739-1031-22NUT (M10)£2.46 Add to
