Power take-off (2)

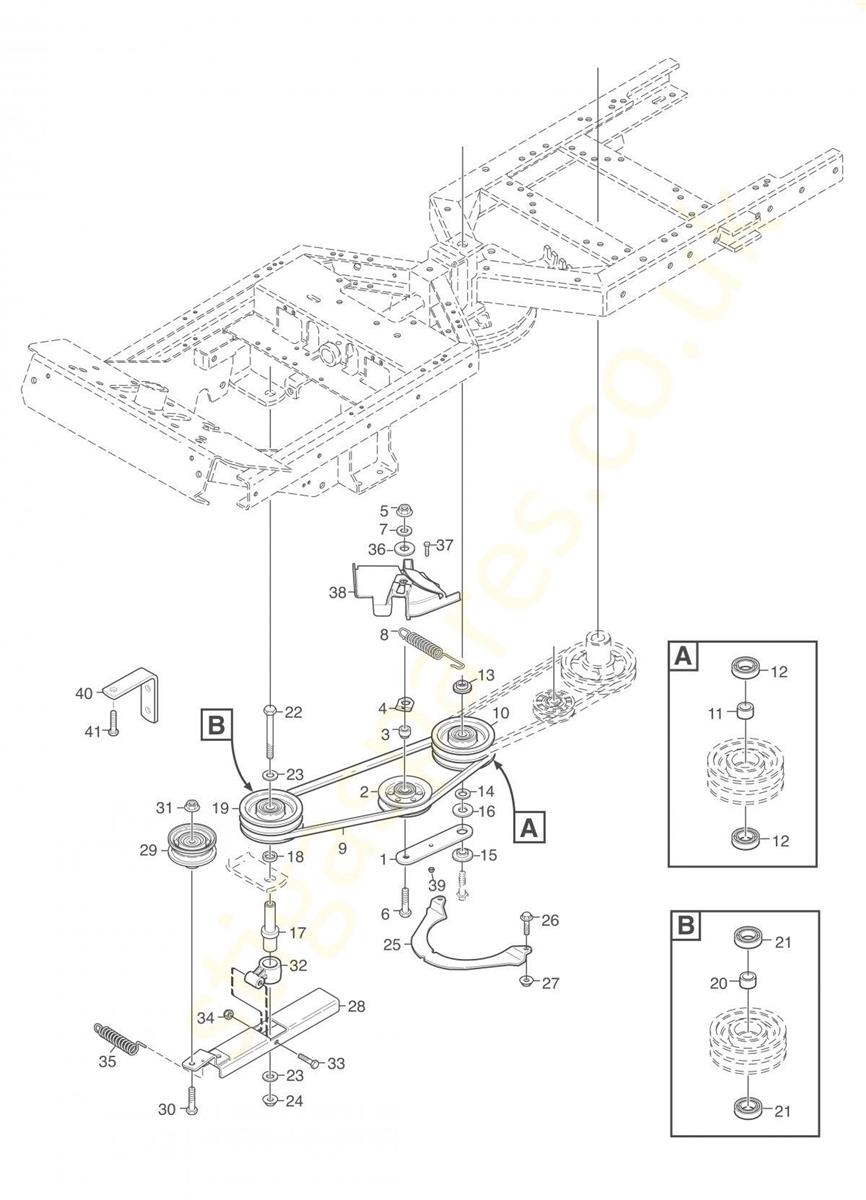

Power take-off (2) assembly details for Stiga Stiga Park 340 MWX 2F6130620 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-1730-02TENSIONING WHEEL ARM£36.12 Add to
0021134-3663-01TENSION PULLEY£43.80 Add to
0031134-1888-06SPACER£8.64 Add to
004337546545/0SPRING HOOKING PLATE£5.46 Add to
0059739-1031-22NUT (M10)£2.46 Add to
006112692395/1SCREW M10 X 60 L=60MM£3.60 Add to
007112521360/0WASHER M10 10.5 x 20 x 2£1.43 Add to
0081134-5713-04SPRING£6.72 Add to
0091134-9199-01PTO DRIVE BELT [4WD]£44.88 Add to
0101137-0209-01CENTRE PULLEY ASSEMBLY£62.35 Add to
0111134-0051-09SPACER£12.54 Add to
012120001215/0BEARING 6203 2RS C3£25.66 Add to
0131134-5548-01SPACER£12.72 Add to
014112521360/0WASHER M10 10.5 x 20 x 2£1.43 Add to
0151134-0222-00TENSION WASHER£12.30 Add to
0169699-0109-02WASHER 10.5 x 40 x 2£2.82 Add to
0171134-5663-01SHAFT£34.32 Add to
0181134-0052-00SPACER£8.22 Add to
0191137-0209-01CENTRE PULLEY ASSEMBLY£62.35 Add to
0201134-0051-09SPACER£12.54 Add to
021120001215/0BEARING 6203 2RS C3£25.66 Add to
0229997-1011-06SCREW M6S M10 x 110£10.74 Add to
0239699-0030-02WASHER (10 X 26 X 2)£2.46 Add to
0249739-1031-22NUT (M10)£2.46 Add to
0251134-3654-01GUARD£30.24 Add to
0269959-0612-16SCREW M6SF M6 x 12 TL£2.46 Add to
027112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£1.54 Add to
0281134-5660-01TENSION ARM£33.48 Add to
0291134-5823-01TENSION PULLEY£38.88 Add to
030112794900/0HEX-HEAD SCREW M10 x 50£2.46 Add to
0319739-1031-22NUT (M10)£2.46 Add to
0321134-6314-01TENSION ARM ATTACHMENT£8.40 Add to
033112689515/0HEX-HEAD SCREW M6 x 45£1.43 Add to
034112154510/0LOW SELF-LOCKING NUT (M6)£1.43 Add to
0351134-5824-01SPRING£5.70 Add to
036137038000/0BUSH£5.52 Add to
037112792410/0HEX-HEAD SCREW M6 x 40£2.46 Add to
038337600001/2PULLEY PROTECTION GUARD£7.92 Add to
039112154510/0LOW SELF-LOCKING NUT (M6)£1.43 Add to
0401134-5112-01SPRING ATTACHMENT BRACKET£26.99 Add to
0411134-4242-01SPACER WASHER£4.86 Add to
