Transmission (1)

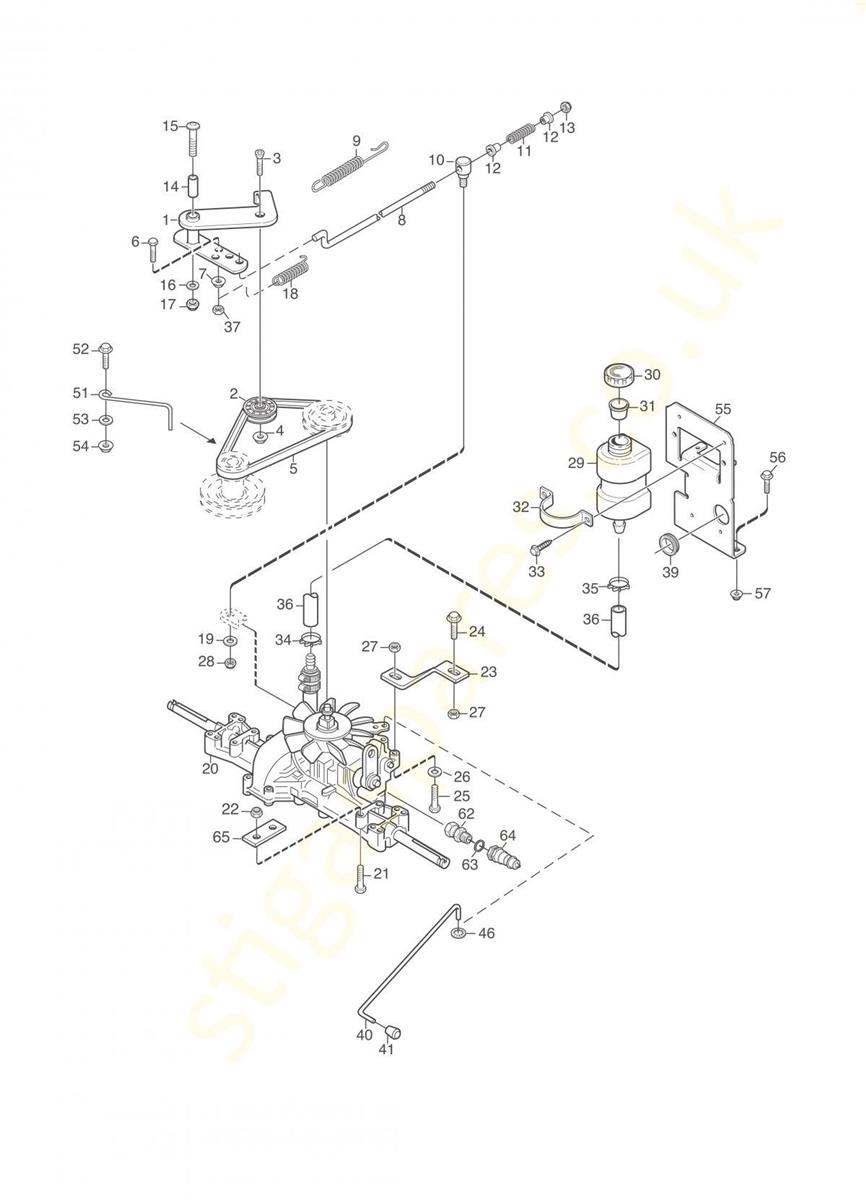

Transmission (1) assembly details for Stiga Stiga Park 320 MW 2F6120620 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-4000-02TENSION ARM£45.84 Add to
002387605012/0TENSION PULLEY£56.18 Add to
0039924-1035-16SCREW MF6S M10 x 35£6.80 Add to
004112295200/0HEXAGON NUT M10£2.65 Add to
0051134-9058-01TRANSMISSION BELT£22.30 Add to
006112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.90 Add to
007112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.90 Add to
0081134-3377-02CONTROL ROD£16.63 Add to
0094231-0013-00SPRING£9.20 Add to
0101134-4171-01PIVOT PIN£17.14 Add to
0111134-4183-01COMPRESSION SPRING£9.07 Add to
0121134-3456-01BUSH£6.68 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0141134-1565-08SPACER£10.19 Add to
0159930-0870-16***N/A POA
016112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
017112154220/0SELF-LOCK NUT M8£2.90 Add to
0181134-6414-01SPRING£6.30 Add to
019112523040/0WASHER M6 6.6 x 18 x 1.6£2.90 Add to
0201137-0123-01TRANSAXLE K46CI£971.46 Add to
0219960-0860-12SCREW M8 x 60£3.15 Add to
022112154220/0SELF-LOCK NUT M8£2.90 Add to
0231134-3913-01STRUT BRACKET£17.26 Add to
0249959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.90 Add to
025112691200/0HEX-HEAD SCREW M8 x 45£2.90 Add to
0269699-0090-02WASHER 8.4 x 18 x 1.5£3.15 Add to
027112154220/0SELF-LOCK NUT M8£2.90 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0291134-2765-02OIL TANK£42.84 Add to
0301134-2777-02OIL TANK CAP£16.51 Add to
0311134-3734-01VENT PLUG£11.34 Add to
0321134-2778-01BAND£14.11 Add to
0339852-8013-16SCREW£3.28 Add to
0359578-0023-04HOSE CLAMP£5.92 Add to
0359578-0036-01HOSE CLAMP£4.16 Add to
0361134-2779-09Slang Tube L = 290 mmN/A POA
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.90 Add to
0391134-3203-01GROMMET£6.17 Add to
0401134-4015-01PULL ROD£11.72 Add to
0411134-4014-01KNOB£5.80 Add to
046112604896/0STARLOCK WASHER D=6£2.90 Add to
0511134-3289-02BELT GUIDE£20.79 Add to
0529959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
053112523060/0WASHER M8 8.4 X 24 X 2 (NOT USED ON STIGA MODELS)£2.90 Add to
0541137-0155-01SPACER£5.17 Add to
0551134-5941-01TANK BRACKET£43.44 Add to
0569959-0820-16SCREW M6SF M8 x 20 TL£2.90 Add to
0571137-0155-01SPACER£5.17 Add to
0621134-7245-01HYDRAULIC COUPLING-STRAIGHT£11.72 Add to
0631134-4948-01SEAL WASHER 1/4"£3.40 Add to
0641134-6042-01QUICK COUPLING-MALE 1/4"£28.53 Add to
0651134-3376-01SPACER PLATE£16.25 Add to
