Steering

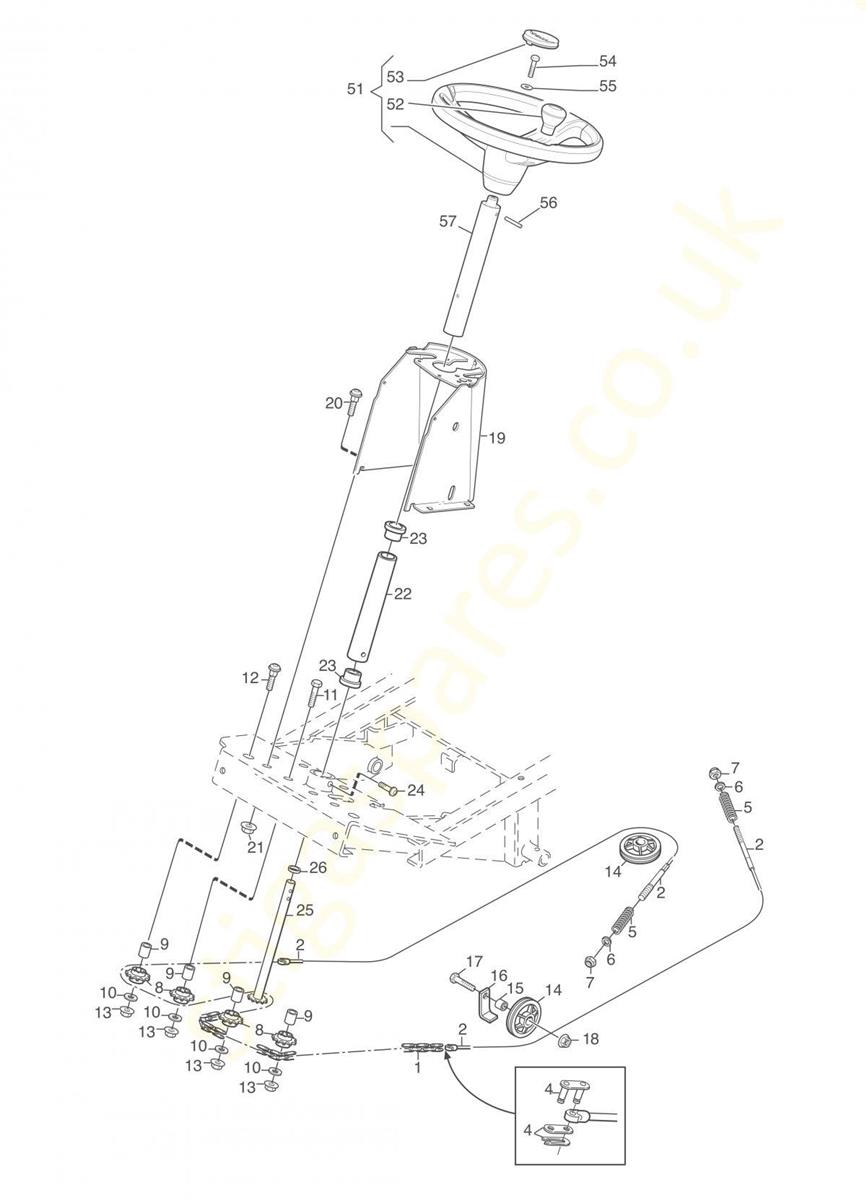

Steering assembly details for Stiga Stiga Park 320 MW 2F6120620 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187000351/0	STEERING CHAIN 83M ELITE PC-PCH W/SERVO	£35.71	Add to
002	1134-9084-01	STEERING CABLE (PARK)	£56.15	Add to
004	187060100/0	STEERING CHAIN LINK	£6.01	Add to
005	1134-3817-01	COMPRESSION SPRING	£12.96	Add to
006	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
007	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
008	1134-2816-01	SPROCKET	£10.77	Add to
009	1134-0041-02	BUSH	£10.09	Add to
010	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
011	9997-1050-16	SCREW M6S M10 x 50	£2.87	Add to
012	9897-1040-12	SCREW M10 x 40	£3.49	Add to
013	9739-1031-22	NUT M10	£2.32	Add to
014	1134-9025-01	STEERING PULLEY [2 PCS]	£20.09	Add to
015	1134-0041-01	BUSH	£9.41	Add to
016	1134-3022-01	BRACKET	£62.97	Add to
017	9997-1030-16	SCREW M6S M10 x 30	£3.00	Add to
018	9739-1031-22	NUT M10	£2.32	Add to
019	1134-5349-01	STEERING CONSOLE [YELLOW]	£106.58	Add to
020	9897-0820-16	SCREW M8 x 20	£2.32	Add to
021	1137-0155-01	SPACER	£4.52	Add to
022	387520125/0	LOWER STEERING COLUMN	£39.80	Add to
023	1134-1901-01	PLASTIC BUSH	£12.27	Add to
024	9893-0616-16	SCREW M6 x 16	£2.47	Add to
025	1137-0079-04	STEERING ROD ASSEMBLY	£46.61	Add to
026	1134-2837-01	SPACER	£9.54	Add to
051	337961200/0	STEERING WHEEL [BLACK]	£287.40	Add to
052	187593701/0	STEERING WHEEL KNOB	£48.11	Add to
053	337580550/0	STEERING WHEEL PLATE	£8.75	Add to
054	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
055	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
056	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
057	387520127/0	GAP+CTF UPPER STEER. COLUMN ASSY PCC	£90.98	Add to
