Hand controls

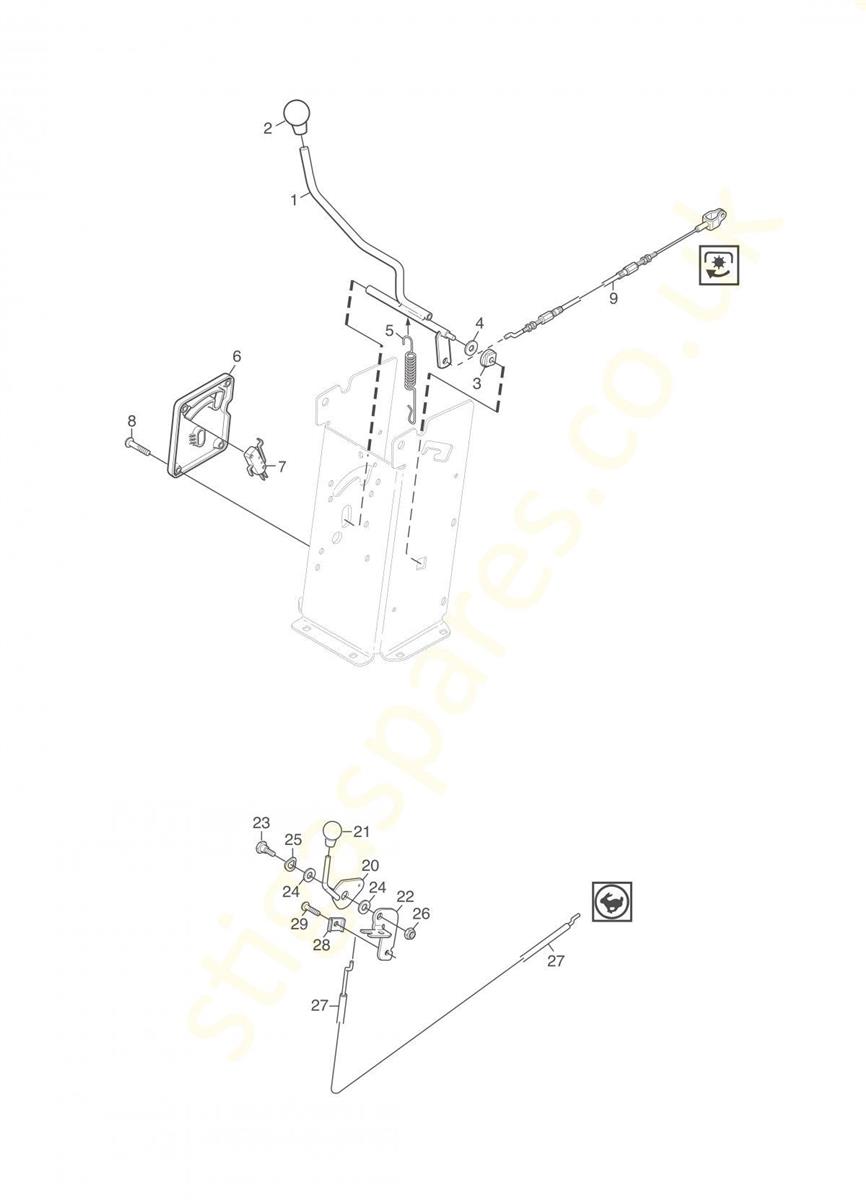

Hand controls assembly details for Stiga Stiga Park 320 2F6120511 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011134-6301-01ENGAGE LEVER£43.93 Add to
0021134-2551-01GEAR KNOB£11.59 Add to
0031134-3790-02BEARING£9.14 Add to
0049699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
0054231-0013-00SPRING£8.87 Add to
0061134-5368-01DASHBOARD£24.95 Add to
0089946-0525-16SCREW M5 x 25£2.47 Add to
0091134-3573-05PTO CABLE£32.99 Add to
0201134-5465-01Throttle Control LeverN/A POA
0211134-4078-01KNOB£5.87 Add to
0221134-5464-01BRACKET£28.90 Add to
0231134-0240-00SCREW£9.14 Add to
0241134-4242-01SPACER WASHER£4.78 Add to
025122675110/0WASHER D=13.5 x 20.5 x 0.5£2.14 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0271134-4197-03THROTTLE CABLE£24.95 Add to
0289500-9991-00CABLE CLAMP£7.78 Add to
029112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
