Wheel

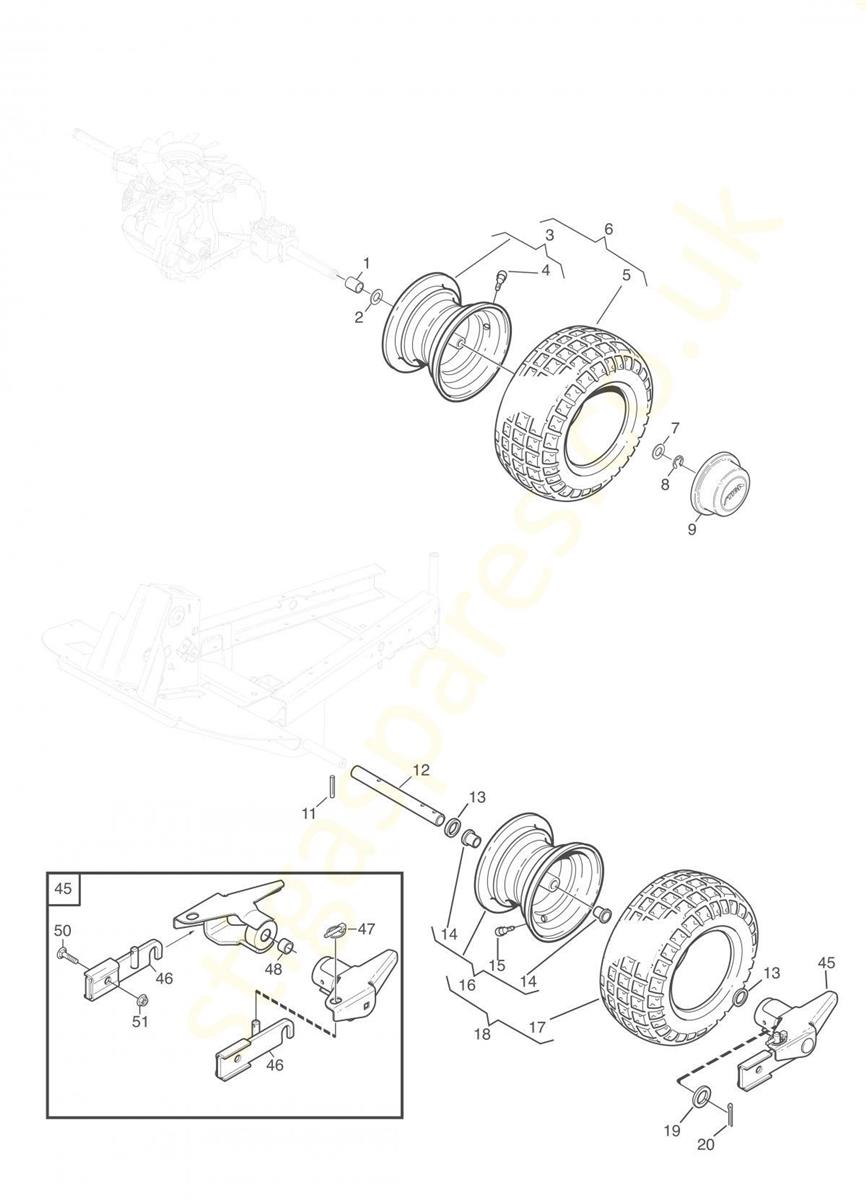

Wheel assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-4845-02 HUB SLEEVE £7.97 Add to
002 1134-0341-01 WASHER £8.32 Add to
003 187000451/1 REAR WHEEL RIM 4.375 x 8 £38.48 Add to
004 9545-0500-00 Valve N/A POA
005 137950010/0 TYRE 160/50-8 TURF GRIP £50.26 Add to
006 387680301/0 REAR WHEEL ASSEMBLY 14" £85.28 Add to
007 1134-4981-01 WASHER £3.60 Add to
008 9653-0001-04 CIRCLIP 3/4" £3.60 Add to
009 1137-1006-01 Hub Cap £5.08 Add to
011 9595-0258-00 Locating Pin N/A POA
012 1134-0075-00 FRONT AXLE £41.23 Add to
013 1134-0341-01 WASHER £8.32 Add to
014 137038001/0 15" FRONT WHEEL BUSH £5.08 Add to
015 9545-0500-00 Valve N/A POA
016 187000450/1 FRONT WHEEL RIM 4.375 x 8 £36.52 Add to
017 137950010/0 TYRE 160/50-8 TURF GRIP £50.26 Add to
018 387680303/0 WHEEL ASSEMBLY 14" £81.07 Add to
019 9699-0042-02 WASHER 20 X 36 X 3 £3.60 Add to
020 9599-0080-02 COTTER PIN £3.60 Add to
045 13-0992-61 Quick connections N/A POA
046 1134-7465-01 ATTACHMENT HOOK PLATES [LH & RH] £40.57 Add to
047 1137-0077-01 LOCKING PIN £3.60 Add to
048 9548-0026-01 BUSH £39.42 Add to
050 9898-1035-16 SCREW 10 X 35 £3.60 Add to
051 9739-1031-22 NUT M10 £3.60 Add to
