Transmission 3

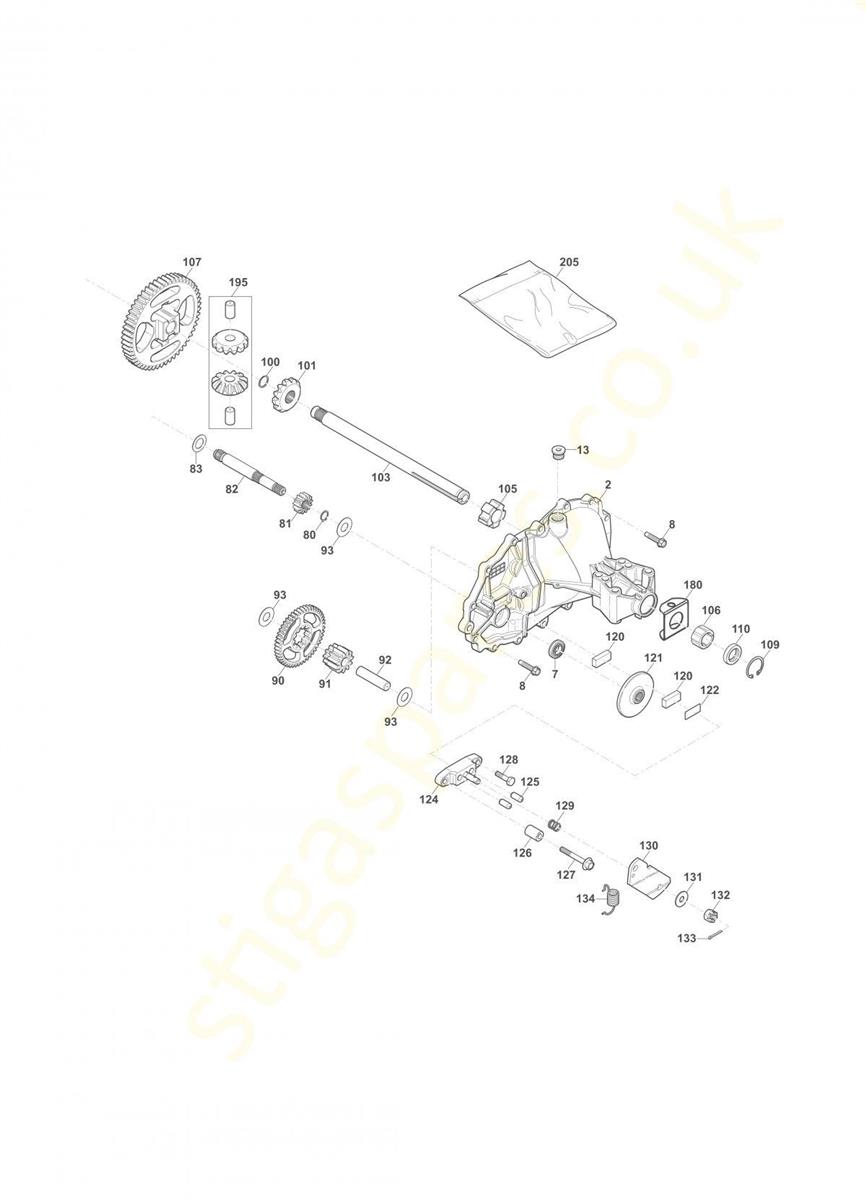

Transmission 3 assembly details for Mountfield stiga-park-220-2f5820321 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 118870121/0 SIDE HOUSING £1,093.06 Add to
007 118870111/0 OIL SEAL 0.50 x 1.00 x 0.25 £21.38 Add to
008 1139-2042-01 SCREW £5.18 Add to
013 1139-2010-01 PLUG £15.78 Add to
080 118870070/0 RETAINING RING 0.457 £9.80 Add to
081 118870106/0 GEAR 14T £18.05 Add to
082 118870095/0 MOTOR SHAFT £155.02 Add to
083 118870096/0 WASHER 0.06 x 1.00 x 0.33 £12.06 Add to
090 118870105/0 GEAR 47T/11T £100.78 Add to
091 118870098/0 GEAR 11T £53.12 Add to
092 118870099/0 JACKSHAFT PIN £51.76 Add to
093 1139-2016-01 WASHER £5.18 Add to
100 118870072/0 RETAINING RING £14.34 Add to
101 118870063/0 GEAR 12T £67.38 Add to
103 118870116/0 AXLE SHAFT 0.75 x 10.90 (R/H KEY) £337.68 Add to
105 118870086/0 AXLE BUSH £23.60 Add to
106 118870085/0 AXLE BUSH £17.62 Add to
107 118870100/0 GEAR 53T £369.28 Add to
109 118870084/0 RETAINING RING 1.25 £9.80 Add to
110 1139-2204-01 SEAL RING £5.90 Add to
120 118870066/0 BRAKE PAD £18.07 Add to
121 118870101/0 BRAKE £44.04 Add to
122 118870067/0 BRAKE PAD PLATE £9.80 Add to
124 118870119/0 BRAKE CALLIPER £90.41 Add to
125 118870069/0 BRAKE PIN £11.05 Add to
126 118870062/0 SPACER £9.80 Add to
127 118870077/0 SCREW 0.250-20 x 2.0 HFS PATCH £10.01 Add to
128 118870071/0 BOLT 1/4-20 x 1 (PATCH) £9.80 Add to
129 118870076/0 COMPRESSION SPRING £9.80 Add to
130 118870064/0 BRAKE ARM £28.67 Add to
131 1139-2011-01 FLAT WASHER £5.18 Add to
132 118870068/0 NUT 5/16-24 £14.34 Add to
133 118870065/0 COTTER PIN 3/32 x 3/4 £9.80 Add to
134 118870075/0 BRAKE ARM SPRING £8.82 Add to
180 118870112/0 SPRING PLATE £29.92 Add to
195 118870126/0 GEARS & PINS KIT £130.04 Add to
205 118870124/0 SEAL KIT £143.35 Add to
All our prices include VAT
