Transmission 1

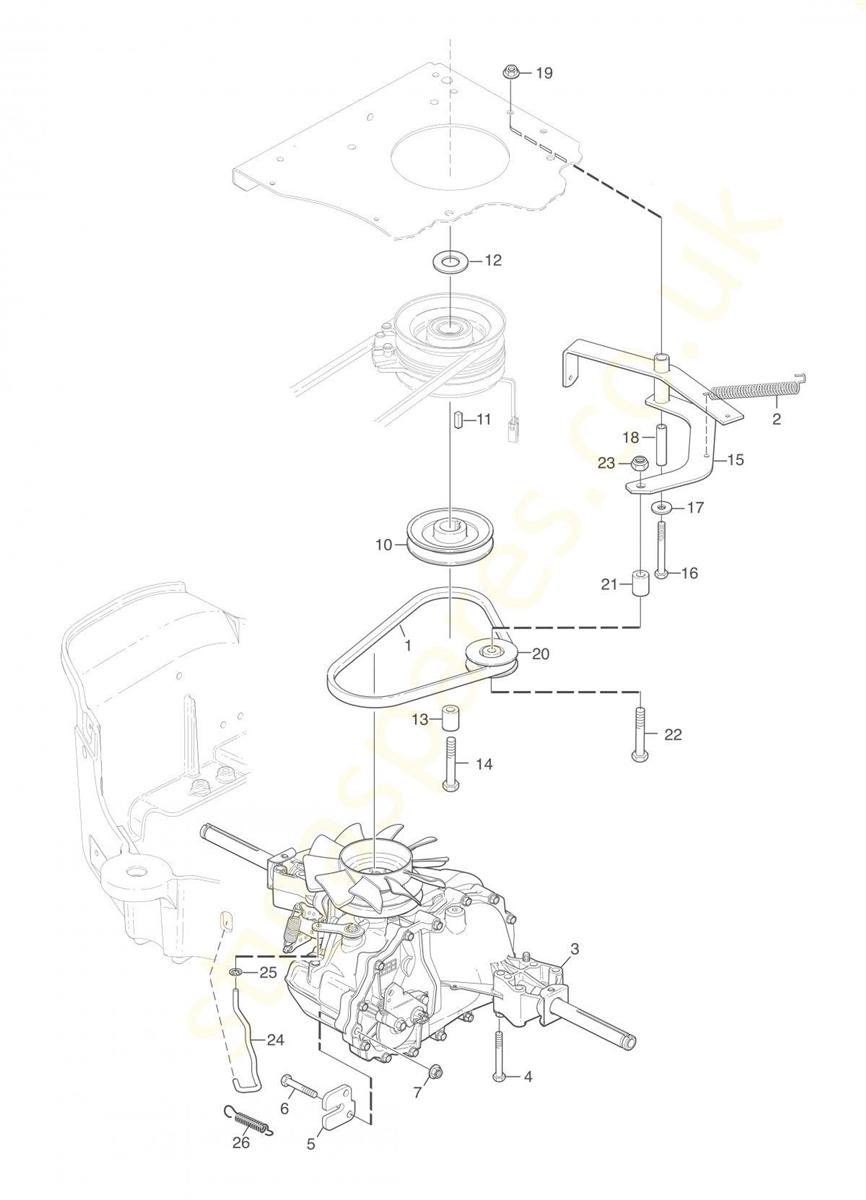

Transmission 1 assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-9168-01TRANSMISSION BELT£19.32 Add to
0021131-1507-00SPRING£27.36 Add to
0031137-0890-01TRANSAXLE T2£667.20 Add to
0049960-0860-12SCREW M8 x 60£2.82 Add to
0051137-0897-01PLAT PLATE£4.92 Add to
006112691400/0HEX-HEAD SCREW M8 x 50£2.46 Add to
0071137-0155-01SPACER£4.62 Add to
0101137-0714-01ENGINE PULLEY£20.76 Add to
0119600-0251-00KEY L=3/4"£5.04 Add to
0121134-5017-01WASHER 40 x 11.5 x 4£3.66 Add to
0131137-0835-01SPACER£4.56 Add to
0149987-5332-16SCREW U6S 7/16" UNF x 32£2.70 Add to
0151137-0769-01TENSION ARM£24.12 Add to
016112793905/0HEX-HEAD SCREW M8 x 70 GEOMET321A£2.82 Add to
017112523060/0WASHER M8 8.4 x 24 x 2£2.46 Add to
0181134-1565-08SPACER£8.40 Add to
019112155000/0LOW SELF-LOCKING NUT M8£2.46 Add to
0201134-3459-01TENSION PULLEY£44.28 Add to
0211134-5210-05SPACER£6.44 Add to
022112692395/1SCREW M10 X 60 L=60MM£3.60 Add to
0239739-1031-22NUT (M10)£2.46 Add to
0241137-0834-01ROD£5.84 Add to
025112604896/0STARLOCK WASHER D=6£2.46 Add to
0261137-0936-01SPRING£2.70 Add to
