Engine

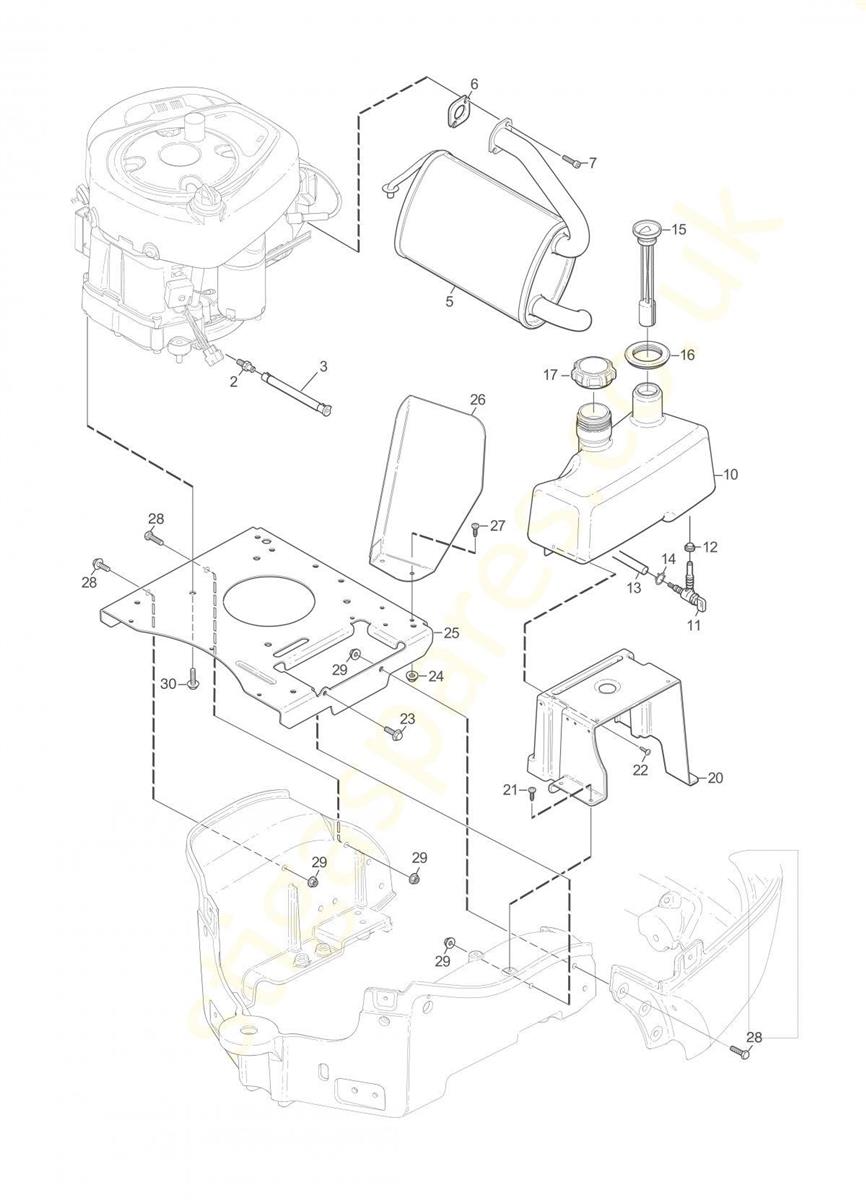

Engine assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 1134-5825-01 NIPPLE £38.58 Add to
003 1137-1018-01 Oil Discharge Extension £9.18 Add to
005 1137-0930-01 MUFFLER £89.86 Add to
006 1134-0433-00 MUFFLER GASKET £7.13 Add to
007 1134-4930-01 SCREW £3.60 Add to
010 1137-0815-01 FUEL TANK £43.99 Add to
011 1134-3224-01 FUEL SHUT-OFF VALVE (B&S) £24.74 Add to
012 1134-3225-01 GROMMET £6.30 Add to
013 1134-2975-15 FUEL HOSE (L=1400) £23.65 Add to
014 9578-0023-02 HOSE CLAMP [12MM] (B&S) £13.25 Add to
015 1137-0838-01 FUEL LEVEL INDICATOR £35.99 Add to
016 1135-2528-01 RUBBER SLEEVE £4.86 Add to
017 1134-5532-01 FUEL TANK CAP £22.94 Add to
020 1137-0914-01 TANK BRACKET £19.55 Add to
021 9893-0616-16 SCREW M6 X 16 £3.60 Add to
022 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
023 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
024 112292102/0 HEXAGON NUT M6 £3.60 Add to
025 1137-0777-01 ENGINE PLATE £51.65 Add to
026 1137-1026-01 TANK GUARD £25.30 Add to
027 9893-0616-16 SCREW M6 X 16 £3.60 Add to
028 112793301/0 HEX-HEAD SCREW M8 X 25 £3.60 Add to
029 1137-0155-01 SPACER £4.81 Add to
030 9955-3725-16 SCREW 3/8" X 25 £3.60 Add to
