Electrical Parts

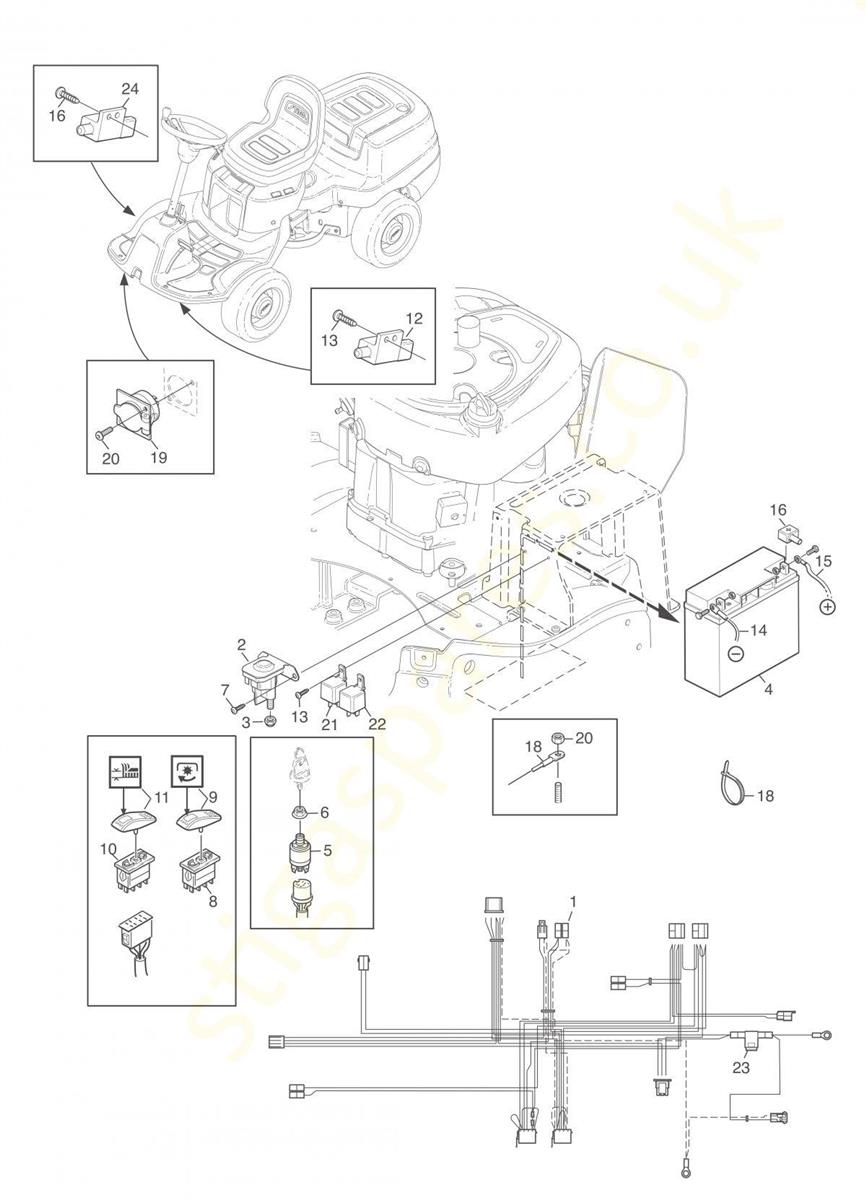

Electrical Parts assembly details for Stiga Stiga Park 220 2F5820321 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 187040307/0 WIRING LOOM £153.84 Add to
002 118736112/0 SOLENOID £20.23 Add to
003 9743-5121-32 LOCKING NUT 5/16" £3.60 Add to
004 118120007/0 BATTERY 12V 18AH £103.68 Add to
005 1134-4093-01 IGNITION SWITCH £80.59 Add to
006 1134-4749-01 NUT £3.60 Add to
007 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
008 9400-0282-01 SWITCH C/W DIODE £60.60 Add to
009 9400-0343-01 SWITCH COVER-PTO £7.53 Add to
010 9400-0282-01 SWITCH C/W DIODE £60.60 Add to
011 9400-0280-03 SWITCH COVER-HEIGHT ADJUST £15.24 Add to
012 1134-3399-01 SWITCH £45.36 Add to
013 112735654/0 SELF-TAPPING SCREW M5 X 16 £3.60 Add to
014 1134-2167-02 CABLE (-) £11.13 Add to
015 1134-0234-02 BATTERY CABLE (+) L=395MM £16.49 Add to
016 1134-2310-01 GUARD CAP (+) £10.16 Add to
017 112361005/0 HEXAGON NUT 1/4" UNC £3.60 Add to
018 133320027/0 CABLE CLAMP £4.26 Add to
019 1134-7535-01 FEMALE TERMINAL £13.98 Add to
020 112735105/0 SELF-TAP SCREW TE 3.5 X 16 (112735101/0) £3.60 Add to
021 1134-2871-01 DECK RELAY [4 SPADE] £46.72 Add to
022 1134-2871-03 STARTER RELAY [5 SPADE] £46.72 Add to
023 1134-3496-06 FUSE 20A YELLOW £6.26 Add to
024 1134-3399-02 SWITCH £45.35 Add to
025 112735654/0 SELF-TAPPING SCREW M5 X 16 £3.60 Add to
