Transmission 2

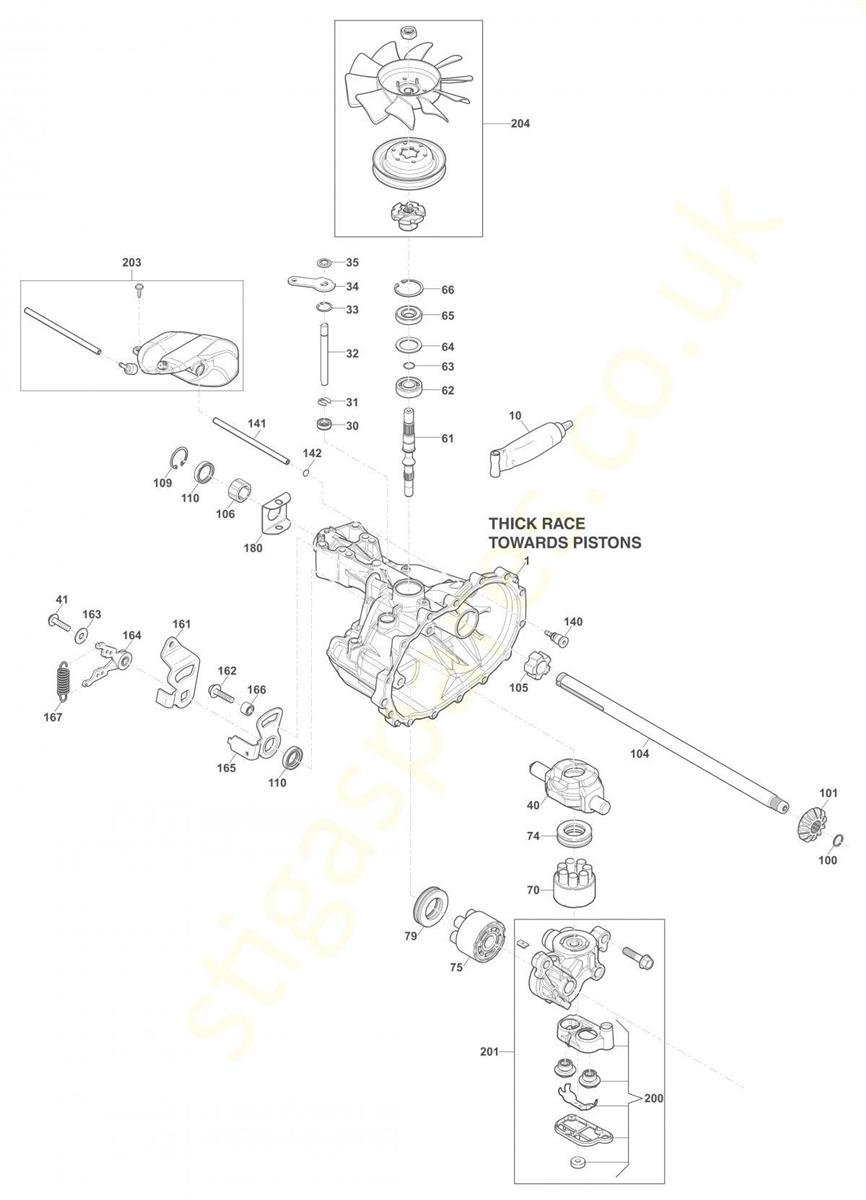

Transmission 2 assembly details for Mountfield stiga-park-120-2f5820241 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 118870120/0 MAIN HOUSING £1,525.68 Add to
010 1139-2022-01 SEALANT TUBE £104.16 Add to
030 118870079/0 SEAL 0.375 x 0.75 x 0.25 £21.94 Add to
031 118870081/0 RETAINING RING 0.375 £9.80 Add to
032 1139-2203-01 BY-PASS ROD £17.41 Add to
033 118870080/0 RETAINING RING 0.750 £9.80 Add to
034 118870091/0 BY-PASS ARM £12.06 Add to
035 118870082/0 RETAINING RING 0.750 £9.80 Add to
040 118870090/0 SWASH PLATE £181.25 Add to
041 118870083/0 SCREW 5/16-24 x 1.00 £15.17 Add to
061 118870092/0 INPUT DRIVE SHAFT £193.48 Add to
062 1139-2001-01 Ball Bearing N/A POA
063 1139-2003-01 Wire Retaining Ring N/A POA
064 1139-2004-01 Spacer N/A POA
065 1139-2000-01 SEAL RING £24.76 Add to
066 1139-2002-01 Retaining Ring N/A POA
070 118870125/0 PUMP BLOCK ASSEMBLY £185.93 Add to
074 118870093/0 THRUST BEARING 27 x 47 x 14 £92.95 Add to
075 1139-2063-01 CYLINDER BLOCK £177.78 Add to
079 1139-2021-01 THRUST BEARING £34.91 Add to
100 118870072/0 RETAINING RING £14.34 Add to
101 118870063/0 GEAR 12T £67.38 Add to
104 118870115/0 AXLE SHAFT 0.75 x 16.48 (L/H KEY) £317.09 Add to
105 118870086/0 AXLE BUSH £23.60 Add to
106 118870085/0 AXLE BUSH £17.62 Add to
109 118870084/0 RETAINING RING 1.25 £9.80 Add to
110 1139-2204-01 SEAL RING £5.90 Add to
140 1139-2038-01 FITTING 1381-1174HST £37.43 Add to
141 118870102/0 TUBE 0.16 x 0.28 x 5.5 £13.50 Add to
142 1139-2075-01 O RING £7.09 Add to
161 118870103/0 CONTROL ARM £49.63 Add to
162 1139-2026-01 BOLT £5.52 Add to
163 1139-2011-01 FLAT WASHER £5.18 Add to
164 118870107/0 BI-DIRECTIONAL RETURN ARM £49.63 Add to
165 118870108/0 NEUTRAL ARM £40.97 Add to
166 118870104/0 BUSH 0.315 x 0.618 x 0.390 £12.06 Add to
167 118870089/0 EXTENSION SPRING £20.36 Add to
180 118870112/0 SPRING PLATE £29.92 Add to
200 118870123/0 FILTER KIT £56.70 Add to
201 118870127/0 CENTER SECTION KIT £770.30 Add to
203 118870122/0 EXPANSION TANK KIT £136.84 Add to
204 118870061/0 HYDRO FAN KIT £260.77 Add to
All our prices include VAT
