Transmission 1

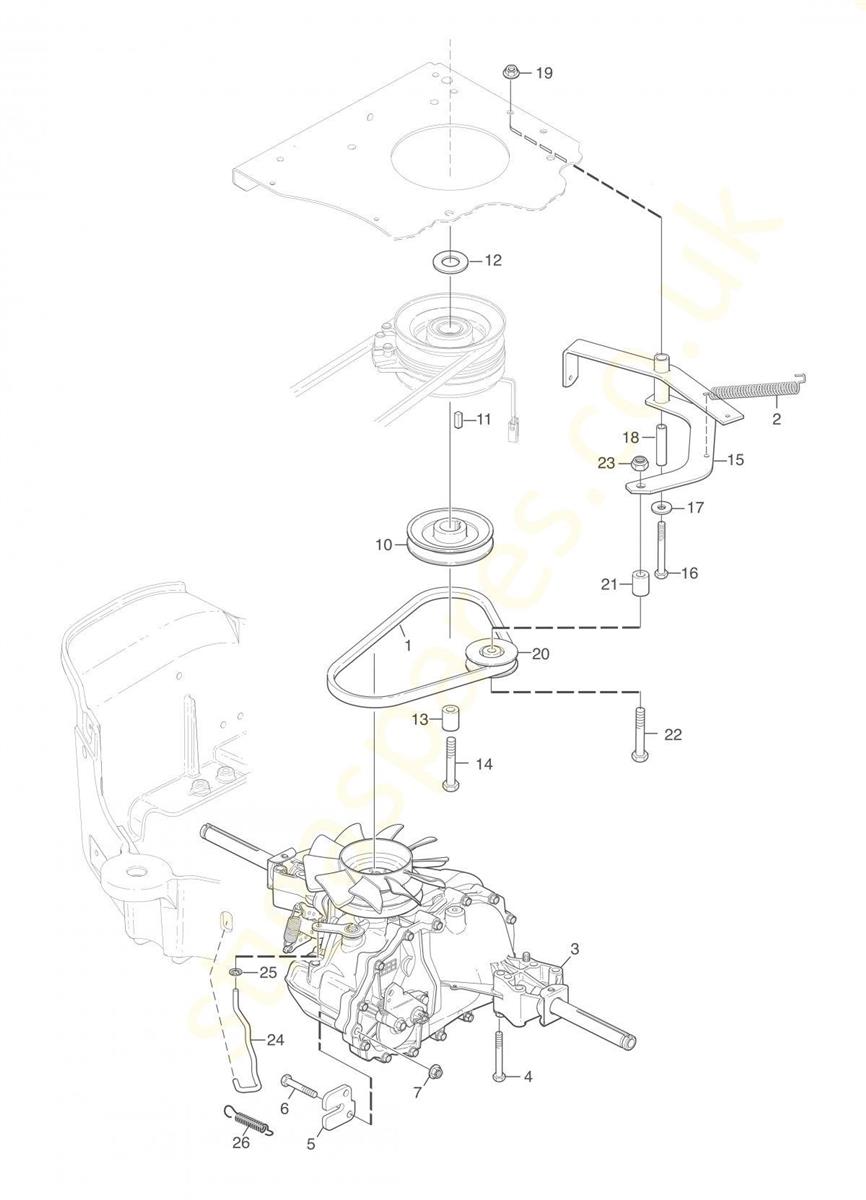

Transmission 1 assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-9168-01 TRANSMISSION BELT £15.76 Add to
002 1131-1507-00 SPRING £21.71 Add to
003 1137-0890-01 TRANSAXEL TRANSMISSION UNIT £606.00 Add to
004 9960-0860-12 SCREW M8 X 60 £3.60 Add to
005 1137-0897-01 PLAT PLATE £4.92 Add to
006 112691400/0 HEX-HEAD SCREW M8 x 50 £3.89 Add to
007 1137-0155-01 SPACER £4.81 Add to
010 1137-0714-01 ENGINE PULLEY £16.49 Add to
011 9600-0251-00 KEY L=3/4" £3.60 Add to
012 1134-5017-01 WASHER 40 X 11.5 X 4 (B&S) £3.60 Add to
013 1137-0835-01 SPACER £4.21 Add to
014 9987-5332-16 SCREW U6S 7/16" UNF X 32 £3.60 Add to
015 1137-0769-01 TENSION ARM £16.49 Add to
016 112793905/0 HEX-HEAD SCREW M8 X 70 £3.60 Add to
017 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
018 1134-1565-08 SPACER £8.77 Add to
019 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
020 1134-3459-01 TENSION PULLEY £37.73 Add to
021 1134-5210-05 SPACER £6.44 Add to
022 112692395/1 SCREW M10 X 60 L=60MM £3.60 Add to
023 9739-1031-22 NUT M10 £3.60 Add to
024 1137-0834-01 ROD £5.84 Add to
025 112604896/0 STARLOCK WASHER D=6 £3.60 Add to
026 1137-0936-01 SPRING £4.21 Add to
