Steering

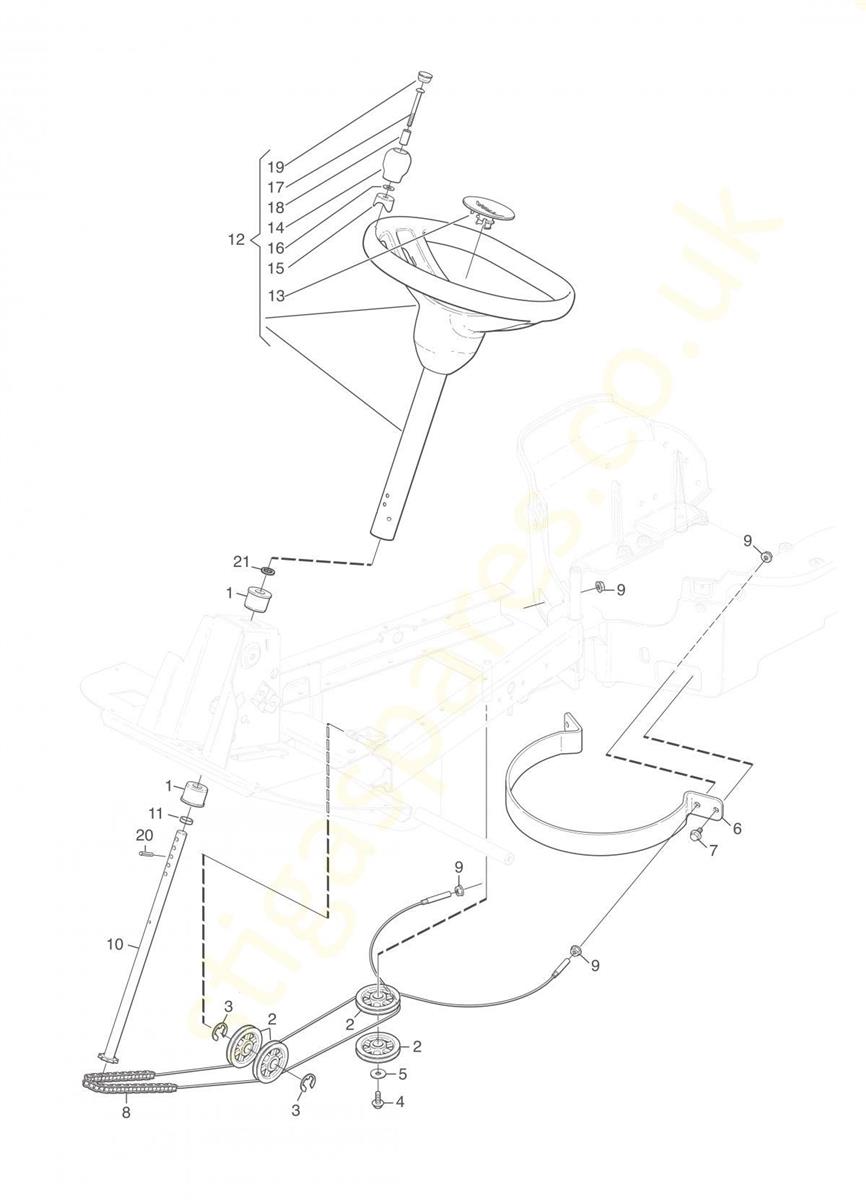

Steering assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1134-1901-01 PLASTIC BUSH £11.04 Add to
002 1134-9025-01 STEERING PULLEY [2 PCS] £25.14 Add to
003 9653-0001-04 CIRCLIP 3/4" £3.60 Add to
004 1134-4242-01 SPACER WASHER £3.60 Add to
005 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
006 1137-0749-01 WIRE BRACKET £32.54 Add to
007 1134-4242-01 SPACER WASHER £3.60 Add to
008 1134-6378-02 STEERING CHAIN/CABLE ASSEMBLY £30.25 Add to
009 1137-0155-01 SPACER £4.81 Add to
010 1137-0905-01 STEERING ROD £25.30 Add to
011 1134-2837-01 SPACER £10.82 Add to
012 387962001/0 STEERING WHEEL £86.04 Add to
013 1137-1000-01 STEERING WHEEL CAP £8.11 Add to
014 1134-3751-01 KNOB £4.51 Add to
015 1137-1005-01 KNOB ATTACHMENT £4.33 Add to
016 112523040/0 WASHER M6 6.6 X 18 X 1.6 £3.60 Add to
017 9997-0680-12 SCREW M6S £3.60 Add to
018 1134-1565-14 SPACER £4.33 Add to
019 9403-0062-01 CAP £4.33 Add to
020 9595-0210-00 LOCATING PIN £6.56 Add to
021 9699-0103-02 WASHER (0.5MM) £3.60 Add to
