PTO

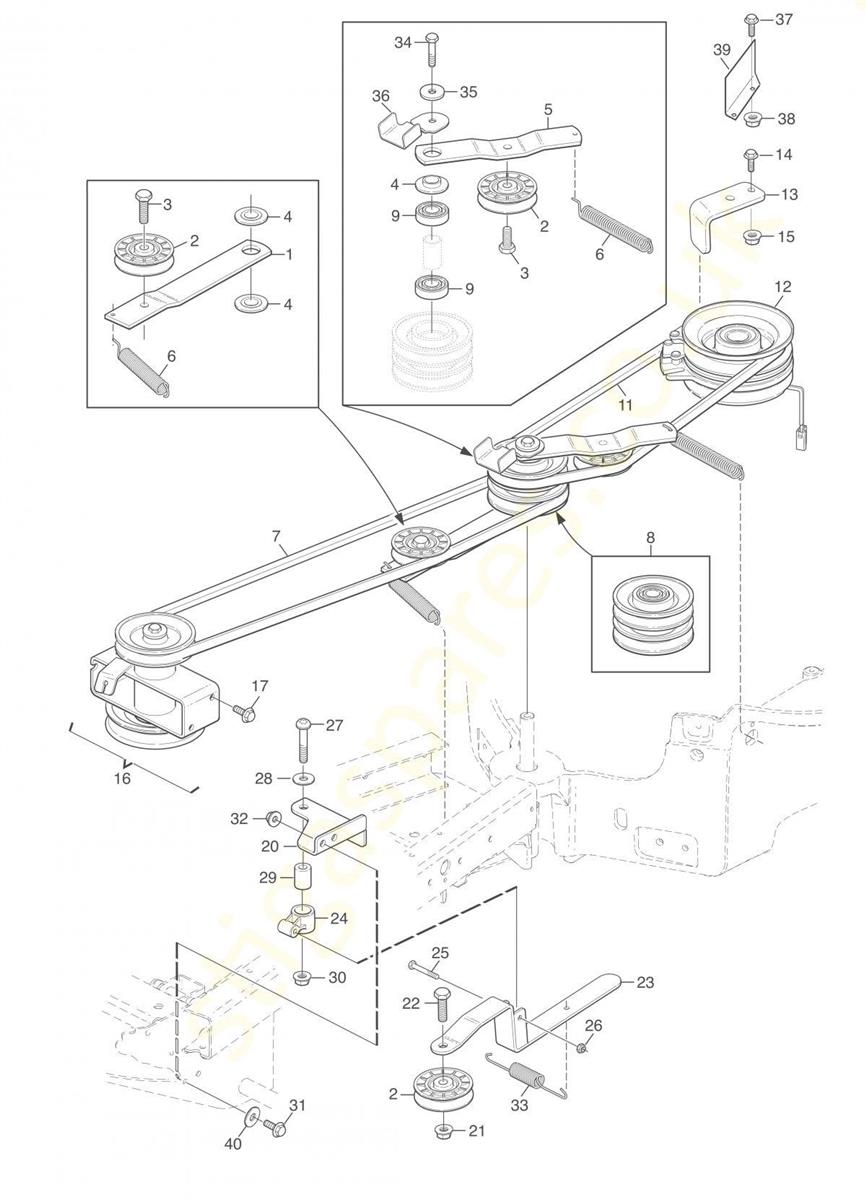

PTO assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1137-0791-01 TENSION WHEEL ARM £15.36 Add to
002 1134-2989-02 TENSION PULLEY [GREY] £28.30 Add to
003 9959-1025-16 SCREW M6SF M10 X 25 TL £3.60 Add to
004 1134-5548-01 SPACER £14.74 Add to
005 1137-0918-01 TENSION WHEEL ARM £10.38 Add to
006 1134-5824-01 SPRING £6.31 Add to
007 1134-9167-01 PTO DRIVE BELT £17.21 Add to
008 1137-0717-01 CENTRE PULLEY ASSEMBLY £47.06 Add to
010 1134-0051-08 NA NA N/A POA
011 1134-9172-01 PTO DRIVE BELT £23.04 Add to
012 1137-0863-01 MAGNETIC CLUTCH £178.52 Add to
013 1137-0754-01 BRACKET £6.61 Add to
014 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
015 1137-0155-01 SPACER £4.81 Add to
016 1137-0741-01 INTERMEDIATE PULLEY £86.81 Add to
017 1134-4242-01 SPACER WASHER £3.60 Add to
020 387773515/0 PULLEY BRACKET £8.40 Add to
021 9739-1031-22 NUT M10 £3.60 Add to
022 112794400/0 HEX-HEAD SCREW 10 X 35 £3.89 Add to
023 387318257/0 PULLEY LEVER £18.47 Add to
024 1134-6314-01 TENSION ARM ATTACHMENT £20.70 Add to
025 112689500/0 SCREW M6 X 40 £3.60 Add to
026 112154510/0 LOW SELF-LOCKING NUT M6 £3.60 Add to
027 9930-1050-12 SCREW £3.60 Add to
028 112521360/0 WASHER M10 10.5 X 20 X 2 £3.60 Add to
029 1134-4619-01 SPACER £9.82 Add to
030 9739-1031-22 NUT M10 £3.60 Add to
031 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
032 1137-0155-01 SPACER £4.81 Add to
033 1137-1029-01 SPRING £4.72 Add to
034 1134-7829-01 SCREW C/W LOCK £3.89 Add to
035 1134-5127-01 WASHER £3.60 Add to
036 1137-0800-01 BRACKET £4.78 Add to
037 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
038 1137-0155-01 SPACER £4.81 Add to
039 1137-1055-01 Heat Guard Only Park 120 £11.03 Add to
040 112521350/0 WASHER M8 8.4 X 16 X 1.6 £3.60 Add to
