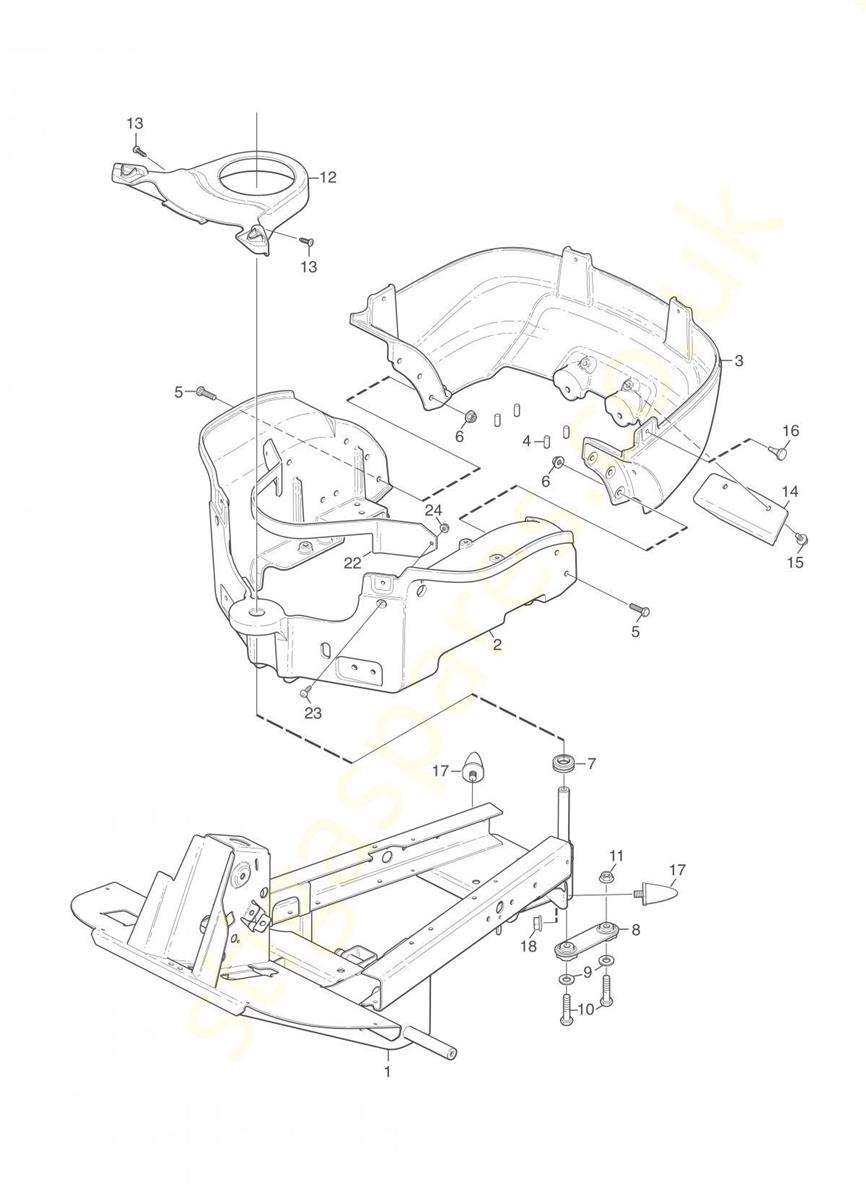

Frame assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 387800019/1 Frame-Front £332.40 Add to
002 1137-0869-01 REAR FRAME FRONT PART £215.20 Add to
003 1137-0870-01 REAR FRAME REAR PART £184.63 Add to
004 112390007/0 ROUND THREAD INSERT £3.60 Add to
005 9959-0825-16 SCREW M6SF M8 X 25 TL L=25MM £3.60 Add to
006 1137-0155-01 SPACER £4.81 Add to
007 9547-0008-01 BEARING £8.16 Add to
008 1137-0963-01 LINK PLATE £24.14 Add to
009 9699-0109-02 WASHER 10.5 X 40 X 2 £3.60 Add to
010 9997-1040-16 SCREW M6S 10 X 40 L=40MM £5.41 Add to
011 9739-1031-22 NUT M10 £3.60 Add to
012 1137-0906-01 BELT GUIDE £6.30 Add to
013 9893-0616-16 SCREW M6 X 16 £3.60 Add to
014 1137-0893-01 TOWING PLATE £10.38 Add to
015 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
016 127275000/0 RUBBER GROMMET £4.33 Add to
017 1137-0064-01 RUBBER CONE £28.76 Add to
018 1137-0155-01 SPACER £4.81 Add to
022 1137-0923-01 BELT PROTECTION GUARD £10.02 Add to
023 112727801/0 SCREW TCB TORX M6 X 20 £3.60 Add to
024 112292102/0 HEXAGON NUT M6 £3.60 Add to
