Electrical Parts

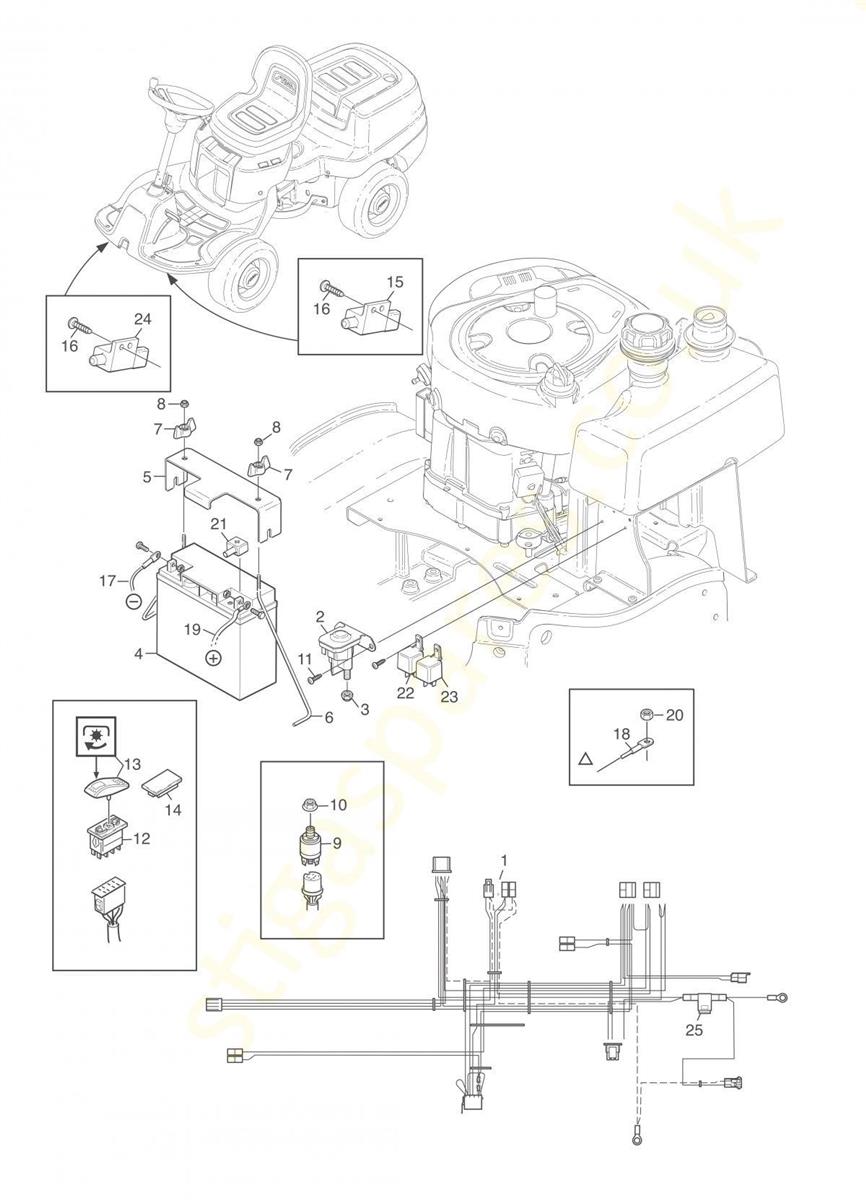

Electrical Parts assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187040306/0	WIRING LOOM	£225.12	Add to
002	118736112/0	SOLENOID	£39.80	Add to
003	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
004	118120007/0	BATTERY 12V 18AH [No Returns on This item]	£103.58	Add to
005	1137-1056-01	BATTERY PLATE	£26.18	Add to
006	1137-1057-01	BATTERY LOOP	£8.84	Add to
007	1134-4481-02	WING NUT	£6.14	Add to
008	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
009	1134-4093-01	IGNITION SWITCH	£67.05	Add to
010	1134-4749-01	NUT	£5.05	Add to
011	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
012	9400-0282-01	SWITCH C/W DIODE	£76.59	Add to
013	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
014	1134-4129-01	COVER	£6.14	Add to
015	1134-3399-01	SWITCH	£45.26	Add to
016	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
017	1134-2167-03	CABLE (-)	£9.57	Add to
018	1137-0664-01	CABLE (+)	£13.27	Add to
019	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
020	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
021	118564864/1	RED RUBBER TERMINAL COVER	£6.01	Add to
022	1134-2871-01	DECK RELAY [4 SPADE]	£45.26	Add to
023	1134-2871-03	STARTER RELAY [5 SPADE]	£45.26	Add to
024	1134-3399-02	SWITCH	£45.26	Add to
025	1134-3496-06	FUSE 20A	£2.06	Add to
