Controls 2

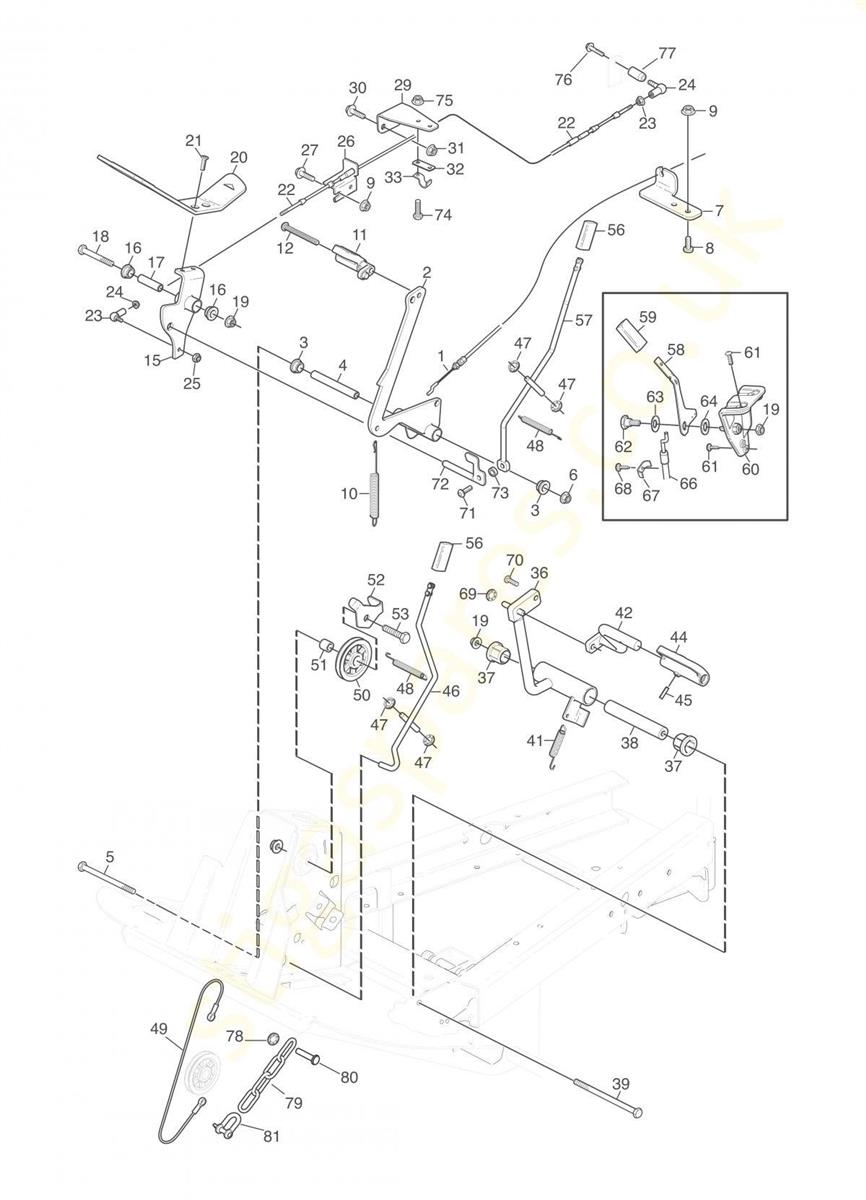

Controls 2 assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
052 1137-0713-02 BRACKET £4.72 Add to
053 112794300/0 SCREW TE M10 X 30 £3.60 Add to
054 9739-1031-22 NUT M10 £3.60 Add to
056 1137-0952-01 KNOB £4.33 Add to
057 1137-0837-01 PARKING BRAKE LEVER £14.18 Add to
058 1137-0894-01 THROTTLE CONTROL LEVER £4.55 Add to
059 1137-0952-01 KNOB £4.33 Add to
060 1137-0873-01 THROTTLE PLATE £5.08 Add to
061 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
062 1134-0240-00 SHOULDER SCREW £9.50 Add to
063 1134-4242-01 SPACER WASHER £3.60 Add to
064 9665-0002-00 BOWL WASHER £3.60 Add to
065 9747-0831-02 Lock Nut £3.60 Add to
066 1134-4197-01 THROTTLE CABLE £20.21 Add to
067 9500-9991-00 CABLE CLAMP £7.55 Add to
068 112735654/0 SELF-TAPPING SCREW M5 X 16 £3.60 Add to
069 112604899/0 STARLOCK WASHER D=8 £3.60 Add to
070 9930-0820-16 SCREW £3.60 Add to
071 9893-0616-16 SCREW M6 X 16 £3.60 Add to
072 1137-0825-01 Spak Lever £6.30 Add to
073 1137-0872-01 SPACER £4.33 Add to
074 112789008/0 SCREW £3.60 Add to
075 9739-0531-22 NUT M5 £3.60 Add to
076 112800815/0 SCREW TE FL M8 X 16 £3.60 Add to
077 1134-4013-01 SPACER £17.62 Add to
078 112604899/0 STARLOCK WASHER D=8 £3.60 Add to
079 1134-6368-01 Chain £10.82 Add to
080 137510315/0 SPRING GUIDE PIN £5.21 Add to
081 1134-2629-01 LIFT LINK £19.18 Add to
