Body works

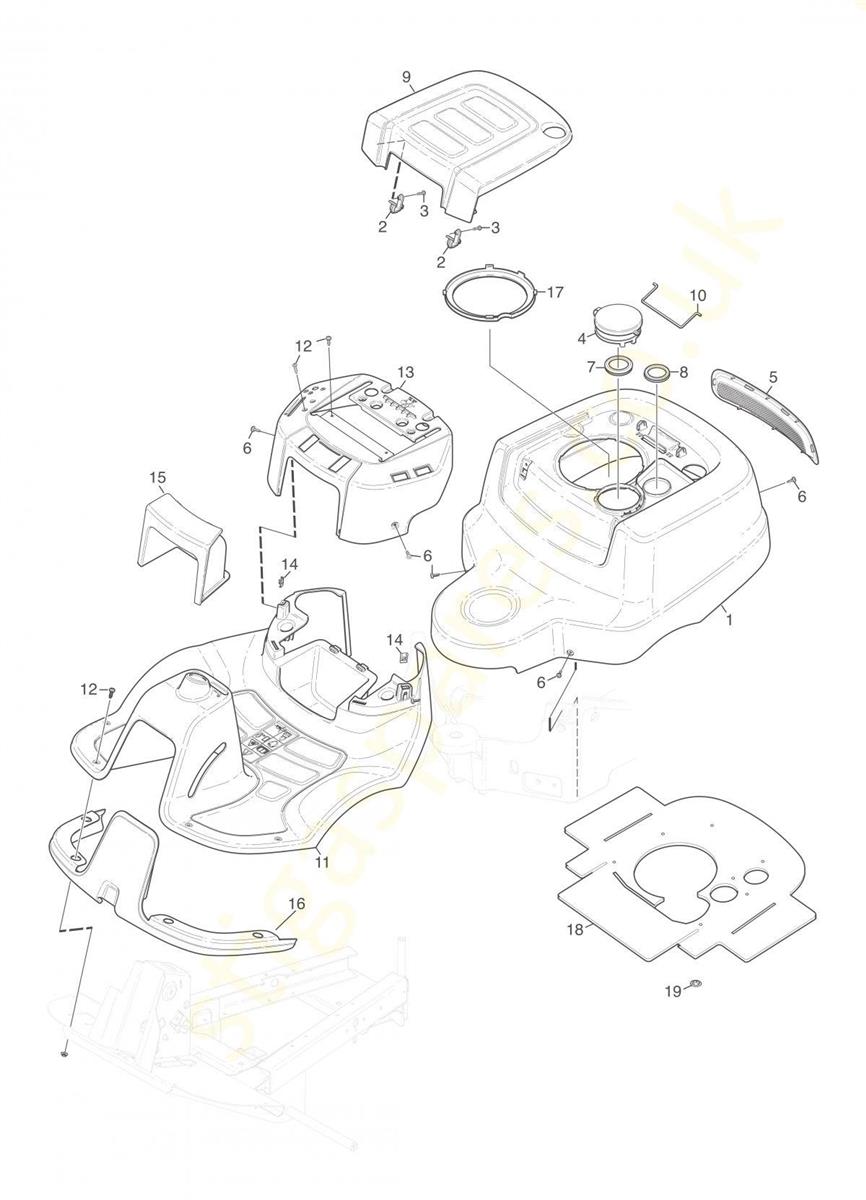

Body works assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 1137-0854-01 ENGINE HOOD [YELLOW] £82.21 Add to
002 1137-0861-01 SPRING LATCH £4.33 Add to
003 112728697/0 SELF-TAP SCREW PT TORX K50 X 16 £3.60 Add to
004 1137-0859-01 OIL CAP £4.48 Add to
005 337110314/0 Rear Cover £8.88 Add to
006 9893-0616-16 SCREW M6 X 16 £3.60 Add to
007 1137-1015-01 PACKING GASKET £5.84 Add to
008 1137-1028-01 PACKING GASKET £5.47 Add to
009 337110315/0 ENGINE COVER £20.69 Add to
010 1137-0860-01 HINGE £4.72 Add to
011 337110316/0 FOOTBOARD COVER [GREY] £84.97 Add to
012 9893-0616-16 SCREW M6 X 16 £3.60 Add to
013 337110317/0 CENTRAL COVER [GREY] £39.22 Add to
014 1134-4176-01 CLIP £6.26 Add to
015 337207101/0 HOLDER COVER £7.78 Add to
016 337502506/0 FRONT BUMPER (YELLOW) £15.78 Add to
017 1137-0856-03 AIR DUCT VILLA 320 £3.95 Add to
