Assembly parts

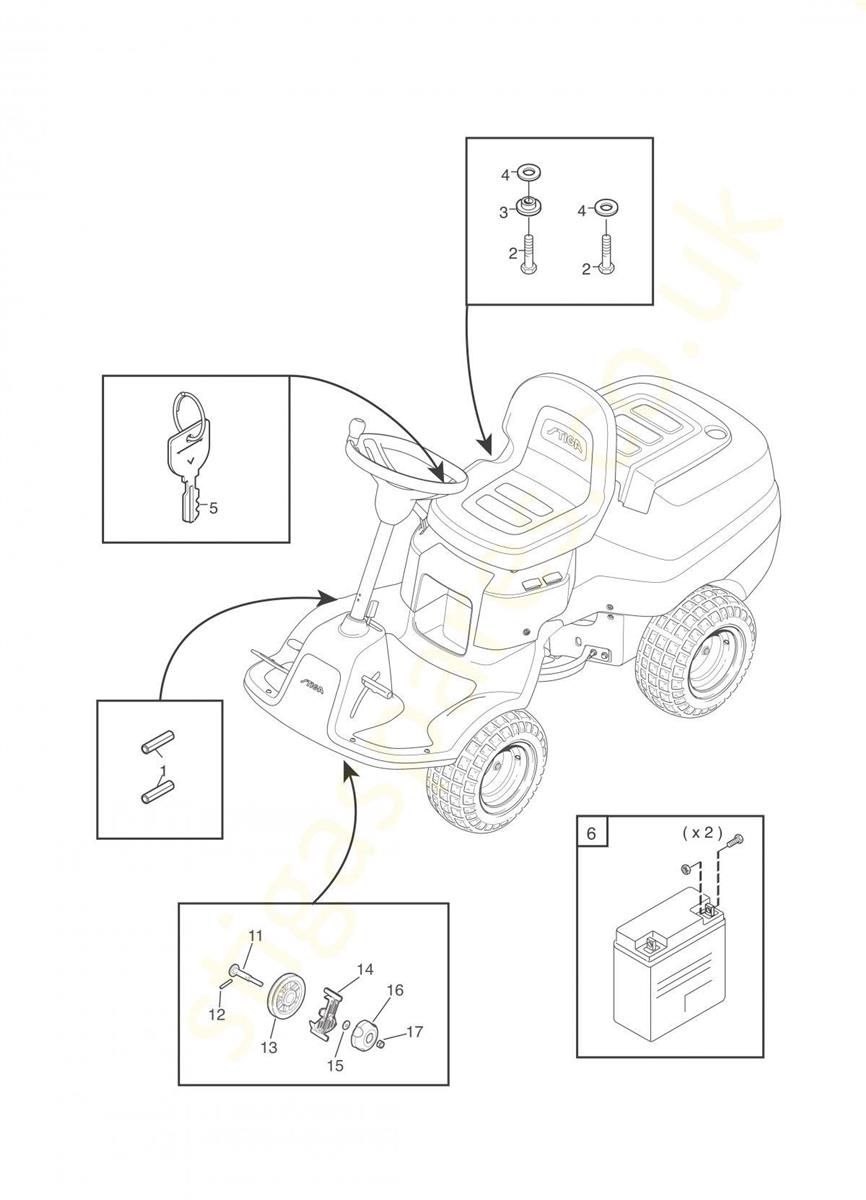

Assembly parts assembly details for Stiga Stiga Park 120 2F5820241 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 9595-0262-00 LOCATING PIN £3.60 Add to
002 9959-0820-16 SCREW M6SF M8 X 20 L=20MM £3.60 Add to
003 1134-4185-01 FLANGE WASHER £6.40 Add to
004 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
005 1134-4734-01 IGNITION KEY £17.58 Add to
006 1134-6113-01 BATTERY SCREW PACK £14.18 Add to
011 137510307/0 PULLEY PIN £5.11 Add to
012 112642450/0 SPRING PIN D=3 x 14 £3.60 Add to
013 1134-0072-02 STEERING PULLEY £9.47 Add to
014 337774098/0 BRACKET £3.95 Add to
015 112523060/0 WASHER M8 8.4 X 24 X 2 £3.60 Add to
016 322399804/1 HANDWHEEL w/o NUT M8 [BLACK] £6.29 Add to
017 112155000/0 LOW SELF-LOCKING NUT M8 £3.60 Add to
