Frame assembly details for Stiga Villa 520 HST 2015 (13-5721-71) 2015 model

Parts list

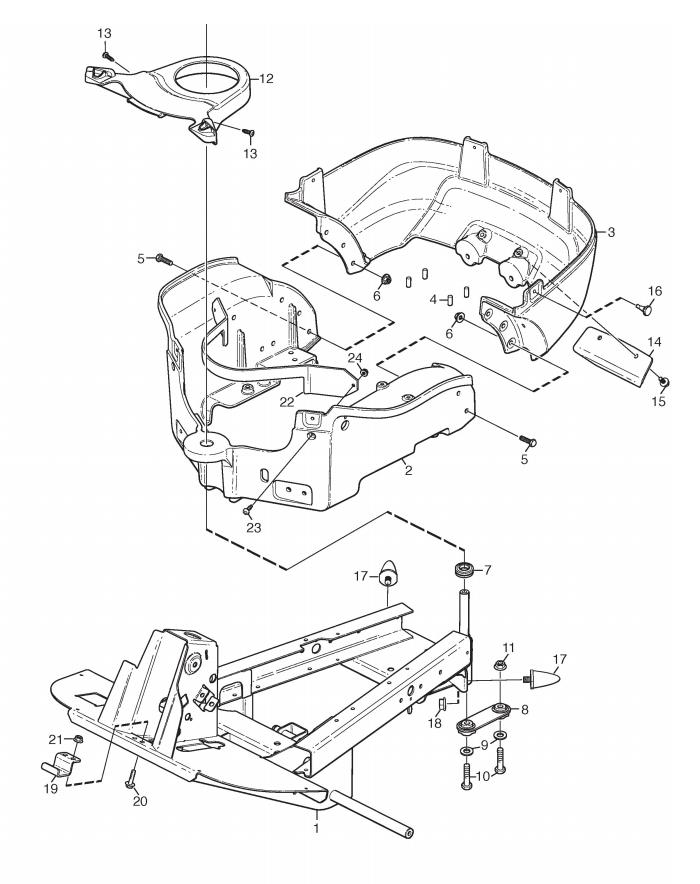

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

0011137-0676-01FRONT FRAME£391.20 Add to
002387800029/1REAR FRAME FRONT SIDE£445.20 Add to
0031137-0870-01REAR FRAME REAR PART£335.41 Add to
0049641-0001-01P-NUT£2.76 Add to
0059959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.76 Add to
006112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0079547-0008-01BEARING£9.98 Add to
0081137-0963-01LINK PLATE£36.80 Add to
0099699-0109-02WASHER 10.5 x 40 x 2£3.00 Add to
0109997-1040-16SCREW M6S 10 x 40£7.32 Add to
0119739-1031-22NUT M10£3.00 Add to
0121137-0906-01BELT GUIDE£9.48 Add to
0139893-0616-16SCREW M6 x 16£3.12 Add to
0141137-0893-01TOWING PLATE£17.33 Add to
0159959-0820-16SCREW M6SF M8 x 20 TL£2.76 Add to
016127275000/0RUBBER GROMMET FOR BRAKE PEDAL£4.08 Add to
0171137-0064-01RUBBER CONE£38.40 Add to
018112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0191137-0916-01BRACKET£10.08 Add to
0209959-0820-16SCREW M6SF M8 x 20 TL£2.76 Add to
021112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
023112727801/0SCREW TCB TORX M6 x 20£2.76 Add to
024112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.76 Add to
