Controls

Controls assembly details for Stiga Villa 520 HST 2015 (13-5721-71) 2015 model

Parts list

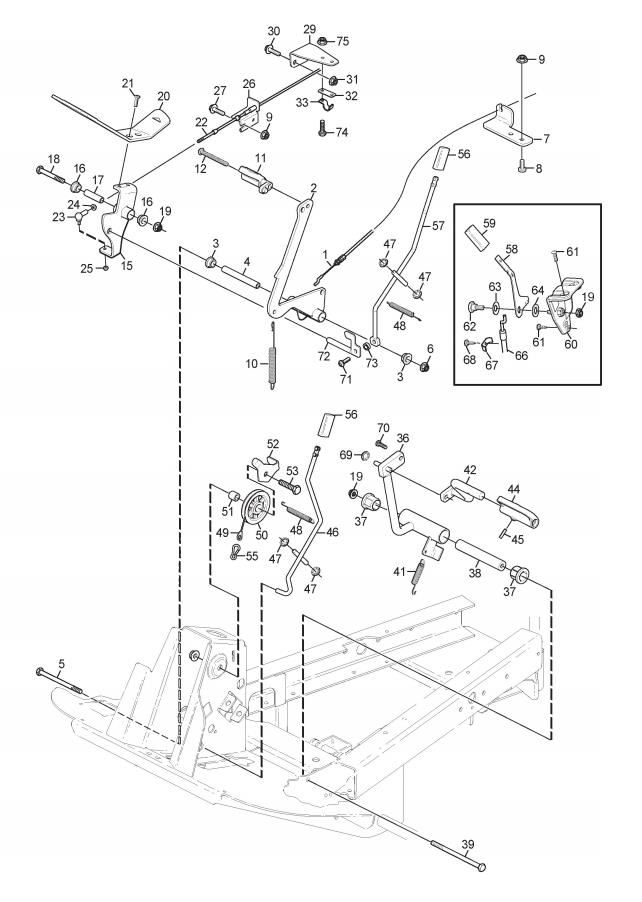

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0992-01BRAKE CABLE£37.20 Add to
0031134-6313-01BEARING£7.44 Add to
0059997-0811-02SCREW M6S M8 x 110£4.20 Add to
006112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0089959-0620-16SCREW£3.00 Add to
009112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.76 Add to
0101131-1507-00SPRING£31.20 Add to
0111137-0959-01PARKING BRAKE PEDAL£5.16 Add to
0129930-0870-12SCREW M8 x 70£2.84 Add to
0161134-6313-01BEARING£7.44 Add to
018112691800/0HEX-HEAD SCREW M8 x 60£2.76 Add to
019112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
020337506741/0HYDROSTATIC PEDAL£31.20 Add to
0219893-0616-16SCREW M6 x 16£3.12 Add to
0221134-2766-10SPEED CONTROL CABLE£77.62 Add to
0239570-0001-00ELBOW LINK£17.60 Add to
0249739-0531-22NUT M5£3.12 Add to
025112154330/0LOW SELF-LOCKING NUT M5 UNI7474 ACC.6S£2.76 Add to
0261134-6317-01WIRE BRACKET£8.64 Add to
0279959-0620-16SCREW£3.00 Add to
028112292102/0HEXAGON NUT M6 WITH EXAGONAL FLANGE£2.76 Add to
0309959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.76 Add to
031112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0321134-0266-00ATTACHING CLAMP£7.44 Add to
0331134-0267-00CLAMP PLATE£7.21 Add to
034112789008/0HEX-HEAD SCREW M5 x 20£2.76 Add to
0359739-0531-22NUT M5£3.12 Add to
0361137-0784-01LIFT PEDAL£53.50 Add to
0371134-0068-00BUSH£5.16 Add to
0399997-0814-02SCREW M6S M8 x 140£4.92 Add to
040112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0411134-5824-01SPRING£6.12 Add to
042387500008/0DECK LIFT PEDAL£49.20 Add to
0439930-0820-16SCREW£2.76 Add to
0441137-0958-01CUTTING DECK PEDAL£5.52 Add to
0459595-0230-00PIN£4.49 Add to
0461137-0792-01BRAKE ROD£19.44 Add to
047112604903/0STARLOCK WASHER D=10£2.76 Add to
0481137-1092-01SPRING£2.88 Add to
0491137-0917-01LIFT WIRE£30.00 Add to
0501134-0072-02STEERING PULLEY£7.80 Add to
0511134-0041-01BUSH£9.24 Add to
0521137-0713-02BRACKET£4.92 Add to
053112794300/0SCREW TE M10 x 30£2.64 Add to
0549739-1031-22NUT M10£3.00 Add to
0551137-1042-01SNAP HOOK£4.08 Add to
0561137-0952-01KNOB£2.76 Add to
0581137-0894-01THROTTLE CONTROL LEVER£4.08 Add to
0591137-0952-01KNOB£2.76 Add to
0601137-0873-01THROTTLE PLATE£5.88 Add to
061112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.76 Add to
0621134-0240-00SCREW£9.00 Add to
0631134-4242-01SPACER WASHER£5.16 Add to
0649665-0002-00BOWL WASHER£3.26 Add to
065112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
0661134-4197-01THROTTLE CABLE£21.00 Add to
0679500-9991-00CABLE CLAMP£7.80 Add to
068112735654/0SELF-TAPPING SCREW M5 x 16£3.36 Add to
069112604899/0STARLOCK WASHER RPCO 308 D=8£2.76 Add to
069112604899/0STARLOCK WASHER RPCO 308 D=8£2.76 Add to
0709930-0820-16SCREW£2.76 Add to
0719893-0616-16SCREW M6 x 16£3.12 Add to
0721137-0825-01LOCKING ARM£8.64 Add to
0731137-0872-01SPACER£2.76 Add to
074112789008/0HEX-HEAD SCREW M5 x 20£2.76 Add to
0759739-0531-22NUT M5£3.12 Add to
