Body Work

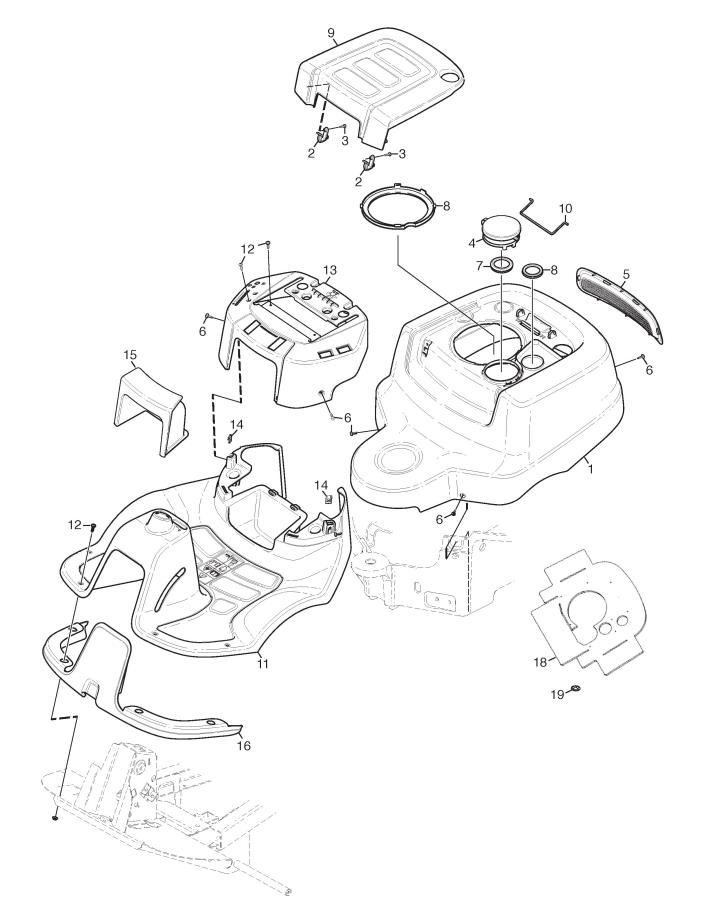

Body Work assembly details for Stiga Villa 520 HST 2015 (13-5721-71) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1137-0854-01	ENGINE HOOD [YELLOW]	£259.19	Add to
002	1137-0861-01	SPRING LATCH	£2.47	Add to
003	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
004	1137-0859-01	OIL CAP	£3.83	Add to
005	337110314/0	REAR COVER	£15.54	Add to
006	9893-0616-16	SCREW M6 x 16	£2.47	Add to
007	1137-1015-01	SLEEVE	£7.57	Add to
008	1137-1028-01	SLEEVE	£7.57	Add to
009	337110315/0	ENGINE COVER	£31.66	Add to
010	1137-0860-01	HINGE	£6.14	Add to
011	337110316/0	FOOTBOARD COVER [GREY]	£160.41	Add to
012	9893-0616-16	SCREW M6 x 16	£2.47	Add to
013	337110317/0	CENTRAL COVER [GREY]	£50.37	Add to
014	1134-4176-01	CLIP	£5.19	Add to
015	337207101/0	HOLDER COVER	£15.36	Add to
017	1137-0856-01	AIR DUCT	£4.61	Add to
018	1137-0965-01	ABSORBENT HOOD	£73.87	Add to
019	112604897/0	STARLOCK WASHER D=5	£2.06	Add to
