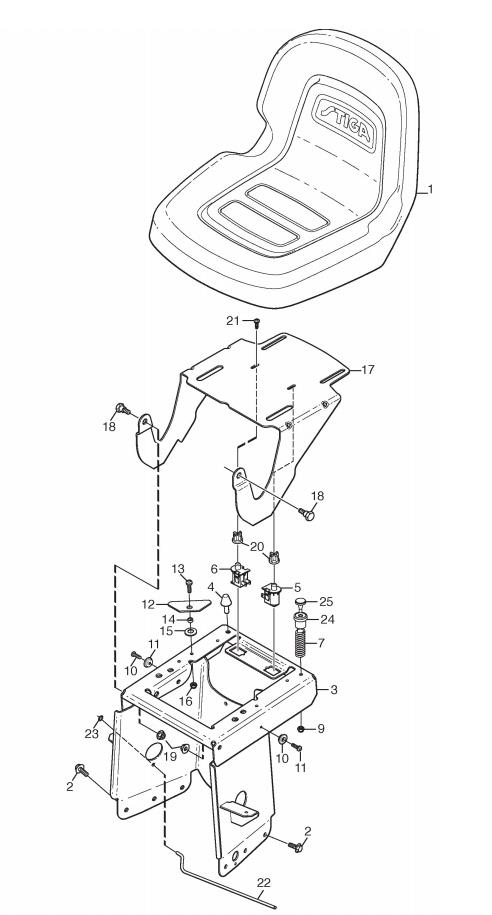

Seat assembly details for Stiga Villa 320 HST 2015 (13-5711-51 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001125722477/0STIGA SEAT£227.12 Add to
0021134-4242-01SPACER WASHER£4.78 Add to
003387785213/0SEAT BRACKET ASSEMBLY£130.00 Add to
0041134-3134-01RUBBER SPRING£12.27 Add to
0051134-3156-01SEAT SWITCH [BLACK]£45.26 Add to
0061134-3156-02SEAT SWITCH [GREY]£47.97 Add to
007137430102/0OPC SPRING£12.68 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0101134-3144-01PLASTIC SPACER£8.60 Add to
0119852-8013-16SCREW£2.47 Add to
0121137-0862-01SEAT LOCK£3.69 Add to
0139893-0616-16SCREW M6 x 16£2.47 Add to
0141137-0872-01SPACER£2.06 Add to
0159665-0002-00BOWL WASHER£2.61 Add to
016112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0171137-0867-01SEAT PLATE£70.61 Add to
0181134-0240-01SCREW£9.82 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0201137-0913-01BUTTON£1.79 Add to
021112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
0221137-1033-01LOOP£6.27 Add to
023112604897/0STARLOCK WASHER D=5£2.06 Add to
024137510303/1SPRING GUIDE PIN£13.24 Add to
025127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
