PTO

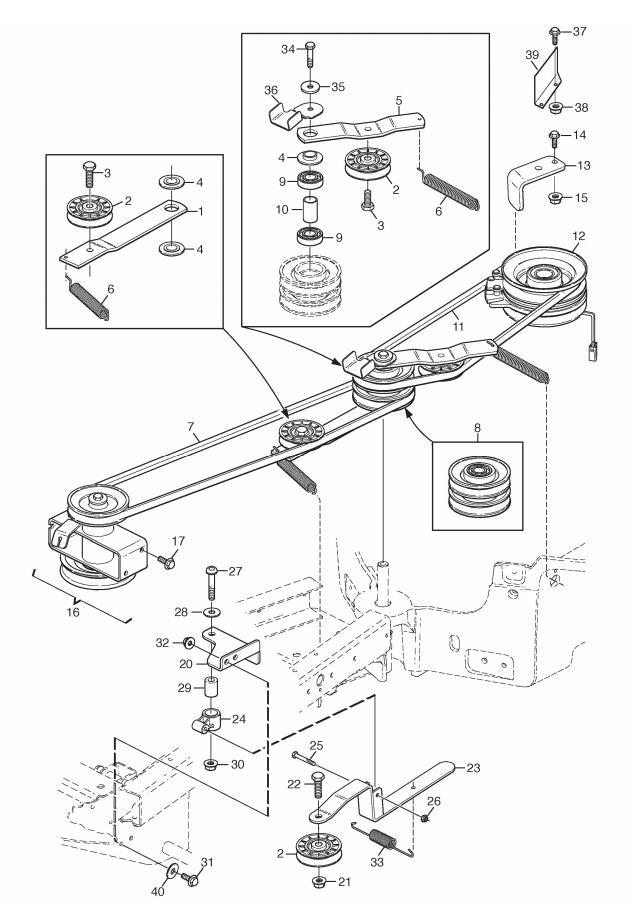

PTO assembly details for Stiga Villa 320 HST 2015 (13-5711-51 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011137-0791-01TENSION WHEEL ARM£17.65 Add to
002387605008/0TENSION PULLEY [GREY]£34.01 Add to
0039959-1025-16SCREW M6SF M10 x 25 TL£2.86 Add to
0041134-5548-01SPACER£13.64 Add to
0051137-0918-01TENSION WHEEL ARM£16.75 Add to
0061134-5824-01SPRING£5.59 Add to
0071134-9167-01PTO DRIVE BELT£31.42 Add to
008387605005/0DOUBLE CENTRE PULLEY ASSEMBLY£82.92 Add to
009119216056/0BEARING£20.63 Add to
0101134-0051-12SPACER£12.46 Add to
0111134-9172-01PTO DRIVE BELT£32.71 Add to
0121137-0863-01MAGNETIC CLUTCH£324.64 Add to
0149959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
016387605006/0DOUBLE IINTERMEDIATE PULLEY£130.13 Add to
0179945-0816-16SCREW M8 X 16£2.42 Add to
0219739-1031-22NUT M10£2.21 Add to
022112794400/0HEX-HEAD SCREW 10 x 35£2.35 Add to
023387318255/0DECK PULLEY TENSION ARM£34.01 Add to
0241134-6314-01TENSION ARM ATTACHMENT£8.57 Add to
025112689500/0SCREW M6 x 40£1.96 Add to
026112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
0279930-1050-12SCREW M10 x 50£2.86 Add to
028112521360/0WASHER M10 10.5 x 20 x 2£1.96 Add to
0291134-4619-01SPACER£8.94 Add to
0309739-1031-22NUT M10£2.21 Add to
0319959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
032112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0331137-1029-01SPRING£3.63 Add to
0341134-7829-01SCREW c/w LOCK£1.96 Add to
0351134-5127-01WASHER£4.30 Add to
0361137-0800-01WASHER£5.33 Add to
0379959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
040112521350/0WASHER M8 8.4 x 16 x 1.6£1.96 Add to
