Electric System

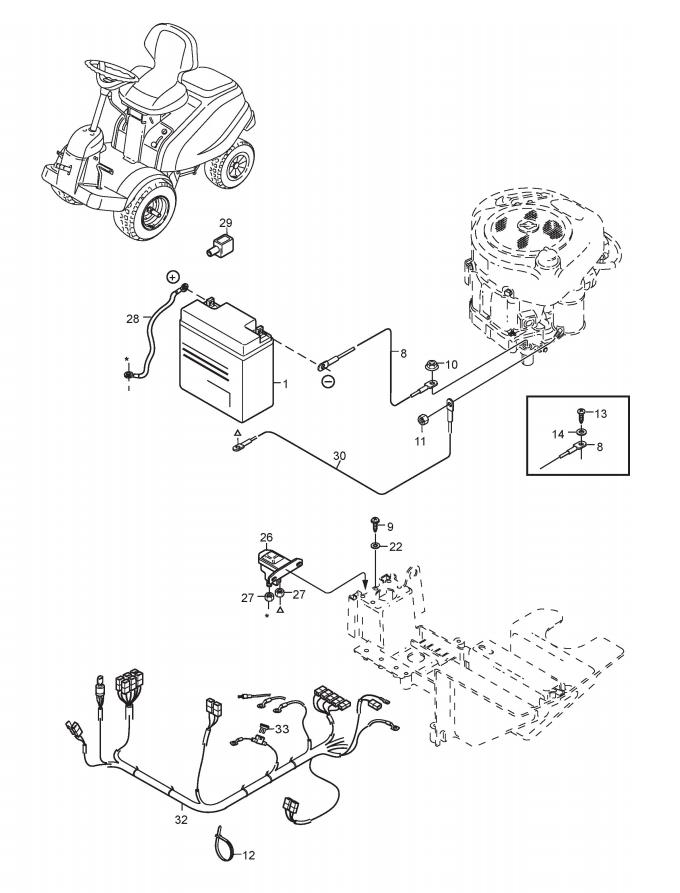

Electric System assembly details for Stiga Villa 13 (13-2717-56) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118120007/0BATTERY 12V 18AH [No Returns on This item]£92.17 Add to
0081134-2042-02BATTERY CABLE L=350mm£24.96 Add to
009112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.76 Add to
010112154220/0SELF-LOCK FLANGED NUT M8£2.76 Add to
011112361005/0HEXAGON NUT 1/4" UNC£3.33 Add to
012133320027/0FASTPOINT BAND ART. 0387.AA01 L=290£2.76 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
022112523040/0WASHER M6 6.6 x 18 x 1.6£2.76 Add to
026118736112/0SOLENOID£36.00 Add to
0279743-5121-32LOCK NUT 5/16"£2.52 Add to
0281134-0234-02BATTERY CABLE (+)£22.92 Add to
0291134-2310-01GUARD CAP (+)£9.12 Add to
0301134-4702-02CABLE L=495£22.92 Add to
0321134-3496-06FUSE 20A£2.52 Add to
032A187040303/0HARNESS VILLA GEAR£97.20 Add to
