Roll Over Protective Structure(ROPS)

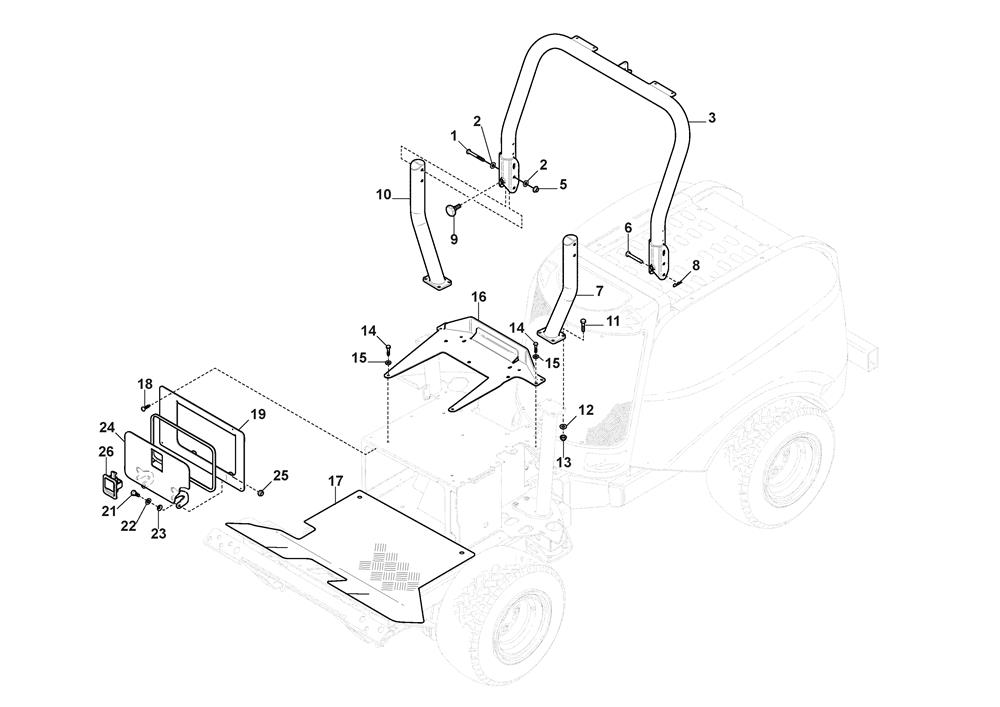

Roll Over Protective Structure(ROPS) assembly details for Stiga TITAN 740 D 2015 (13-7460-11) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9939-1213-02	SCREW	£3.69	Add to
002	122671661/0	WASHER ZINCED 12.4 x 20 x 1	£1.79	Add to
003	1137-0583-01	UPPER TUBE-ROPS	£920.09	Add to
005	112156603/0	SELF-LOCKING NUT M12	£2.06	Add to
006	1134-7565-01	CLEVIS PIN	£62.97	Add to
007	1137-0586-01	BRACKET L/H-ROPS	£381.83	Add to
008	124487998/0	R CLIP D=2	£2.06	Add to
009	1134-7561-01	LOCKING KNOB	£12.14	Add to
010	1137-0585-01	BRACKET R/H-ROPS	£381.83	Add to
011	9939-1030-16	SCREW	£2.06	Add to
012	112521360/0	WASHER M10 10.5 x 20 x 2	£2.06	Add to
013	112156602/0	LOW SELF-LOCKING NUT M10	£1.79	Add to
014	112794900/0	HEX-HEAD SCREW M10 x 50	£2.06	Add to
014A	9959-1025-16	SCREW M6SF M10 x 25 TL	£3.00	Add to
015	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
016	1137-0696-01	REINFORCEMENT PLATE	£88.85	Add to
017	1135-2527-02	FLOOR MAT	£100.44	Add to
018	112728440/0	SELF-TAPPING SCREW 4.8 x 13	£1.79	Add to
021	1134-0240-01	SCREW	£9.82	Add to
022	1134-4242-01	SPACER WASHER	£4.78	Add to
023	9665-0002-00	BOWL WASHER	£2.61	Add to
025	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
026	1137-0730-01	DOOR LATCH	£72.57	Add to
