Frame

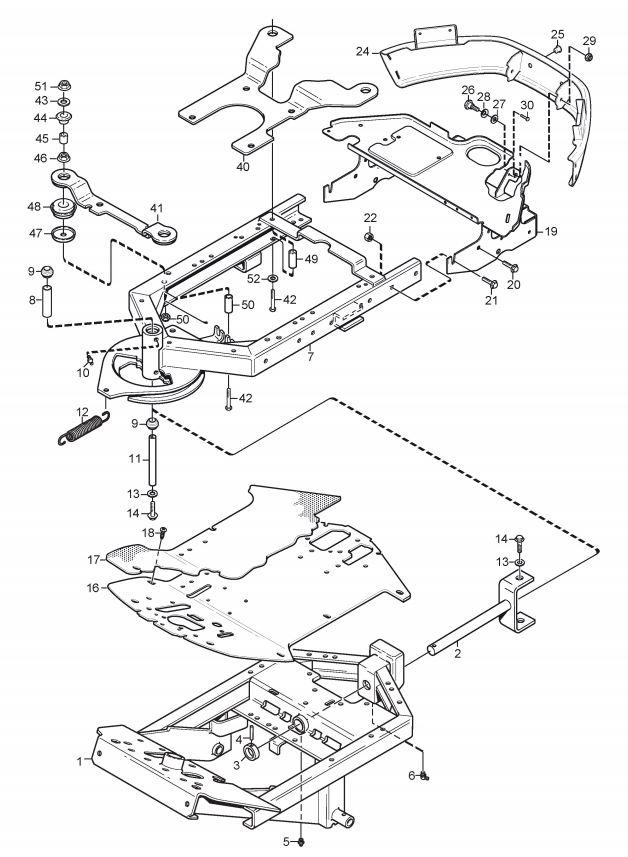

Frame assembly details for Stiga PARK 520 DP 2015 (13-6318-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387800011/0FRONT FRAME ASSEMBLY [2WD]£811.06 Add to
0021137-1119-02CLEVIS FORK£170.61 Add to
0031134-0031-00PIVOT SHAFT STOP£24.95 Add to
0049595-0262-00LOCATING PIN£2.06 Add to
005112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0069501-0504-01GREASE NIPPLE M6£3.69 Add to
0071134-6046-01REAR FRAME (DIESEL)£582.84 Add to
0081134-5705-01SPACER£19.36 Add to
0099547-0001-00BEARING£24.95 Add to
010112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0111134-5988-01CENTRE SHAFT£22.76 Add to
0121134-2171-01SPRING£20.53 Add to
013112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0149959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0161134-6586-01FLOOR PLATE£170.61 Add to
017114369182/3SAFETY FLOOR MAT£64.32 Add to
017114369182/3SAFETY FLOOR MAT£64.32 Add to
0189893-0616-16SCREW M6 x 16£2.47 Add to
0191134-5944-01TANK SHELF ASSEMBLY£279.64 Add to
0209945-0816-16SCREW M8 X 16£2.54 Add to
0219959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0241134-5676-01REAR BUMPER£245.56 Add to
0251134-4100-01PLUG£4.78 Add to
0261134-0240-00SCREW£9.14 Add to
0271134-4242-01SPACER WASHER£4.78 Add to
0289665-0002-00BOWL WASHER£2.61 Add to
029112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
030112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
040387547037/0ENGINE BRACKET£138.20 Add to
041387785261/0FRONT ENGINE SUPPORT£95.67 Add to
0429997-1011-06SCREW M6S M10 x 110£11.32 Add to
0439699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
044322672201/0RUBBER GROMMET£6.27 Add to
0451134-4919-01SPACER£9.54 Add to
0469739-1031-22NUT M10£2.32 Add to
0471134-4915-01SUPPORT CUP£12.27 Add to
0481134-4920-01VIBRATION DAMPER£37.08 Add to
0491134-0041-03BUSH£11.59 Add to
0501134-6887-01COLLAR£9.28 Add to
0519731-1031-22LOCK NUT M6MF M10£2.47 Add to
0529699-0030-02WASHER (10 X 26 X 2)£2.14 Add to
