Body Work (1)

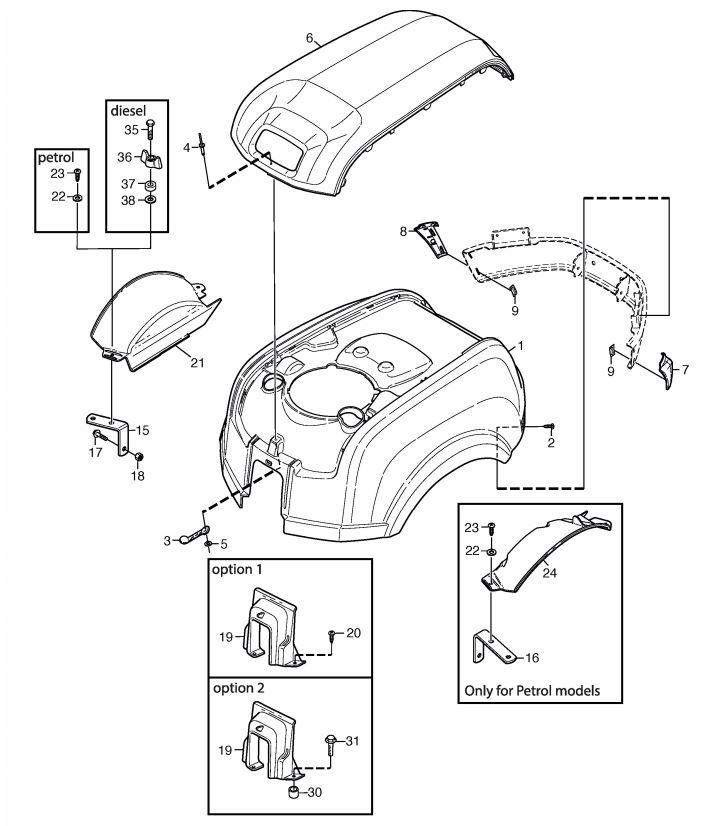

Body Work (1) assembly details for Stiga PARK 520 DP 2015 (13-6318-31) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-6025-01ENGINE HOOD [YELLOW]£330.25 Add to
0029893-0616-16SCREW M6 x 16£2.35 Add to
0031134-9028-01RUBBER STRAP (3 PCS)£25.20 Add to
0049632-0513-00POP RIVET 3.2 x 20£1.96 Add to
0059699-0120-02WASHER 3.2 x 14 x 1.5£2.21 Add to
0061134-6026-01ENGINE COVER [GREY]£84.62 Add to
0071134-6027-01BUMPER END-LH£15.60 Add to
0081134-6027-02BUMPER END-RH£15.06 Add to
0091134-6310-01CLIP£2.21 Add to
0151134-4012-03RIGHT BRACKET£17.92 Add to
0179959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
018112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0209893-0616-16SCREW M6 x 16£2.35 Add to
0211134-4800-01INNER MUDGUARD-RH (PARK)£114.39 Add to
035112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£1.96 Add to
0361134-4481-02WING NUT£5.85 Add to
037125160012/0SPACER£1.96 Add to
038112523040/0WASHER M6 6.6 x 18 x 1.6£1.96 Add to
