Transmission

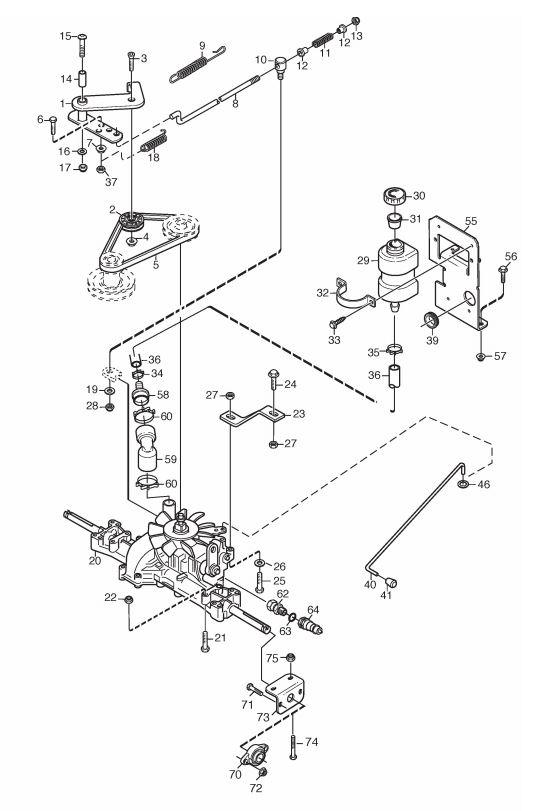

Transmission assembly details for Stiga PARK 420 P 2015 (13-6320-11) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387205001/0TENSION ARM ASSEMBLY£44.39 Add to
002387605012/0TENSION PULLEY£56.84 Add to
0039924-1035-16SCREW MF6S M10 x 35£5.97 Add to
004112295200/0HEXAGON NUT M10£1.70 Add to
0051134-9058-01TRANSMISSION BELT£21.94 Add to
0051134-9058-01TRANSMISSION BELT£21.94 Add to
006112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£1.96 Add to
007112292102/0FLANGED HEXAGONAL NUT M6£1.96 Add to
0081134-3377-02CONTROL ROD£16.10 Add to
0094231-0013-00SPRING£8.45 Add to
0101134-4171-01PIVOT PIN£16.62 Add to
0111134-4183-01COMPRESSION SPRING£8.31 Add to
0121134-3456-01BUSH£5.85 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
0141134-1565-08SPACER£9.47 Add to
0159930-0870-12SCREW M8 x 70£2.04 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£1.96 Add to
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
017112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0181134-6414-01SPRING£5.46 Add to
019112523040/0WASHER M6 6.6 x 18 x 1.6£1.96 Add to
0201137-0126-01TRANSAXLE K57V£1,109.89 Add to
0219960-0860-12SCREW M8 x 60£2.21 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0231134-3913-01STRUT BRACKET£16.75 Add to
0249959-0825-16SCREW FLANGED TE M6SF M8 x 25£1.96 Add to
025112691200/0HEX-HEAD SCREW M8 x 45£1.96 Add to
0269699-0090-02WASHER 8.4 x 18 x 1.5£2.21 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
028112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
0291134-2765-02OIL TANK£43.10 Add to
0301134-2777-02OIL TANK CAP£15.98 Add to
0311134-3734-01VENT PLUG£10.65 Add to
0321134-2778-01BAND£13.50 Add to
0339852-8013-16SCREW£2.35 Add to
0359578-0023-04HOSE CLAMP£5.07 Add to
035A9578-0036-01HOSE CLAMP£3.25 Add to
0361134-2779-03TUBE£34.01 Add to
037112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£1.96 Add to
0391134-3203-01GROMMET£5.33 Add to
0401134-4015-01PULL ROD£11.04 Add to
0411134-4014-01KNOB£4.94 Add to
046112604896/0STARLOCK WASHER D=6£1.96 Add to
0551134-5941-01TANK BRACKET£43.71 Add to
0569959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£1.96 Add to
057112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0581134-6051-01HOSE NIPPLE£18.05 Add to
0591134-6050-01ELBOW£20.63 Add to
0609578-0023-06HOSE CLAMP£5.19 Add to
0621134-7245-01HYDRAULIC COUPLING-STRAIGHT£11.04 Add to
0631134-4948-01SEAL WASHER 1/4"£2.47 Add to
0641134-6042-01QUICK COUPLING-MALE 1/4"£30.55 Add to
0701137-1122-01FLANGE BEARING UNIT£63.86 Add to
071112793301/0HEX-HEAD SCREW M8 x 25£1.96 Add to
072112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
0731137-1123-01BEARING BRACKET£20.64 Add to
0749960-0860-12SCREW M8 x 60£2.21 Add to
075112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£1.96 Add to
