Power Take-off

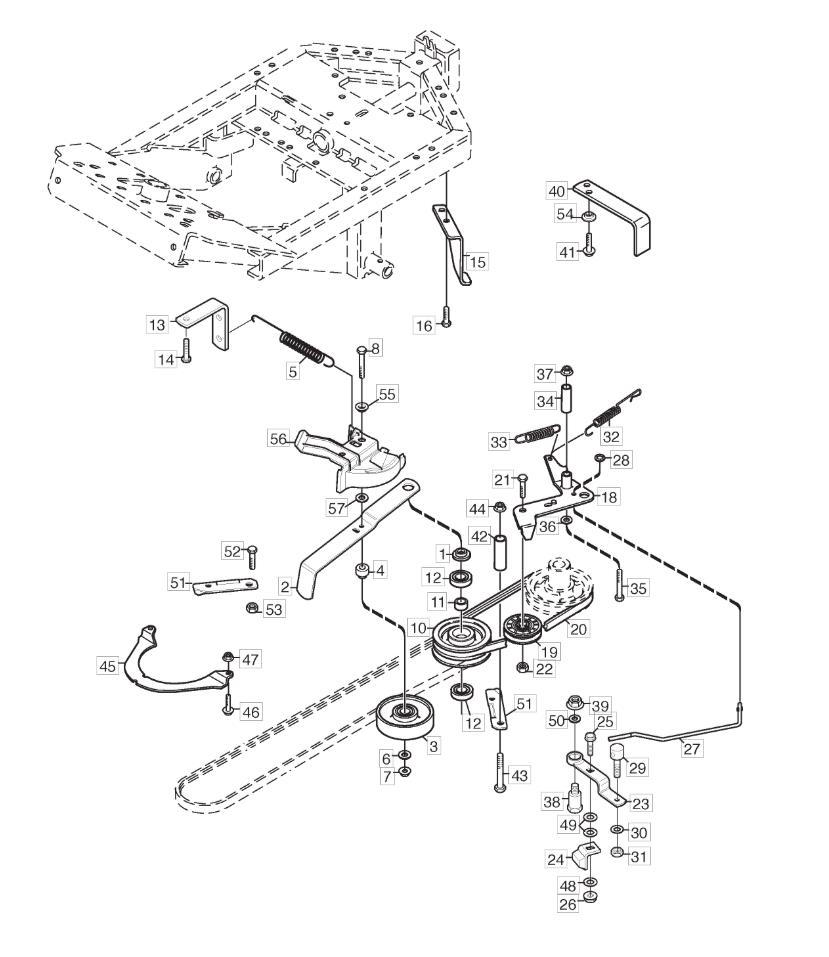

Power Take-off assembly details for Stiga PARK 320 MW (2F6120620/S15) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0011134-5548-01SPACER£14.32 Add to
0021137-1124-01TENSION WHEEL ARM£83.40 Add to
003387605007/0TENSION ROLLER PULLEY£56.84 Add to
0041134-1888-04SPACER£9.41 Add to
0051134-5111-01SPRING£18.53 Add to
006112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
010387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
0111134-0051-09SPACER£14.05 Add to
012119216056/0BEARING£21.66 Add to
0131134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
0149945-0816-16SCREW M8 X 16£2.54 Add to
0151134-5110-02HOOK PLATE£40.30 Add to
0169893-0616-16SCREW M6 x 16£2.47 Add to
0181134-2018-02TENSION ARM£39.29 Add to
019387605008/0TENSION PULLEY [GREY]£35.71 Add to
0201134-9173-01PTO DRIVE BELT [KEVLAR]£31.63 Add to
021112794300/0SCREW TE M10 x 30£1.91 Add to
022112295200/0HEXAGON NUT M10£1.79 Add to
023387318251/0BRAKE ARM£32.99 Add to
0241134-4164-03BRAKE PAD£32.99 Add to
025112818700/0SCREW M8 x 25£2.81 Add to
026112818700/0SCREW M8 x 25£2.81 Add to
027137033100/0BRAKE ROD£22.63 Add to
028112604897/0STARLOCK WASHER D=5£2.06 Add to
0291134-4170-01PIVOT BOLT£14.32 Add to
030112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
031112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0324231-0013-00SPRING£8.87 Add to
0331135-3307-01BRAKE SPRING£23.72 Add to
0341134-1565-10SPACER£8.73 Add to
035112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
036112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
037112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0381134-4163-02SHOULDER BOLT£8.87 Add to
0399739-1031-22NUT M10£2.32 Add to
0401134-3958-01BELT GUIDE£17.45 Add to
0419893-0616-16SCREW M6 x 16£2.47 Add to
0421134-0041-03BUSH£11.59 Add to
043112794950/0SCREW M10 x 80£4.11 Add to
0449739-1031-22NUT M10£2.32 Add to
0451134-3654-01GUARD£35.71 Add to
0469959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
047112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0489699-0090-02WASHER 8.4 x 18 x 1.5£2.32 Add to
049112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
050112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
051337546547/0PLATE£5.64 Add to
052112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
053112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
054325160039/0SPACER£2.06 Add to
055122041980/0SPACER ROLLER BUSH£2.06 Add to
056337600000/1PULLEY PROTECTION GUARD£7.73 Add to
057112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
