Body Work

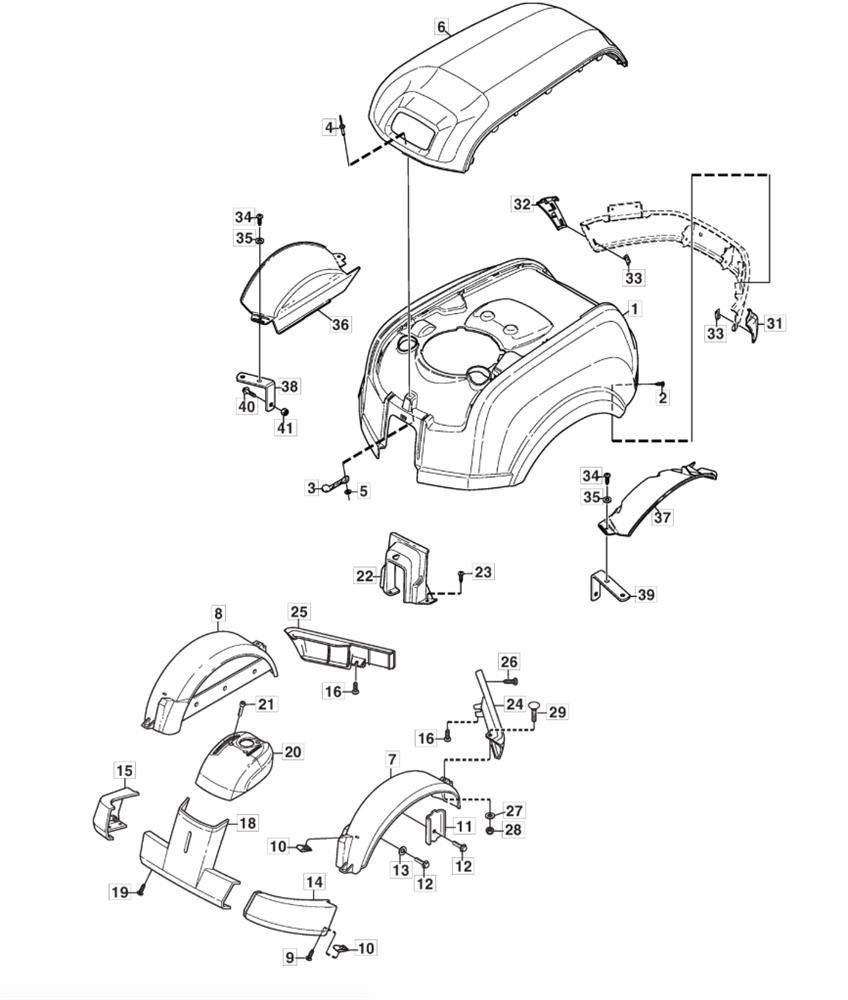

Body Work assembly details for Stiga PARK 320 MW (2F6120620/S15) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6025-01	ENGINE HOOD [YELLOW]	£346.76	Add to
002	9893-0616-16	SCREW M6 x 16	£2.47	Add to
003	1134-9028-01	RUBBER STRAP (3 PCS)	£26.46	Add to
004	9632-0513-00	POP RIVET 3.2 x 20	£2.06	Add to
005	9699-0120-02	WASHER 3.2 x 14 x 1.5	£2.32	Add to
006	1134-6026-01	ENGINE COVER [GREY]	£88.85	Add to
007	1134-5308-01	MUDGUARD LH [GREY]	£94.31	Add to
008	1134-5308-02	MUDGUARD RH [GREY]	£112.23	Add to
009	9893-0616-16	SCREW M6 x 16	£2.47	Add to
010	1134-4176-01	CLIP	£5.19	Add to
011	1134-0225-00	SUPPORT PLATE	£11.18	Add to
012	9945-0816-16	SCREW M8 X 16	£2.54	Add to
013	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
014	1134-5306-01	FRONT BUMPER LH [GREY]	£24.95	Add to
015	337502505/0	FRONT BUMPER RH [GREY]	£56.15	Add to
016	9893-0616-16	SCREW M6 x 16	£2.47	Add to
018	1134-5305-01	FRONT BUMPER [YELLOW]	£84.77	Add to
019	9893-0616-16	SCREW M6 x 16	£2.47	Add to
020	1134-5320-05	FRONT UPPER COVER [YELLOW]	£41.10	Add to
021	9946-0525-16	SCREW M5 x 25	£2.47	Add to
022	1134-6241-01	HOOD SUPPORT	£42.53	Add to
023	9893-0616-16	SCREW M6 x 16	£2.47	Add to
024	1134-3970-05	LEFT MOULDING [GREY]	£58.87	Add to
025	1134-3970-02	RIGHT MOULDING [GREY]	£58.87	Add to
026	9893-0616-16	SCREW M6 x 16	£2.47	Add to
027	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
028	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
029	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
031	1134-6027-01	BUMPER END-LH	£16.38	Add to
032	1134-6027-02	BUMPER END-RH	£15.81	Add to
033	1134-6310-01	CLIP	£2.32	Add to
034	9893-0616-16	SCREW M6 x 16	£2.47	Add to
035	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
036	1134-4800-01	INNER MUDGUARD-RH (PARK)	£120.11	Add to
037	1134-4801-01	INNER MUDGUARD-LH (PARK)	£120.11	Add to
038	1134-4012-03	RIGHT BRACKET	£18.82	Add to
039	1134-4012-04	LEFT BRACKET	£18.82	Add to
040	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
041	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
