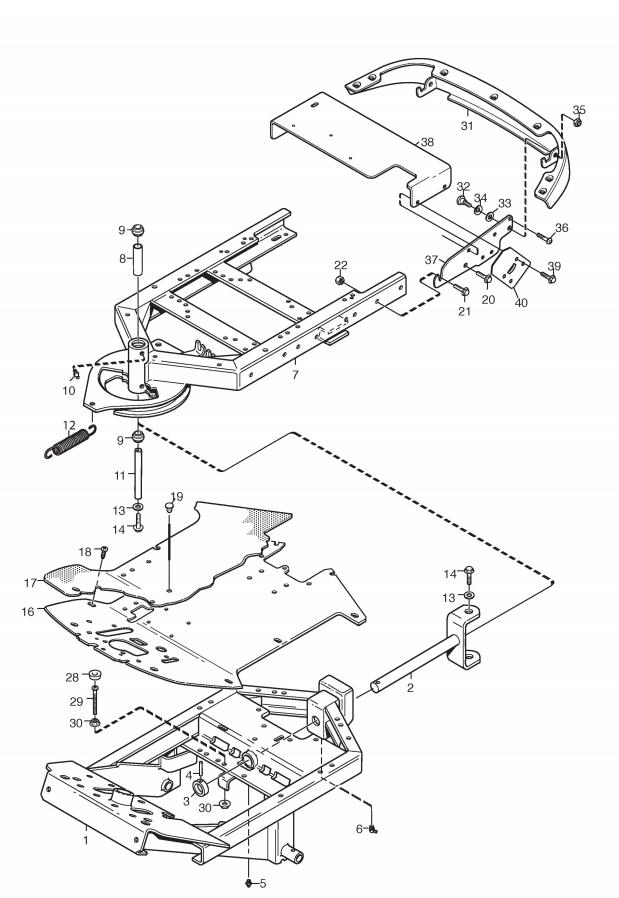

Frame assembly details for Stiga PARK 320 M 2015 (2F6120520/S15) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

001387800011/0FRONT FRAME ASSEMBLY [2WD]£811.06 Add to
0021137-1119-02CLEVIS FORK£170.61 Add to
0031134-0031-00PIVOT SHAFT STOP£24.95 Add to
0049595-0262-00LOCATING PIN£2.06 Add to
005112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0069501-0504-01GREASE NIPPLE M6£3.69 Add to
0071134-6466-02REAR FRAME ASSEMBLY£490.85 Add to
0081134-5705-01SPACER£19.36 Add to
0099547-0001-00BEARING£24.95 Add to
010112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0111134-5988-01CENTRE SHAFT£22.76 Add to
0121134-2171-01SPRING£20.53 Add to
013112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
0149959-1025-16SCREW M6SF M10 x 25 TL£3.00 Add to
0161134-6586-01FLOOR PLATE£170.61 Add to
017114369182/3SAFETY FLOOR MAT£64.32 Add to
0189893-0616-16SCREW M6 x 16£2.47 Add to
0199403-0048-70COVER PLUG£9.68 Add to
0209945-0816-16SCREW M8 X 16£2.54 Add to
0219959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0299950-0570-12SCREW M5 x 70£2.74 Add to
0309739-0531-22NUT M5£2.47 Add to
0311134-5337-02REAR BUMPER [GREY]£211.50 Add to
0321134-0240-00SCREW£9.14 Add to
0331134-4242-01SPACER WASHER£4.78 Add to
0349665-0002-00BOWL WASHER£2.61 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
0399945-0816-16SCREW M8 X 16£2.54 Add to
040337600013/0REAR COVER PLATE£8.70 Add to
