Electrical

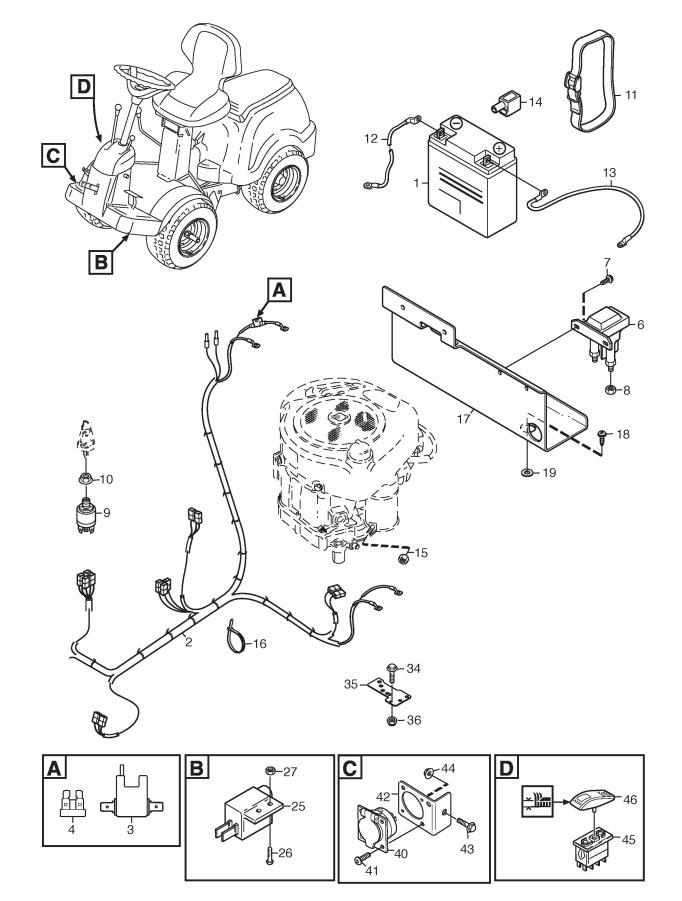

Electrical assembly details for Stiga PARK 320 M 2015 (2F6120520/S15) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
002187040308/0WIRING HARNESS£170.61 Add to
0039400-0327-01FUSE HOLDER c/w FUSE£9.54 Add to
0041134-3496-06FUSE 20A£2.06 Add to
006118736112/0SOLENOID£39.80 Add to
0079852-8013-16SCREW£2.47 Add to
0089743-5121-32LOCK NUT 5/16"£1.79 Add to
0091134-4093-01IGNITION SWITCH£67.05 Add to
0101134-4749-01NUT£5.05 Add to
0111134-5245-01BATTERY STRAP£22.91 Add to
0121134-2167-01CABLE£27.27 Add to
012A1134-2167-02CABLE (-)£20.58 Add to
0131134-0234-02BATTERY CABLE (+)£24.95 Add to
0141134-2310-01GUARD CAP (+)£9.28 Add to
015112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
016133320027/0FASTPOINT BAND ART. 0387.AA01 L=290£2.06 Add to
0171134-5343-01BATTERY BRACKET£68.42 Add to
0189852-8013-16SCREW£2.47 Add to
019112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
0251134-3399-02SWITCH£45.26 Add to
026112789008/0HEX-HEAD SCREW M5 x 20£2.06 Add to
027112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
0349959-0612-16SCREW M6SF M6 x 12 TL£1.79 Add to
0351134-6454-01GROUND PLATE£15.41 Add to
036112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0401137-0075-01ATTACHMENT BRACKET£9.94 Add to
041112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
042387149302/02 POLE FEMALE CONNECTOR£11.33 Add to
0439959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
044112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
0459400-0282-01SWITCH C/W DIODE£76.59 Add to
0469400-0280-03SWITCH COVER-HEIGHT ADJUST£18.27 Add to
