Wheels

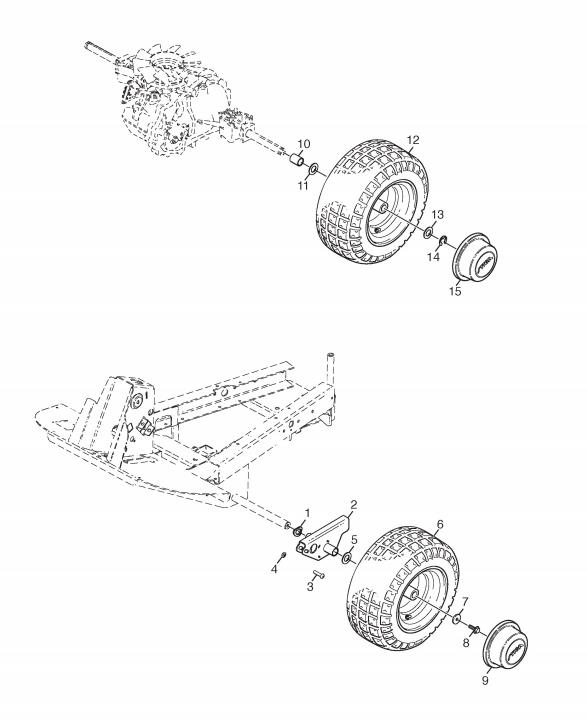

Wheels assembly details for Stiga Villa 520 HST 2014 (13-5721-71) 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	9694-0004-00	SPRING WASHER	£3.64	Add to
002	1137-0762-01	WHEEL BRACKET	£36.56	Add to
003	9646-0098-22	RIVET 8 x 32	£2.87	Add to
004	9672-0006-02	STARLOCK WASHER	£2.32	Add to
005	1134-0341-01	WASHER	£7.10	Add to
006	1137-0934-01	FRONT WHEEL ASSEMBLY	£155.53	Add to
007	1134-5127-01	WASHER	£4.52	Add to
008	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
009	1137-1006-02	HUB CAP	£5.50	Add to
010	1134-4845-02	HUB SLEEVE	£9.00	Add to
011	1134-0341-01	WASHER	£7.10	Add to
012	387680301/0	REAR WHEEL ASSEMBLY 14"	£162.60	Add to
013	1134-4981-01	WASHER	£3.41	Add to
014	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
