Seat

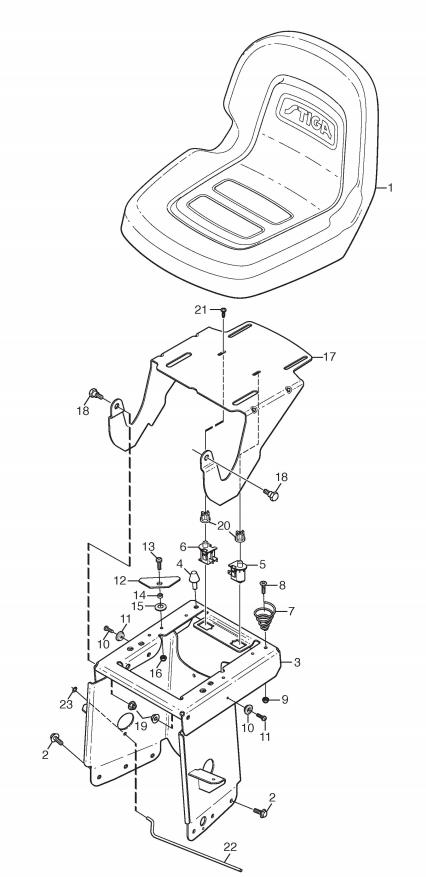

Seat assembly details for Stiga Villa 520 HST 2014 (13-5721-71) 2014 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125722477/0	STIGA SEAT	£227.12	Add to
002	9945-0816-16	SCREW M8 X 16	£2.54	Add to
003	1137-0868-01	BRACKET	£122.79	Add to
004	1134-3134-01	RUBBER SPRING	£12.27	Add to
005	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
006	1134-3156-02	SEAT SWITCH [GREY]	£47.97	Add to
007	1137-1004-01	SPRING	£3.41	Add to
008	9860-0620-16	SCREW	£2.06	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	1134-3144-01	PLASTIC SPACER	£8.60	Add to
011	9852-8013-16	SCREW	£2.47	Add to
012	1137-0862-01	SEAT LOCK	£3.69	Add to
013	9893-0616-16	SCREW M6 x 16	£2.47	Add to
014	1137-0872-01	SPACER	£2.06	Add to
015	9665-0002-00	BOWL WASHER	£2.61	Add to
016	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
017	1137-0867-01	SEAT PLATE	£70.61	Add to
018	1134-0240-01	SCREW	£9.82	Add to
019	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
020	1137-0913-01	BUTTON	£1.79	Add to
021	9893-0616-16	SCREW M6 x 16	£2.47	Add to
022	1137-1033-01	LOOP	£6.27	Add to
023	112604897/0	STARLOCK WASHER D=5	£2.06	Add to
